Siemens SIMATIC S7-1500 Series: Comprehensive Module Range and Technical Overview

The Siemens SIMATIC S7-1500 is the current flagship programmable logic controller platform within Siemens' automation portfolio, positioned as the direct successor to the S7-300 and S7-400 families. Introduced in 2012, the S7-1500 is deployed across the full spectrum of heavy industrial applications: chemical processing plants, nuclear power auxiliary systems, petroleum refinery control loops, automotive body-in-white lines, and large-scale water treatment infrastructure. Its backplane architecture supports up to 32 modules per rack, with deterministic PROFINET IRT communication at cycle times as low as 250 µs. The integrated display on CPU modules provides on-site diagnostics without requiring a programming device, a feature that reduces mean time to repair in remote installations. The S7-1500 is engineered to IEC 61131-3 and supports all five standard PLC programming languages via TIA Portal V13 and above.

The Evolution of S7-1500 Architecture

The S7-1500 platform was formally released in 2012 as a ground-up redesign, not an incremental update. The first-generation CPUs (CPU 1511, CPU 1513, CPU 1515, CPU 1516, CPU 1518) established the core backplane bus standard and the U-connector system that replaced the S7-300's rail-and-bus-connector approach. Firmware version V1.x introduced basic PROFINET IO controller functionality. V2.x (circa 2016) added OPC UA server capability natively in the CPU, eliminating the need for a separate OPC gateway in many architectures. V2.6 and later introduced Motion Control with up to 128 axes on the CPU 1518 without an additional technology module. The T-CPU variants (CPU 1511T, 1515T, 1516T, 1518T) added integrated cam, measuring input, and kinematics functions. The F-CPU variants (CPU 1511F, 1513F, 1515F, 1516F, 1518F) are certified to IEC 62061 SIL 3 and EN ISO 13849-1 PL e for safety-integrated applications. The compact C-CPU variants (CPU 1511C, 1512C) integrate digital and analog I/O directly on the CPU body, targeting space-constrained panel installations. The ET 200SP CPU sub-family (CPU 1510SP, CPU 1512SP) uses the ET 200SP BaseUnit mounting system, enabling distributed controller placement without a central rack. The 6ES7510-1SJ01-0AB0 belongs to this ET 200SP CPU sub-family — a compact, rack-free CPU designed for distributed control nodes. Compatibility across firmware generations requires TIA Portal version alignment; V1.x projects cannot be opened in TIA Portal V17+ without migration. Backplane bus modules (BusAdapter BA 2×RJ45, BA 2×FC, BA 2×M12) determine the physical PROFINET port type and must be specified separately for ET 200SP CPUs.

S7-1500 Full Catalog & Functionalities (SKU List)

CPU Modules — Standard

• 6ES7511-1AK02-0AB0: CPU 1511-1 PN, 150 KB work memory, 1x PROFINET port
• 6ES7513-1AL02-0AB0: CPU 1513-1 PN, 300 KB work memory, 1x PROFINET port
• 6ES7515-2AM02-0AB0: CPU 1515-2 PN, 500 KB work memory, 2x PROFINET ports
• 6ES7516-3AN02-0AB0: CPU 1516-3 PN/DP, 1 MB work memory, PROFINET + MPI/DP
• 6ES7518-4AP00-0AB0: CPU 1518-4 PN/DP, 4 MB work memory, 4x PROFINET ports

CPU Modules — ET 200SP Compact (Distributed)

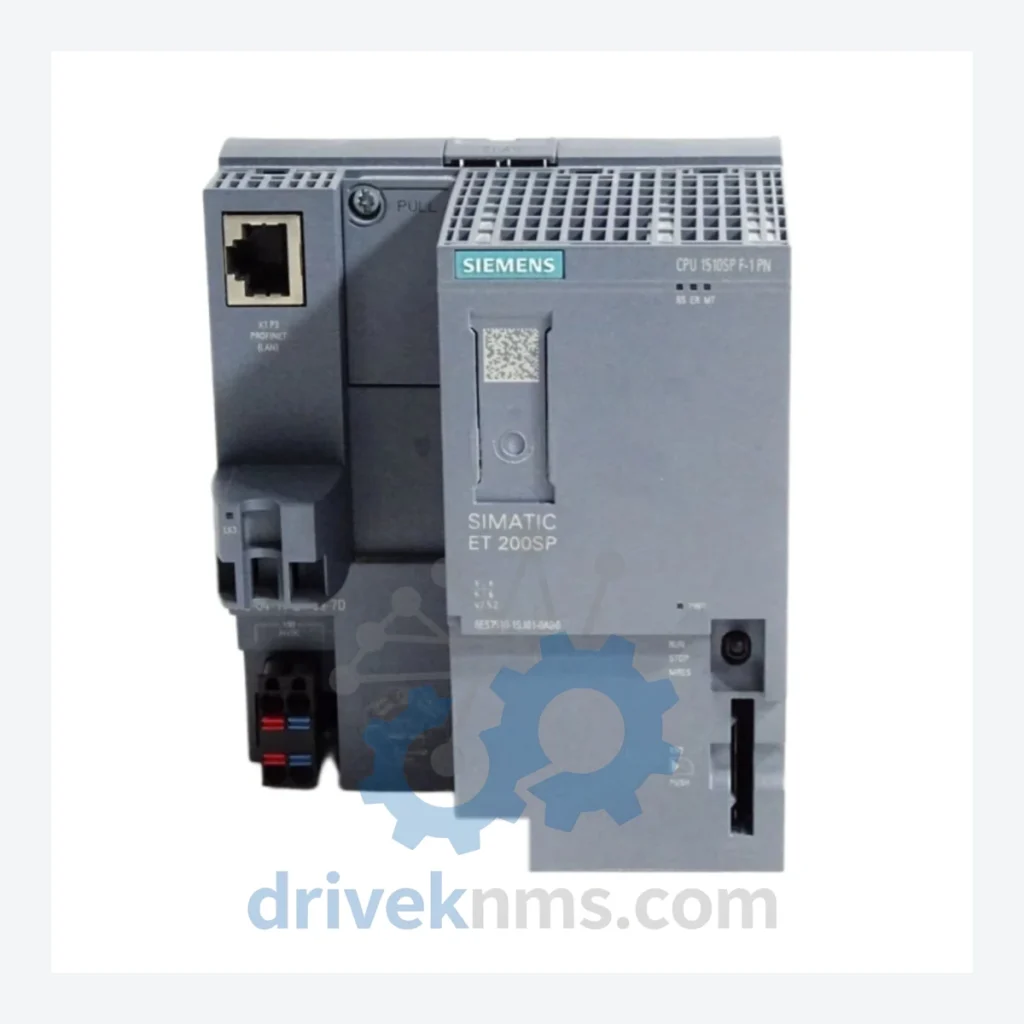

• 6ES7510-1SJ01-0AB0: CPU 1510SP-1 PN, 100 KB work memory, ET 200SP form factor, 1x PROFINET
• 6ES7512-1SK01-0AB0: CPU 1512SP-1 PN, 200 KB work memory, ET 200SP form factor, 1x PROFINET

CPU Modules — Safety (F-CPU)

• 6ES7511-1FK02-0AB0: CPU 1511F-1 PN, SIL 3 / PL e certified, 175 KB work memory
• 6ES7516-3FN02-0AB0: CPU 1516F-3 PN/DP, SIL 3 / PL e, 1 MB work memory

Digital Input Modules (DI)

• 6ES7521-1BH00-0AB0: DI 16x24VDC HF, 16-channel, 0.05 ms input delay
• 6ES7521-1BL00-0AB0: DI 32x24VDC HF, 32-channel high-frequency digital input

Digital Output Modules (DQ)

• 6ES7522-1BH01-0AB0: DQ 16x24VDC/0.5A HF, 16-channel transistor output
• 6ES7522-1BL01-0AB0: DQ 32x24VDC/0.5A HF, 32-channel transistor output

Analog Input Modules (AI)

• 6ES7531-7KF00-0AB0: AI 8xU/I/RTD/TC ST, 8-channel universal analog input, 16-bit
• 6ES7531-7NF10-0AB0: AI 8xU/I HS, 8-channel high-speed analog input, 16-bit

Analog Output Modules (AQ)

• 6ES7532-5HF00-0AB0: AQ 8xU/I HS, 8-channel high-speed analog output, 16-bit

Communication Modules (CM / CP)

• 6GK7543-1AX00-0XE0: CP 1543-1, Industrial Ethernet CP, supports HTTPS, FTP, S7 routing
• 6ES7541-1AB00-0AB0: CM PtP RS422/485 HF, point-to-point serial communication module

Power Supply Modules (PS)

• 6EP1333-4BA00: PS 60W 24/48/60VDC, system power supply for S7-1500 rack
• 6EP1336-3BA00: PS 25W 24VDC, load power supply module

Sourcing Hard-to-Find & Obsolete S7-1500 Parts

DriveKNMS maintains a dedicated inventory program for the SIMATIC S7-1500 series, including modules that have reached end-of-sale status with Siemens. While the S7-1500 platform remains in active production as of 2026, specific early-generation CPU firmware variants, first-revision I/O modules (identified by the -0AB0 suffix on V1.x hardware), and discontinued communication processors are no longer available through standard distribution channels. DriveKNMS sources these components through certified secondary market channels, with full traceability documentation. For installed-base customers operating S7-1500 systems commissioned before 2016 — particularly those running TIA Portal V13 or V14 projects that cannot be migrated without engineering risk — DriveKNMS provides like-for-like hardware replacement without requiring a firmware or software upgrade. Customers requiring long-term maintenance agreements for S7-1500 installations in nuclear auxiliary systems or chemical plant DCS architectures are advised to contact DriveKNMS to discuss multi-year spare parts reservation contracts.

Quality Control for the S7-1500 Range

All S7-1500 modules processed by DriveKNMS undergo a structured verification protocol prior to dispatch. CPU modules are powered and booted to confirm firmware version readability and absence of hardware fault codes on the integrated display. PROFINET port integrity is verified using a dedicated PROFINET tester to confirm autonegotiation and frame transmission at 100 Mbit/s. Backplane bus connectors — the U-connector system used across the S7-1500 rack — are inspected under magnification for pin deformation, oxidation, and mechanical wear, as connector damage is the primary failure mode for modules removed from operational racks. Analog I/O modules are bench-tested against calibrated signal sources to verify channel accuracy within the published ±0.1% specification. Safety-rated F-CPU modules are tested for safe state output behavior and F-address integrity. All modules are shipped in anti-static packaging with individual test records included.
