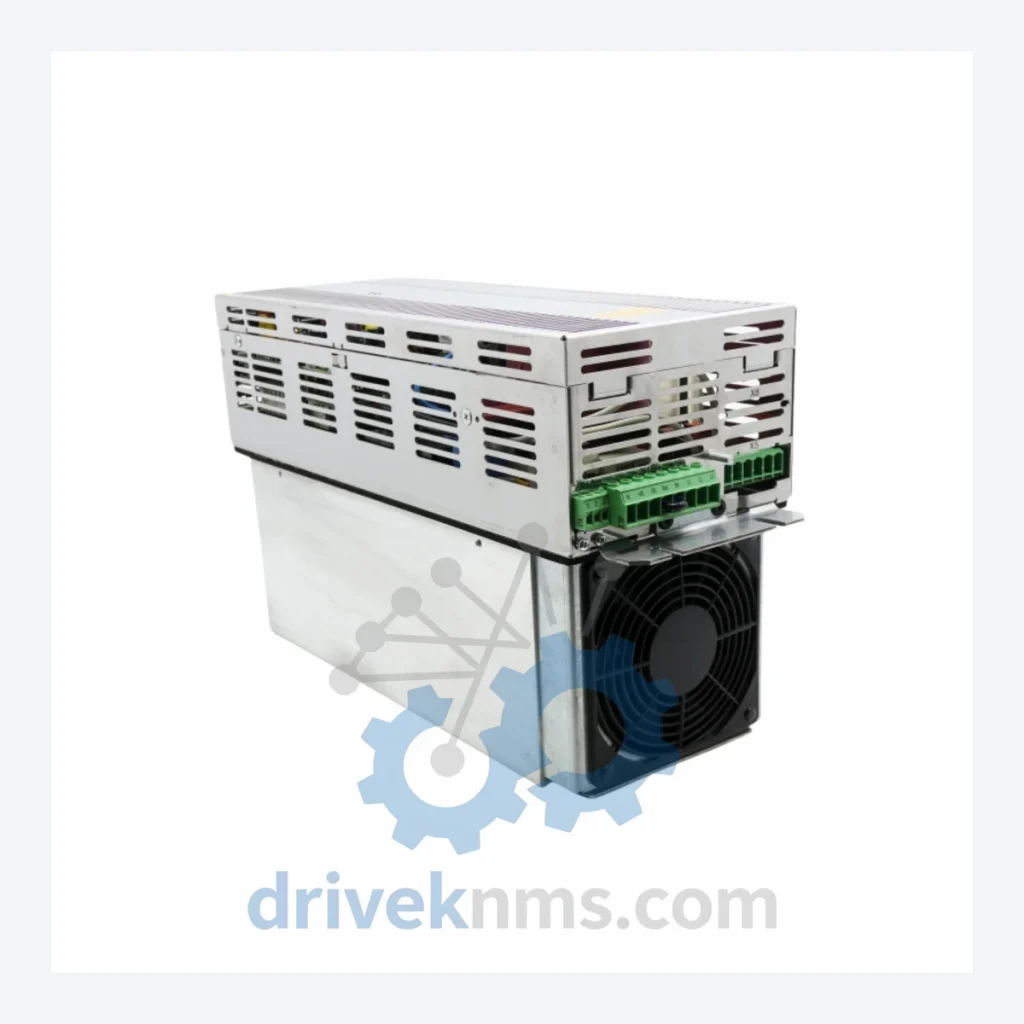

SIGMATEK SDD120 09-501-201-2 Servo Drive – Obsolete SDD Series Spare Part

Technical Dossier

Product Details And Specifications

SIGMATEK SDD120 09-501-201-2 Servo Drive – Obsolete SDD Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

SIGMATEK's DIAS platform was engineered as a tightly integrated ecosystem. The SDD120 servo drive communicates with the DIAS controller over a proprietary backplane bus; it is not a generic drive that can be substituted with an off-the-shelf unit from another manufacturer without significant software and hardware modification. For factories that built their motion sequences, cam profiles, and safety logic around SIGMATEK's programming environment, the SDD120 is not interchangeable — it is a structural dependency.

How to extend your SIGMATEK DIAS system life by 5–10 years without a full migration:

For plant managers facing pressure to justify continued operation of legacy automation rather than capital expenditure on a new system, the arithmetic is straightforward: a verified SDD120 spare at current secondary market pricing protects an asset that may represent $2–10 million in installed value. The maintenance strategy is not a workaround — it is sound asset management.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all obsolete servo drive units before they are offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, and label verification against the declared part number (09-501-201-2).
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in drives that have been in storage or light service for extended periods. Each unit is evaluated for capacitor condition; units showing measurable ESR degradation are not offered as operational spares.
3. Firmware version verification: Where accessible, the firmware revision is recorded and disclosed to the buyer. Compatibility with the target DIAS controller version is the buyer's responsibility to confirm, and DriveKNMS will provide all available version data to support that assessment.
4. Pin and connector corrosion check: Backplane connector pins and any external interface connectors are inspected under magnification for oxidation, mechanical deformation, or contamination.
5. Functional power-on test (where applicable): Units that can be safely energized in isolation are powered on and checked for basic initialization behavior. Results are documented and provided with the unit.
