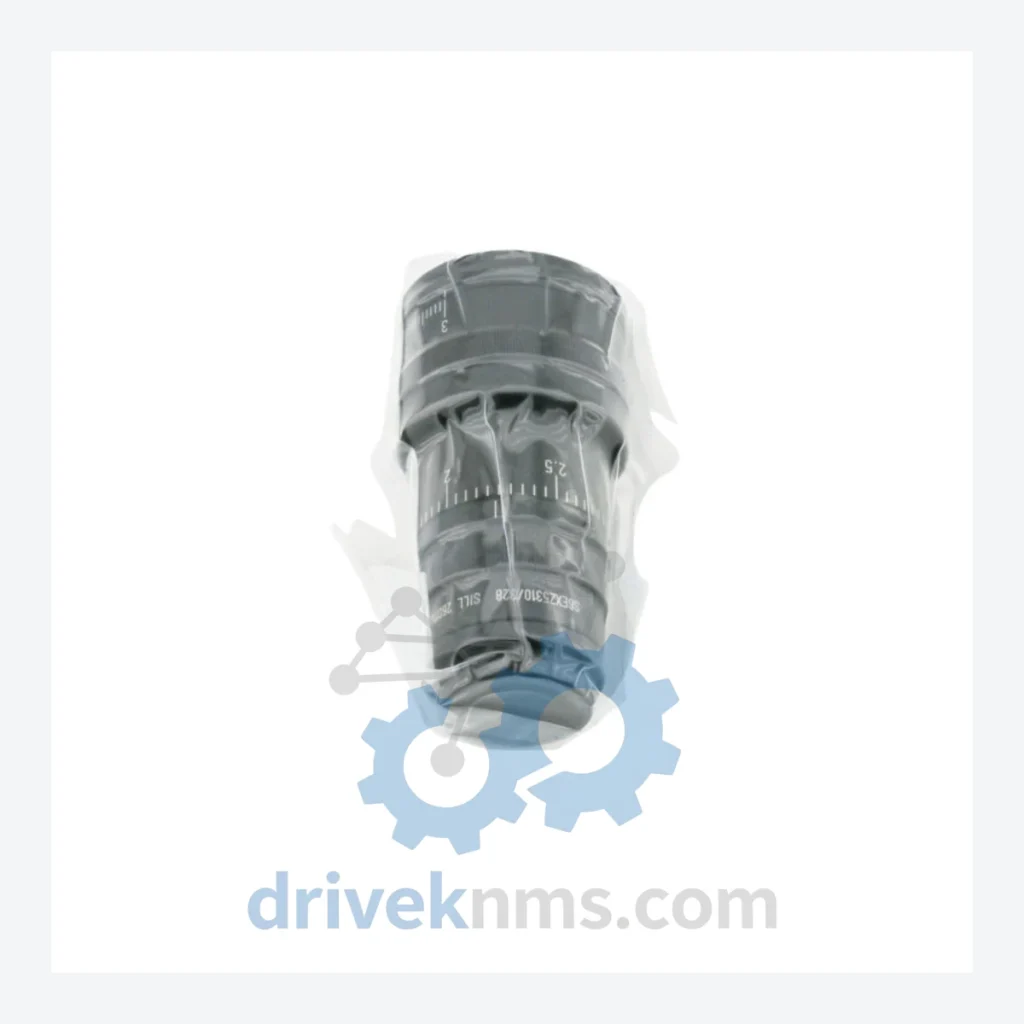

SILL OPTICS 1064NM 1-3X S6EXZ5310/328 4022.484.0039/1 10K 0100-71134 Beam Expander – Obsolete S6EXZ Series Spare Part

When a precision laser optic fails inside a production line, the clock starts immediately. For facilities running legacy Nd:YAG or fiber laser systems built around SILL OPTICS beam expanders, the discontinuation of the S6EXZ series creates a sourcing crisis that standard distributors cannot resolve. A single unplanned line stoppage in a laser marking, cutting, or welding cell can cost tens of thousands of dollars per hour. A forced system upgrade — driven solely by one unavailable optical component — routinely runs into the hundreds of thousands, including re-qualification, re-programming, and downtime. DriveKNMS holds verified stock of this exact unit. This is not a substitute. This is the original part.

Technical Specifications

Note: Electrical and optical parameters listed above are sourced from part markings and known series documentation. Parameters not confirmed by physical inspection are not listed. Do not substitute based on partial specification match.

Solving the Discontinued Hardware Crisis

The SILL OPTICS S6EXZ series variable beam expanders were engineered for high-power industrial laser applications — laser welding cells, precision marking stations, and cutting systems operating at 1064 nm. These units were designed to integrate directly into OEM laser heads and beam delivery assemblies from manufacturers including TRUMPF, Rofin, and Coherent-era platforms. The mechanical and optical interface of the S6EXZ5310/328 is specific: thread pitch, clear aperture, and anti-reflection coating are matched to the host system. There is no universal drop-in replacement from current production catalogs.

Facilities that have operated these laser systems for 10 to 20 years have accumulated significant embedded value — in machine calibration data, operator training, process qualification records, and production tooling built around the laser's spot characteristics. Replacing the beam expander with a non-identical unit forces re-qualification of the entire laser process. In regulated industries such as aerospace component marking or medical device manufacturing, that re-qualification carries validation costs that dwarf the price of sourcing the original part.

The practical strategy for plant engineering teams is straightforward: identify the critical optical and mechanical components in your laser system that are no longer in active production, source verified spares now while they remain available in the secondary market, and hold them as insurance against unplanned failure. A single spare beam expander stored correctly extends the operational life of a laser cell by years — at a fraction of the cost of system replacement.

Extending Laser System Life by 5–10 Years: A Low-Cost Maintenance Strategy

For factory management facing pressure to retire aging laser assets, the financial case for targeted spare parts investment is direct. A variable beam expander such as the S6EXZ5310/328 is not a consumable — it does not degrade under normal operating conditions unless subjected to contamination, mechanical shock, or coating damage from beam misalignment. Facilities that implement the following practices routinely extend laser system service life by five to ten years without capital expenditure on new equipment:

• Critical optics audit: Map every optical component in the beam path. Identify which are no longer in active production. Prioritize sourcing based on lead time risk and replacement cost.
• Controlled spare storage: Precision optics require dry, temperature-stable storage away from vibration. Nitrogen-purged sealed containers are standard practice for long-term optical spare preservation.
• Scheduled inspection cycles: Even stored optics benefit from periodic inspection for coating delamination or seal degradation. A 12-month inspection interval is standard for high-value spares.
• Supplier relationship with secondary market specialists: OEM channels for discontinued parts close permanently. Establishing a relationship with a verified secondary market supplier — before a failure event — eliminates the sourcing delay that causes extended downtime.
• Documentation of installed part genealogy: Maintain records of serial numbers, installation dates, and cumulative operating hours for all critical optical components. This data supports both maintenance planning and insurance claims in the event of catastrophic failure.

The cost of one beam expander sourced today is measured in thousands. The cost of a laser cell standing idle for three weeks while engineering searches for an unavailable part is measured differently.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all discontinued optical and electro-mechanical components before shipment:

1. Visual and mechanical inspection: External housing, thread condition, and aperture surfaces are examined under magnification. Units with coating damage, thread deformation, or contamination are rejected.
2. Anti-reflection coating verification: Coating integrity at 1064 nm is assessed. Degraded coatings cause power loss and back-reflection risk in high-power applications.
3. Seal and internal contamination check: Internal optical surfaces are inspected for particulate contamination, fungal growth, or moisture ingress — common failure modes in long-stored optics.
4. Mechanical function test: For variable beam expanders, the zoom mechanism is cycled through full range to verify smooth, backlash-free operation with no binding.
5. Documentation and traceability: Each unit is logged with inspection date, inspector record, and condition grade before packaging. Shipment includes inspection report.

Key Features for System Maintenance

• Drop-in replacement: Identical mechanical interface to the original installed unit — no modification to the laser head or beam delivery assembly required.
• No re-programming required: Optical characteristics match the original specification. Existing process parameters, focus settings, and beam quality records remain valid.
• Avoids engineering re-qualification: Substituting a non-identical optic triggers process re-validation. Using the original part number eliminates this cost entirely.
• Preserves existing process certification: In regulated manufacturing environments, maintaining the original optical configuration protects existing process qualification status.
• Immediate dispatch: Stock on hand. No lead time from OEM. No minimum order quantity.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty covering defects identified during incoming inspection that were not disclosed at time of sale. Warranty covers replacement or refund. It does not cover damage resulting from installation error or operation outside specified parameters.

How do I confirm this is a genuine SILL OPTICS unit and not a counterfeit?
All units sourced by DriveKNMS are verified against known part markings, housing geometry, and coating characteristics. We do not sell relabeled or counterfeit components. Inspection documentation is provided with each shipment. If you require additional authentication, we can arrange third-party optical testing prior to shipment.

Should I buy more than one unit as a long-term reserve?
For laser systems where this beam expander is a single point of failure, holding a minimum of one spare unit is standard risk management practice. For high-utilization systems or facilities with multiple identical laser cells, two to three units is a defensible reserve position. Secondary market availability of discontinued optics decreases over time — sourcing now is lower risk than sourcing after a failure event.

Can you source related optical components for the same laser system?
Yes. Contact us with your full bill of materials or system model. DriveKNMS specializes in complete obsolete spare parts packages for legacy laser and industrial automation systems.
