Woodhead SST-ESR2-CPX-P ControlNet PCI Interface – Obsolete SST ControlNet Spare Part

Technical Dossier

Product Details And Specifications

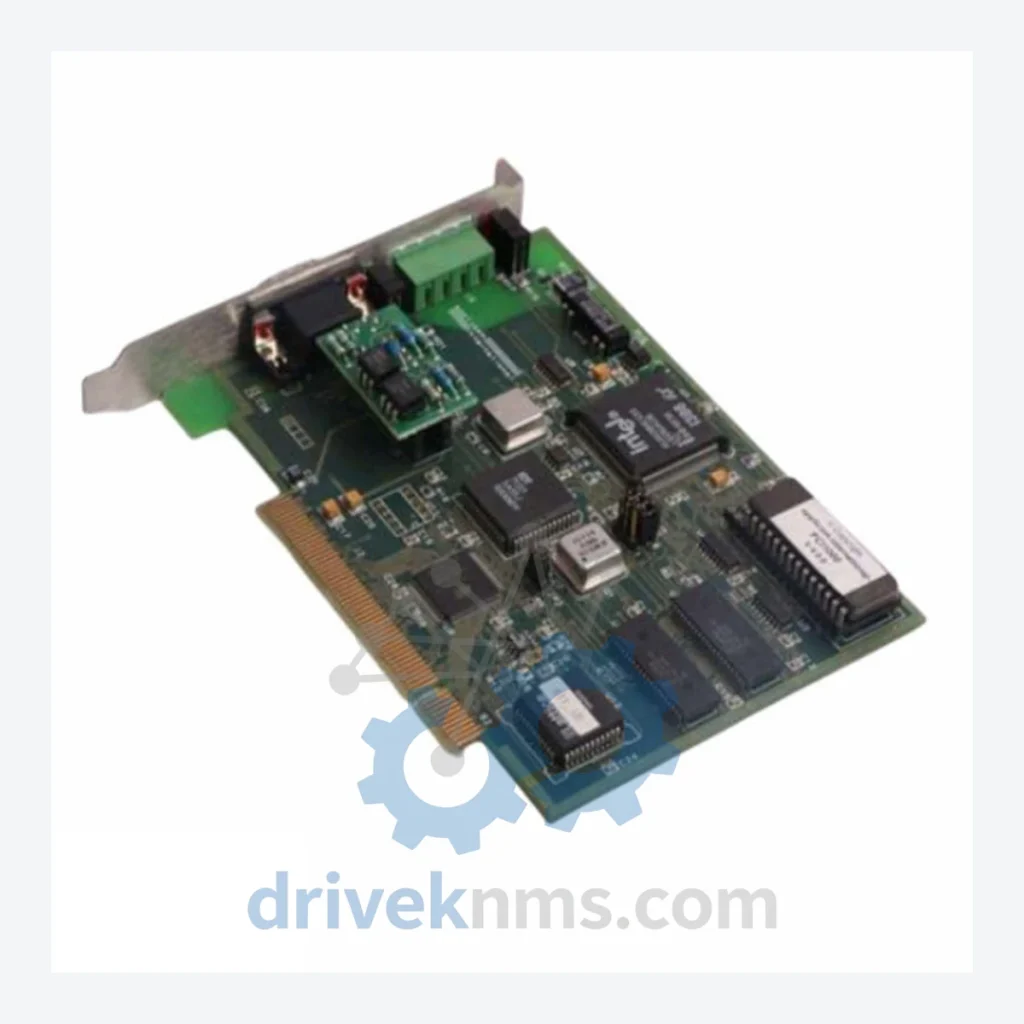

Woodhead SST-ESR2-CPX-P ControlNet PCI Interface – Obsolete SST ControlNet Spare Part

When a ControlNet interface card fails on a production line built around Allen-Bradley PLC-5 or ControlLogix architecture, the clock starts immediately. The SST-ESR2-CPX-P — manufactured by Woodhead SST, now absorbed into Molex — has been discontinued. Replacement units are no longer produced. The engineering reality is straightforward: without this card, the ControlNet segment it manages goes dark, and every node on that segment — drives, I/O blocks, remote adapters — loses deterministic communication.

Plant managers who have priced a full ControlNet-to-EtherNet/IP migration know the figure well: $500,000 to several million dollars, depending on panel count, engineering hours, re-commissioning, and production downtime. DriveKNMS maintains verified physical stock of the SST-ESR2-CPX-P. For facilities that are not yet ready — or not yet funded — for a full system overhaul, this card is not a stopgap. It is a deliberate asset-protection decision.

Technical Specifications

Note: Only confirmed published specifications are listed above. Electrical parameters not independently verified are intentionally omitted to protect installation safety.

Solving the Discontinued Hardware Crisis

The SST-ESR2-CPX-P was a workhorse in ControlNet architectures deployed throughout the 1990s and 2000s. It provided PC-based HMI and SCADA workstations with direct, deterministic access to the ControlNet segment — a function that cannot be replicated by simply swapping in an EtherNet/IP card without re-engineering the entire communication layer.

Facilities running Allen-Bradley PLC-5 systems face a compounded problem: the PLC-5 platform itself is end-of-life, and Rockwell Automation has formally ended support. Every component that keeps a PLC-5 line operational — including the ControlNet interface at the PC level — becomes irreplaceable once stock is exhausted globally. The SST-ESR2-CPX-P sits at exactly this intersection.

For plant engineers managing aging DCS or PLC infrastructure, the strategic calculus is not complicated. A single verified spare card, sourced now, can defer a seven-figure capital project by five to ten years. That deferral window allows facilities to align system retirement with planned capital cycles rather than emergency shutdowns. It is asset lifecycle management, not improvisation.

DriveKNMS specializes in sourcing, verifying, and supplying exactly these components — parts that OEMs no longer manufacture, that distribution channels no longer stock, and that production lines cannot operate without.

Condition & Reliability Assurance

Obsolete parts carry inherent risk if sourced without discipline. DriveKNMS applies a 5-step verification protocol to every SST-ESR2-CPX-P unit before it leaves our facility:

1. Electrolytic Capacitor Inspection: Aged capacitors are the primary failure mode in cards of this era. Each unit is inspected for bulging, leakage, and ESR deviation. Units with suspect capacitors are either recapped with equivalent-spec components or rejected.
2. Firmware Version Verification: The installed firmware revision is confirmed and documented. Incompatible firmware versions between the card and the host software stack are a known source of intermittent faults.
3. Pin and Connector Corrosion Check: PCI edge connectors and coaxial BNC ports are inspected under magnification for oxidation, pin deformation, and contact integrity.
4. Functional Communication Test: Where test infrastructure permits, the card is bench-tested for ControlNet segment initialization and node enumeration.
5. Packaging and ESD Protection: Units are shipped in anti-static packaging with desiccant. Long-term storage integrity is maintained for units held as strategic spares.

Key Features for System Maintenance

• Drop-in replacement: The SST-ESR2-CPX-P installs into any available PCI slot and is recognized by existing SST ControlNet driver stacks without hardware reconfiguration.
• No re-programming required: The ControlNet network configuration resides in the scanner, not the PC card. Swapping the card does not require re-downloading PLC programs or re-configuring network schedules.
• Avoids engineering reconstruction costs: Migrating away from ControlNet requires re-engineering every node on the segment. A verified spare card eliminates that cost entirely for the duration of the asset's remaining service life.
• Supports redundant media: The ESR2 variant supports dual-media ControlNet, maintaining the fault-tolerant architecture of the original installation.

FAQ

What warranty is provided on a discontinued part?
DriveKNMS provides a 90-day functional warranty on all verified units. Given the obsolete status of this component, we recommend customers treat the purchased unit as an active spare and consider securing a second unit for long-term coverage.

How do I know the unit is genuine and not counterfeit?
All SST-ESR2-CPX-P units are inspected for OEM markings, PCB revision consistency, and component authenticity. We do not source from unverified brokers. Provenance documentation is available upon request for critical installations.

Should I buy more than one unit?
For any facility running a single SST-ESR2-CPX-P in production, yes. Global stock of this part is finite and diminishing. A second unit held as a cold spare costs a fraction of one hour of unplanned downtime on a modern production line. We recommend a minimum of one active spare per ControlNet segment served by this card.

Can this card work with modern operating systems?
Driver support depends on the SST ControlNet software version installed. Compatibility with Windows 7 and earlier is well-documented. Customers should verify driver availability for their specific OS version before purchase. We can advise based on your software revision.

What is the lead time?
Units in current stock ship within 3–5 business days. Stock levels are not replenishable. Contact us to confirm current availability before placing a critical order.
