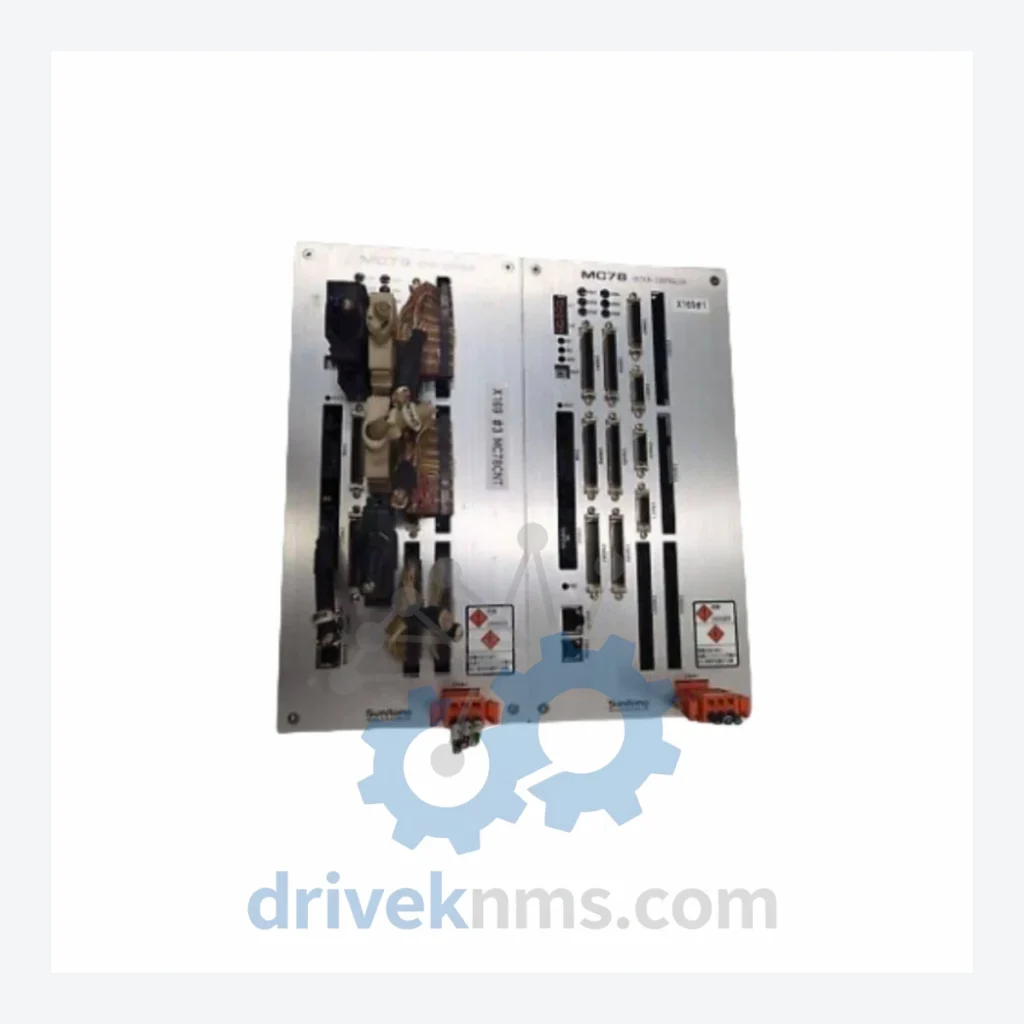

Sumitomo UMC78S001-01 Servo Encoder Module – Obsolete Legacy Spare Part

Technical Dossier

Product Details And Specifications

Sumitomo UMC78S001-01 Servo Encoder Module – Obsolete Legacy Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are not published here to prevent misapplication. Please provide your system model and firmware version when enquiring so our engineers can confirm compatibility before dispatch review.

Solving the Discontinued Hardware Crisis

Sumitomo's servo drive product lines from the 1990s and early 2000s remain embedded in automotive stamping lines, packaging machinery, semiconductor handling equipment, and precision machine tools across Asia, Europe, and North America. The UMC78S001-01 encoder module sits at the heart of the position feedback loop in these systems. Without it, the drive cannot close the servo loop, and the machine cannot operate.

The discontinuation of this module by Sumitomo does not reflect the end of its useful life in the field — it reflects a commercial decision by the OEM. The physical design of these modules, when properly maintained, is capable of reliable operation well beyond the OEM's stated service window. The real risk is not component wear; it is the absence of a replacement when one is needed.

For plant managers facing pressure to justify continued operation of legacy servo systems, the financial case is straightforward. A single day of lost production on a high-throughput line typically exceeds the cost of a multi-year spare parts reserve. The UMC78S001-01 is not a consumable — it is an asset protection instrument.

Condition & Reliability Assurance

Every UMC78S001-01 unit supplied by DriveKNMS passes a structured 5-step quality verification process before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Full board inspection for physical damage, connector pin integrity, and PCB trace condition. Corroded or bent pins are disqualifying defects.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this era. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with equivalent-spec components or rejected.
• Step 3 – Firmware and Configuration Verification: Where applicable, firmware version is read and documented. Units are not shipped with unknown or mismatched firmware states.
• Step 4 – Functional Bench Test: The module is powered and tested for correct signal output under controlled conditions prior to packaging.
• Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with desiccant and rigid outer packaging to prevent transit damage.

Key Features for System Maintenance

• Drop-in Replacement: The UMC78S001-01 is a direct hardware replacement for the original module. No mechanical modification to the drive chassis is required.
• No Re-Programming Required: The module interfaces with the existing servo drive firmware. Replacing this module does not require motion program modification or axis re-tuning in standard applications.
• Avoids Engineering Reconstruction Costs: Sourcing this module eliminates the need to engage a systems integrator for drive replacement, re-wiring, or motion sequence re-commissioning.
• Extends Asset Service Life: A single verified replacement module can restore full servo system functionality and extend the operational life of the surrounding capital equipment by years.

Can DriveKNMS source other Sumitomo obsolete parts?
Yes. DriveKNMS specializes in hard-to-find and discontinued industrial automation components. Contact us with your full part number and required quantity.
