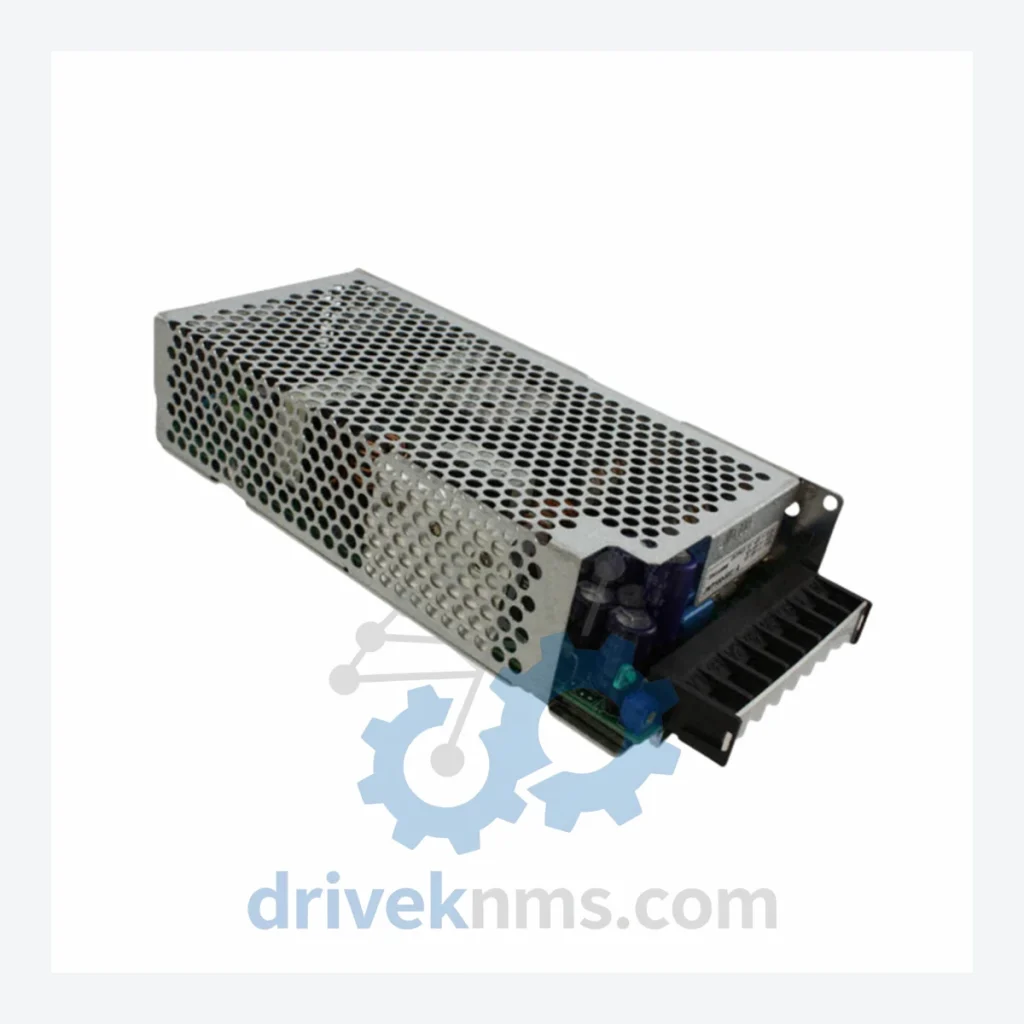

TDK-Lambda JWT100-522/B Power Supply Module – Obsolete JWT Series Spare Part

Technical Dossier

Product Details And Specifications

TDK-Lambda JWT100-522/B Power Supply Module – Obsolete JWT Series Spare Part

When a power supply module fails inside a legacy industrial control system, the consequences extend far beyond a single component. For plants still operating on aging DCS or PLC platforms — systems that were engineered and commissioned at a cost of millions — a single discontinued module can trigger a forced migration decision that no budget cycle is prepared for. The TDK-Lambda JWT100-522/B is one such component: a multi-output power supply module from the discontinued JWT series, no longer manufactured, and increasingly difficult to source through conventional distribution channels.

DriveKNMS maintains verified physical stock of the JWT100-522/B. This is not a broker listing. Availability is limited and not guaranteed beyond current inventory.

Technical Specifications

Note: Electrical parameters (output voltages, current ratings, input range) are not published here to avoid inaccuracy. Confirmed specifications are available upon request with datasheet reference.

Solving the Discontinued Hardware Crisis

The TDK-Lambda JWT series was widely deployed across industrial automation platforms throughout the 1990s and early 2000s. These power supply modules served as the backbone of control panel power distribution in systems built around legacy PLCs and distributed control architectures. When TDK-Lambda discontinued the JWT line, no pin-compatible successor was released — leaving facilities that never built a spare parts buffer in a structurally exposed position.

The core problem is not the cost of the module itself. The cost is what surrounds it. A forced system upgrade triggered by a single unavailable power supply can involve new I/O hardware, updated software licensing, re-engineering of control logic, operator retraining, and weeks of production downtime. Conservative estimates for a mid-scale automation system migration run from USD 300,000 to well over USD 1,000,000 depending on system complexity and production criticality.

Sourcing a verified JWT100-522/B spare eliminates that risk entirely — at a fraction of the cost. For plant managers and maintenance engineers operating under capital expenditure constraints, this is not a purchasing decision. It is a risk management decision.

How to extend your automation asset life by 5–10 years through strategic spare parts management:

• Identify single-point-of-failure components in your control panels — power supplies, communication modules, and CPU cards are the highest-risk categories in aging systems.
• Build a minimum two-unit buffer for any discontinued module that has no direct replacement. One unit in service, one unit on the shelf.
• Conduct annual condition assessments on installed power supply modules: check output voltage stability under load, inspect for capacitor bulge, and verify thermal performance.
• Document firmware and hardware revision levels for all installed units before sourcing replacements — revision mismatches in legacy systems can cause compatibility failures that are difficult to diagnose.
• Engage specialist distributors early, not after failure. Global stock of discontinued modules depletes over time and does not recover. Prices rise as availability falls.

A structured spare parts strategy for legacy automation assets is not a maintenance cost. It is capital protection.

Condition & Reliability Assurance

All JWT100-522/B units supplied by DriveKNMS pass a structured 5-step quality process before shipment:

1. Visual and mechanical inspection: Housing integrity, connector condition, PCB surface examination for corrosion, burn marks, or physical damage.
2. Electrolytic capacitor assessment: Capacitor aging is the primary failure mode in power supply modules stored or operated over extended periods. Each unit is inspected for capacitor bulge, leakage, and ESR deviation.
3. Pin and connector integrity check: All output and input terminals are inspected for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned where required.
4. Firmware and hardware revision verification: Where applicable, hardware revision markings are documented and cross-referenced against known compatible revisions for the JWT100-522/B.
5. Functional power-on test: Units are tested under controlled conditions to verify basic operational status prior to packaging.

Units are classified and labeled as New Old Stock (NOS), Tested Surplus, or Refurbished, with condition disclosed at point of sale.

Key Features for System Maintenance

• Drop-in replacement: The JWT100-522/B is a form-fit-function replacement for the original installed unit. No rewiring, no re-engineering, no PLC reprogramming required.
• No software reconfiguration: Power supply module replacement in JWT-series applications does not require firmware updates or parameter re-entry in the host control system.
• Avoids engineering rework costs: Substituting a compatible spare eliminates the need for panel redesign, new DIN rail hardware, or updated wiring schematics.
• Minimizes downtime exposure: A pre-sourced spare can be installed during a planned maintenance window rather than under emergency conditions — reducing both downtime duration and error risk.
• Preserves validated system configuration: Replacing like-for-like maintains the existing validated control system state, which is critical in regulated manufacturing environments (pharmaceutical, food processing, chemical).

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against defects in material and workmanship on all tested and refurbished units. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at point of sale.

How do I know the unit is genuine and not counterfeit?
All units are sourced from documented industrial surplus channels. Physical markings, date codes, and PCB construction are verified against known-authentic references. We do not source from unverified secondary markets. Inspection photos and test records are available upon request.

Should I buy more than one unit?
For any discontinued module with no OEM replacement path, holding a minimum of two units is the standard recommendation. If your system runs continuously and the JWT100-522/B is a single-point-of-failure component, a three-unit buffer is more appropriate. Global availability of this part will not improve over time.

Can you source other JWT series variants?
Contact us with your specific part number. DriveKNMS maintains sourcing networks for TDK-Lambda legacy product lines across multiple JWT variants.
