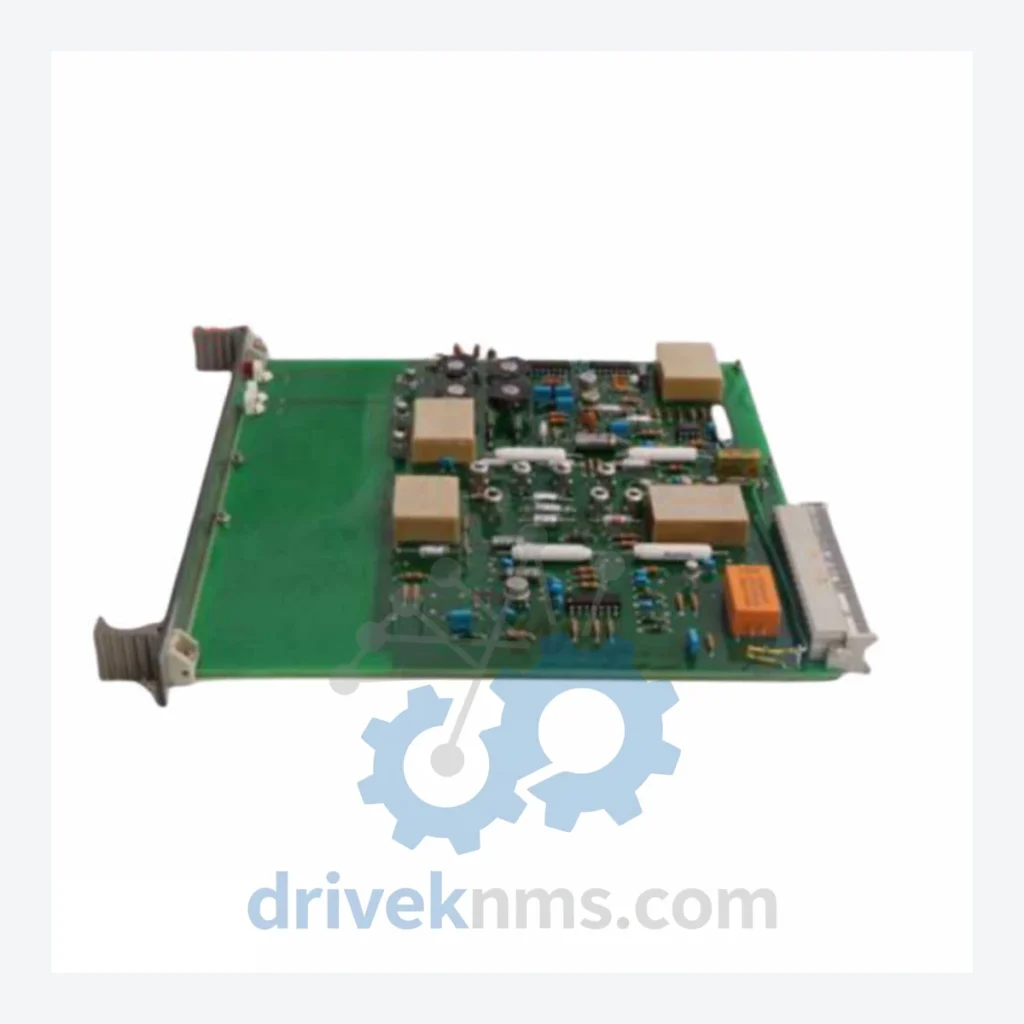

TEL 381-643065 Modules | TEL-381-643065-2

Technical Dossier

Product Details And Specifications

TEL 381-643065 Series: Comprehensive Module Range and Technical Overview

The TEL (Tokyo Electron) 381-643065 series represents a family of sensor and scan interface modules deployed across TEL semiconductor processing equipment, including diffusion furnaces, CVD systems, and etch platforms. These modules serve as the signal acquisition and conditioning layer between process sensors and the central control architecture. Installed across fabs in Japan, South Korea, Taiwan, and the United States, the 381-643065 series is a critical component in 200mm and legacy 300mm process lines that remain in production for mature node devices, power semiconductors, and MEMS fabrication. The series is characterized by its compact DIN-rail or rack-mount form factor, multi-channel analog input capability, and compatibility with TEL's proprietary backplane bus. Due to the long operational cycles of semiconductor equipment (often 15–25 years), demand for 381-643065 series modules remains active in the aftermarket, particularly for fabs maintaining legacy TEL Thermco, TEL Alpha-8SE, and TEL Mark-8 systems.

The Evolution of 381-643065 Architecture

The 381-643065 series was introduced as part of TEL's modular control philosophy in the late 1990s, designed to replace discrete wiring harnesses with standardized plug-in scan modules. Early revisions (suffix -1 through -3) used parallel bus communication with TTL-level logic, compatible with TEL's first-generation VME-based controllers. Mid-generation revisions (-5, -6, -11, -12) introduced optically isolated inputs, improved EMI shielding, and support for thermocouple types K, J, and R — expanding deployment into high-temperature diffusion and oxidation furnaces. Later W-suffix variants (W1–W8) transitioned to a serial scan protocol, reducing backplane wiring complexity and enabling faster polling rates (up to 500 scans/sec). Compatibility between parallel-bus and serial-bus variants requires an adapter board (TEL P/N 3D80-000xxx series); direct substitution without the adapter will result in communication faults. As of 2024, TEL has officially discontinued new production of all 381-643065 variants, placing the entire series in end-of-life (EOL) status. Lifecycle extension support is now exclusively available through authorized third-party spare parts distributors.

381-643065 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented production variants of the TEL 381-643065 series, classified by functional role:

Sensor Input / Scan Modules

• 381-643065-1: 8-channel analog scan module, parallel bus, TTL logic, thermocouple type K input.
• 381-643065-2: 8-channel analog scan module, parallel bus, enhanced noise filtering, thermocouple type K/J.
• 381-643065-3: 16-channel analog scan module, parallel bus, extended input range, thermocouple type K/J/R.
• 381-643065-5: 8-channel optically isolated scan module, parallel bus, improved EMI shielding, thermocouple type K.
• 381-643065-6: 16-channel optically isolated scan module, parallel bus, dual-bank input switching, thermocouple type K/J.

Advanced Scan / Serial Protocol Modules

• 381-643065-11: 8-channel scan module, serial protocol, 250 scans/sec, thermocouple type K/J/R/T.
• 381-643065-12: 16-channel scan module, serial protocol, 500 scans/sec, thermocouple type K/J/R/T/S/B.
• 381-643065-W1: W-series 8-channel serial scan, low-profile housing, thermocouple type K, DIN-rail mount.
• 381-643065-W2: W-series 16-channel serial scan, thermocouple type K/J, rack-mount bracket included.
• 381-643065-W3: W-series 8-channel serial scan, RTD (Pt100) input, 4-wire measurement, ±0.1°C accuracy.
• 381-643065-W4: W-series 16-channel serial scan, RTD (Pt100/Pt1000) input, dual-range selection.
• 381-643065-W5: W-series 8-channel serial scan, 4–20mA current loop input, process variable monitoring.
• 381-643065-W6: W-series 16-channel serial scan, 4–20mA current loop input, HART-compatible signal path.
• 381-643065-W7: W-series 8-channel serial scan, mixed input (thermocouple + RTD), configurable per channel.
• 381-643065-W8: W-series 16-channel serial scan, mixed input (thermocouple + 4–20mA), high-density backplane connector.

Sourcing Hard-to-Find & Obsolete 381-643065 Parts

DriveKNMS maintains a dedicated inventory program for TEL 381-643065 series modules, with a focus on EOL and long-lead-time variants. All units are sourced from decommissioned fab equipment, verified OEM pull stock, and authorized surplus channels. DriveKNMS provides: (1) serialized traceability documentation for each unit shipped; (2) functional test reports generated on TEL-compatible backplane test fixtures; (3) 12-month warranty coverage on all refurbished modules; (4) cross-reference support for identifying equivalent W-series replacements for obsolete parallel-bus variants. For fabs operating TEL Thermco, Alpha-8SE, or Mark-8 systems requiring long-term maintenance agreements (LTMAs), DriveKNMS offers consignment stocking programs to guarantee module availability for 3–5 year maintenance windows. Contact the procurement team with your BOM or equipment model number for a tailored sourcing proposal.

Quality Control for the 381-643065 Range

Each 381-643065 module received by DriveKNMS undergoes a structured inspection and functional verification process: (1) Visual inspection: PCB surface examination for corrosion, cracked solder joints, damaged connectors, and component substitution. (2) Backplane bus continuity test: All edge connector pins verified against TEL backplane pinout specification. (3) Analog input calibration check: Each input channel tested with a precision thermocouple/RTD simulator across the full measurement range; deviation >±0.5°C triggers recalibration or rejection. (4) Isolation resistance test: Optically isolated variants tested at 500VDC between input and bus circuits; minimum 100MΩ required. (5) Serial/parallel protocol handshake test: Module installed in a TEL-compatible backplane test rig and polled through 10,000 scan cycles; any CRC error or timeout results in rejection. (6) Burn-in: 48-hour powered soak at 45°C ambient prior to final packaging. All test data is retained and available upon request with each shipment.
