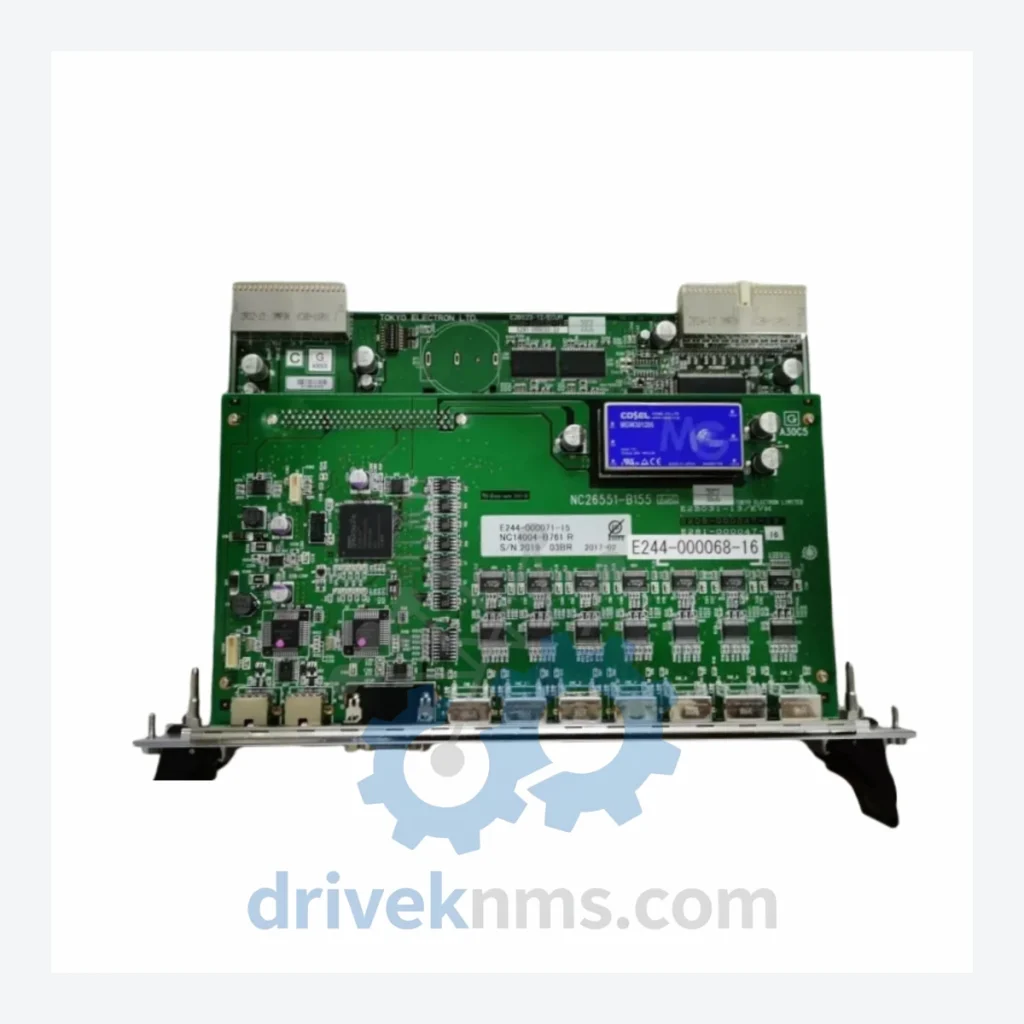

TOKYO E28023-12/ECUM E244-000071-15 NC26551-B155 E281 Circuit Board

Technical Dossier

Product Details And Specifications

TOKYO KEIKI ECUM E244 Series: Comprehensive Module Range and Technical Overview

The TOKYO KEIKI ECUM E244 series represents a class of industrial control and signal processing circuit boards deployed extensively in heavy-industry automation environments including petrochemical refineries, offshore platforms, nuclear auxiliary systems, and steel manufacturing facilities. These boards serve as core computational and I/O interface elements within TOKYO KEIKI's distributed control architecture. Their long service cycles — often exceeding 15–20 years in continuous operation — make reliable spare part sourcing a critical operational requirement for plant maintenance engineers worldwide.

The E28023-12 / ECUM E244-000071-15 / NC26551-B155 / E281 assembly is a multi-reference circuit board unit, where cross-referenced part numbers (E28023-12, ECUM E244-000071-15, NC26551-B155, E281) identify the same physical board across different documentation revisions, procurement systems, and OEM sub-assemblies. This is standard practice in TOKYO KEIKI's parts ecosystem.

The Evolution of ECUM E244 Architecture

TOKYO KEIKI's ECUM (Electronic Control Unit Module) E244 lineage traces its origins to the company's late-1980s push into programmable marine and industrial automation controllers. Early-generation boards in this family used through-hole component technology with discrete logic ICs and were designed for deterministic real-time control loops. By the mid-1990s, surface-mount technology (SMT) was integrated, reducing board footprint while increasing channel density.

The E244 sub-series introduced a standardized backplane bus interface compatible with TOKYO KEIKI's rack-mount enclosure systems, enabling modular replacement without full system shutdown in many configurations. Later revisions (identifiable by suffix codes such as -15, -16, -20) incorporated enhanced EMI shielding and extended operating temperature tolerance to meet IEC 61000 and MIL-STD-461 compliance requirements for offshore and naval applications.

As of 2020, the ECUM E244 series has entered its end-of-life (EOL) phase. TOKYO KEIKI no longer manufactures new units. All procurement is dependent on aftermarket inventory, refurbished stock, and component-level repair services — making third-party suppliers such as DriveKNMS the primary sourcing channel for plant operators requiring lifecycle extension support.

ECUM E244 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the TOKYO KEIKI ECUM E244 and associated cross-reference families. Each entry reflects a distinct board configuration or revision level:

E28023-12 / ECUM E244-000071-15 / NC26551-B155 / E281: Multi-reference main control circuit board; core processing and I/O interface unit for TOKYO KEIKI rack systems.
ECUM E244-000071-10: Earlier revision of the -15 board; through-hole dominant layout; compatible with first-generation backplane connectors.
ECUM E244-000071-16: Incremental revision with updated EEPROM addressing and improved watchdog timer circuit.
ECUM E244-000071-20: SMT-dominant revision; enhanced EMI shielding; extended temperature range (-20°C to +70°C).
ECUM E244-000072-10: Analog input signal conditioning board; 8-channel, 4–20 mA loop-powered inputs.
ECUM E244-000072-15: Revised analog input board; added channel isolation and surge protection per IEC 61000-4-5.
ECUM E244-000073-10: Digital output (DO) module; 16-channel relay-driven discrete outputs; 24 VDC nominal.
ECUM E244-000073-15: DO module revision; solid-state relay option; increased switching frequency capability.
ECUM E244-000074-10: Digital input (DI) module; 32-channel optically isolated discrete inputs; compatible with 24 VDC field wiring.
ECUM E244-000074-15: DI module revision; added diagnostics register for per-channel fault reporting.
ECUM E244-000075-10: Communication adapter board; RS-232/RS-485 dual-port serial interface for SCADA integration.
ECUM E244-000075-15: Communication adapter revision; added Modbus RTU firmware; baud rate up to 115200 bps.
ECUM E244-000076-10: Power supply regulation board; 24 VDC to 5 VDC / 12 VDC conversion; onboard fuse protection.
ECUM E244-000076-15: Power board revision; added soft-start circuit and reverse polarity protection.
NC26551-B155: OEM cross-reference designation for E28023-12; used in TOKYO KEIKI marine automation documentation.
E281: Sub-assembly reference code for the E28023-12 board within specific rack configurations; not an independent module.
ECUM E244-000077-10: CPU processing board; 16-bit microcontroller core; onboard RAM 256 KB; used as master controller in multi-slot racks.

Sourcing Hard-to-Find & Obsolete ECUM E244 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life TOKYO KEIKI ECUM E244 series boards. Given that the entire series has been discontinued by the OEM, plant operators face two primary risks: unplanned downtime due to board failure with no direct replacement path, and extended lead times when attempting to source through traditional distribution channels.

DriveKNMS addresses these risks through the following supply chain capabilities: maintained stock of pulled and refurbished ECUM E244 boards sourced from decommissioned systems; component-level repair services for boards with identifiable failure modes (capacitor degradation, EEPROM corruption, relay contact wear); cross-reference matching to identify functional equivalents across TOKYO KEIKI's broader catalog; and emergency shipment coordination for critical plant shutdowns. All units are shipped with full traceability documentation and a 12-month warranty against defects identified during incoming inspection.

Quality Control for the ECUM E244 Range

The ECUM E244 series presents specific quality verification challenges due to its backplane bus architecture and mixed analog/digital signal paths. DriveKNMS applies the following test protocol to all units prior to shipment:

Visual Inspection: Full board examination under 10x magnification for solder joint integrity, component seating, PCB trace continuity, and corrosion on edge connectors. Power-On Self-Test (POST): Board is energized at rated voltage (24 VDC) and monitored for correct power rail regulation across all onboard voltage domains. Backplane Bus Communication Test: Board is installed in a TOKYO KEIKI-compatible test rack and subjected to cyclic read/write operations across all addressable registers to verify bus arbitration and data integrity. I/O Channel Verification: For I/O boards, each channel is individually stimulated and the output verified against specification tolerances (±0.1% for analog, logic-level threshold for digital). Burn-In Cycle: Units are operated continuously for 48 hours at elevated ambient temperature (50°C) to screen for early-life component failures. Final Functional Test: Board is re-tested post burn-in under nominal conditions and results logged to the unit's traceability record.
