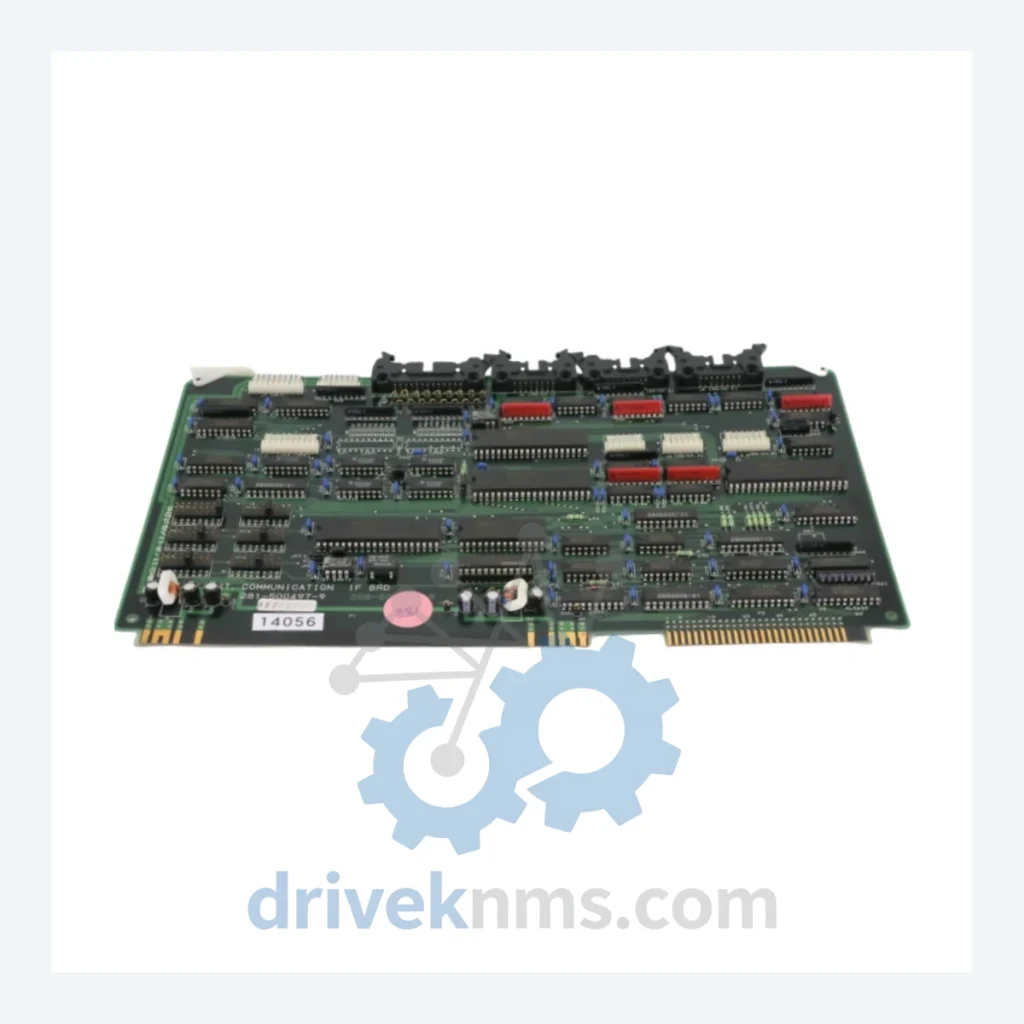

TOKYO ELECTRON 208-500497-9 EXT Communication IF Board – PMC Series

Technical Dossier

Product Details And Specifications

TOKYO ELECTRON 208-500497-9 EXT Communication Interface Board: Supply Continuity Strategy for Semiconductor Procurement Teams

The TOKYO ELECTRON (TEL) 208-500497-9 / 281-500497-9 / 700412 EXT Communication Interface Board — configured with SNP-PMC-DIG16, IXZPMC142-00, PMC901, 206845, and VB14N-300 — is a mission-critical PCB assembly used in TEL diffusion and CVD equipment platforms. As TEL has progressively phased out legacy PMC-series support, this board has transitioned from a standard spare into a supply-constrained asset. Procurement managers operating semiconductor fabs, equipment refurbishment lines, or MRO programs must approach sourcing with a clear-eyed view of lead time risk, authentication requirements, and total cost of ownership.

DriveKNMS maintains an active global sourcing network specifically targeting end-of-life and hard-to-find TEL components. If your fab is running legacy TEL equipment and facing unplanned downtime risk, this page is your procurement reference.

Procurement Specifications

Note: Due to the discontinued status of this part, inventory levels fluctuate. Submit an RFQ to confirm real-time availability before committing to a maintenance schedule.

Cost Optimization & TCO Analysis

Procurement decisions for legacy semiconductor equipment boards are rarely straightforward. The 208-500497-9 sits at the intersection of three cost pressures that procurement managers must quantify before approving a purchase order:

1. Unplanned Downtime Cost vs. Spare Part Price
A single unplanned downtime event on a CVD or diffusion tool can cost a fab USD $50,000–$500,000 per day in lost wafer output, depending on tool utilization and product mix. The cost of holding one qualified spare board on-shelf is negligible by comparison. Procurement teams that treat this board as a discretionary purchase — rather than a risk mitigation asset — consistently report higher total maintenance costs over a 3-year horizon.

2. Spare Parts Turnover Rate
For legacy TEL PMC-series equipment, the spare parts turnover rate for communication interface boards is low (typically 0.3–0.8 units/year per tool). This means the board sits in inventory for extended periods. DriveKNMS recommends sourcing only what your MTBF data supports — over-stocking ties up working capital, while under-stocking creates supply continuity risk. We can assist with demand forecasting consultation at no additional cost for volume buyers.

3. Refurbished vs. New Surplus: The Real TCO Calculation
New surplus (unused, original packaging) commands a 20–40% price premium over tested refurbished units. For non-safety-critical communication boards, a fully tested and warranted refurbished unit from a traceable source delivers equivalent functional performance at lower TCO. DriveKNMS provides full functional test reports on request — ask for the test protocol when submitting your RFQ.

Quality Compliance & Logistics

• 12-Month Warranty: All units carry a 12-month warranty covering functional failure under normal operating conditions. Warranty claims are processed within 5 business days.
• Export Compliance: Full export documentation package — Commercial Invoice, Packing List, Certificate of Origin, and ECCN classification — provided with every shipment. Suitable for customs clearance in EU, US, Southeast Asia, and Middle East markets.
• Multi-Currency Payment: USD, EUR, CNY, HKD accepted. T/T (Wire Transfer), PayPal, and Letter of Credit (L/C) available for qualified buyers.
• Global Logistics: DHL Express, FedEx International Priority, and UPS available. ESD-safe packaging with anti-static shielding bags and foam inserts as standard. Tracking provided within 24 hours of dispatch.
• Inspection & Testing: Each board undergoes visual inspection, power-on test, and communication function verification before shipment. Test reports available upon request.

Why Procurement Managers Choose DriveKNMS

Global Sourcing Network: DriveKNMS maintains relationships with authorized distributors, equipment refurbishers, and fab decommissioning programs across Japan, South Korea, Taiwan, the US, and Europe. For discontinued TEL parts, this network is the difference between a 3-day lead time and a 90-day wait.

Part Number Verification & Cross-Reference: TEL part numbering conventions are notoriously complex — the 208-/281- prefix variants, sub-assembly configurations, and revision levels can result in costly mis-orders. Our technical team verifies part number compatibility against your equipment serial number and BOM before confirming any order. We catch specification mismatches before they become return freight problems.

Financial & Regulatory Compliance: All transactions are issued with formal commercial invoices, VAT receipts where applicable, and traceable payment records. We support corporate procurement workflows including PO-based purchasing, vendor registration, and third-party audit documentation.

FAQ

Q: What payment terms are available?
A: Standard terms are 100% T/T in advance for first-time orders. For established accounts with order history, Net 30 terms and L/C arrangements are available. Contact us to discuss your company's procurement requirements.

Q: What is the warranty policy if the board fails?
A: Units are covered by a 12-month functional warranty from the date of shipment. In the event of failure, DriveKNMS will provide a replacement unit or full refund after failure verification. Return shipping costs for warranty claims are covered by DriveKNMS.

Q: Are volume discounts available?
A: Yes. Tiered pricing is available for orders of 3+ units. Multi-site procurement programs and annual blanket orders are eligible for additional discounts and priority allocation. Specify your annual demand forecast in your RFQ for a tailored pricing proposal.

Q: Can you source this part if it is not currently in stock?
A: Yes. If the 208-500497-9 is not immediately available from our existing inventory, we activate our global sourcing network. Typical sourcing lead time for this part is 7–21 business days. We provide weekly status updates during the sourcing process.

Q: What is the return policy for non-warranty returns?
A: Non-warranty returns are accepted within 30 days of receipt, provided the unit is in its original condition and has not been installed. A restocking fee of 15% applies. Units that have been installed are not eligible for non-warranty return.

Q: Do you provide documentation for customs clearance?
A: Yes. A full export documentation package is provided with every international shipment, including Commercial Invoice, Packing List, and Certificate of Origin. HS code classification and ECCN determination are available on request.
