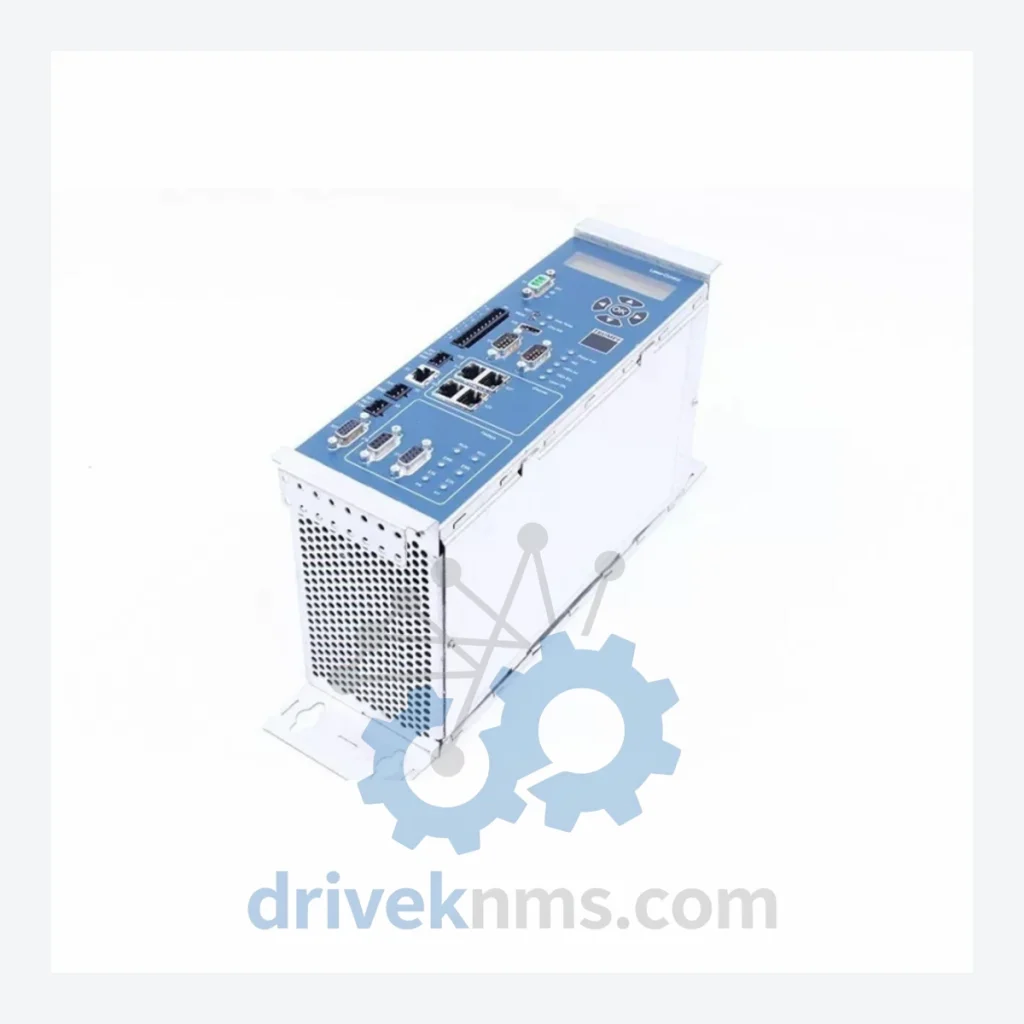

TRUMPF ASMC Series Laser Control Modules: ASMC2281

Technical Dossier

Product Details And Specifications

TRUMPF ASMC Series: Comprehensive Module Range and Technical Overview

The TRUMPF ASMC (Axis and Motion Control) series represents a core hardware platform deployed across TRUMPF CO₂ and solid-state laser systems, including the TruLaser, TruFlow, and TruCoax product lines. These modules are embedded in laser cutting, welding, and marking installations operating in high-demand industrial environments including automotive body-in-white production, aerospace sheet metal fabrication, chemical processing equipment manufacturing, and nuclear component machining. The ASMC series provides deterministic real-time control of laser beam parameters, axis interpolation, and I/O coordination within TRUMPF's proprietary SINUMERIK-adjacent and TruTops-integrated control architectures. Installed base spans facilities across Europe, North America, and East Asia, with many systems operating continuously for 15–25 years, creating sustained demand for spare and replacement modules.

The Evolution of ASMC Architecture

The ASMC platform was introduced as part of TRUMPF's transition from relay-logic and discrete analog control to fully digital, bus-based laser management in the late 1980s and early 1990s. Early ASMC modules communicated via proprietary parallel backplane interfaces and were designed for integration with TRUMPF's BUS-L internal laser bus. Mid-generation modules (ASMC2xxx series) introduced enhanced diagnostics, expanded I/O channel counts, and compatibility with TRUMPF's TOPS and TruTops software environments. These modules operate within a VMEbus or proprietary TRUMPF rack architecture, requiring precise slot assignment and firmware version matching.

By the mid-2000s, TRUMPF began migrating newer laser platforms toward PC-based control with EtherCAT fieldbus integration, rendering many ASMC-generation modules functionally obsolete in new production but critically important as long-term maintenance components. The ASMC2281 specifically functions as a laser control interface card responsible for coordinating beam-on/beam-off sequencing, power regulation feedback loops, and safety interlock monitoring. Compatibility issues arise when mixing firmware revisions across ASMC module generations; field engineers must verify EPROM revision levels before substitution.

ASMC Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the TRUMPF ASMC and associated laser control module ecosystem. Each entry reflects a distinct functional role within the laser system architecture:

ASMC2281: Laser control interface card; beam-on/off sequencing and power feedback coordination.
ASMC2282: Extended laser control module; dual-channel beam parameter management.
ASMC2283: Laser safety interlock controller; monitors door, shutter, and emission circuits.
ASMC2284: Analog output module for laser power setpoint transmission to RF exciter.
ASMC2285: Digital I/O expansion card; 32-channel discrete signal interface for peripheral devices.
ASMC2286: Axis synchronization module; coordinates X/Y gantry motion with beam emission timing.
ASMC2287: Encoder feedback interface; quadrature input processing for linear scale systems.
ASMC2288: Communication bridge module; translates TRUMPF BUS-L to RS-422 serial protocol.
ASMC2289: Diagnostic and status display module; onboard LED matrix and fault register readout.
ASMC2290: Power supply regulation card; +5V/±12V/+24V distribution within ASMC rack.
ASMC2291: High-speed digital output module; 16-channel 24VDC output for valve and actuator control.
ASMC2292: Analog input acquisition card; 8-channel 12-bit ADC for sensor signal conditioning.
ASMC2293: CPU processing module; main control processor for ASMC rack coordination.
ASMC2294: Memory expansion module; EPROM/SRAM extension for program and parameter storage.
ASMC2295: Fieldbus gateway card; interfaces ASMC backplane to external PROFIBUS-DP network.
ASMC2296: Thermal monitoring module; multi-point temperature acquisition for laser resonator and optics.
ASMC2297: Shutter and aperture control card; stepper driver outputs for beam delivery optics.
ASMC2298: Redundant watchdog and reset module; hardware failsafe for critical laser emission circuits.

Sourcing Hard-to-Find & Obsolete ASMC Series Parts

The ASMC2xxx module series has been out of active TRUMPF production for over a decade. Standard distribution channels — including authorized TRUMPF service networks — no longer stock these components as new units. DriveKNMS maintains a dedicated inventory of tested ASMC series modules sourced through controlled decommissioning of retired laser systems, verified OEM surplus channels, and direct acquisition from facilities undergoing equipment upgrades. For end-users operating TRUMPF laser systems beyond their original service life, DriveKNMS provides module-level replacement without requiring full machine retrofit. Cross-reference support is available for identifying functional equivalents where direct part number matches are unavailable. Customers requiring long-term supply agreements for multi-unit facilities can contact DriveKNMS for scheduled inventory reservation.

Quality Control for the ASMC Series Range

ASMC series modules present specific test challenges due to their proprietary backplane communication protocol and firmware-dependent initialization sequences. DriveKNMS applies a structured validation process to each ASMC module prior to shipment. Incoming modules undergo visual inspection for PCB delamination, capacitor bulge, and connector pin integrity. Functional testing is performed using TRUMPF-compatible rack test fixtures that replicate the BUS-L backplane environment, allowing full power-on initialization and register-level diagnostics. Analog I/O channels are verified against calibrated reference signals. Digital output channels are load-tested at rated current. Firmware revision is read and documented; modules with mismatched or corrupted EPROM content are reflashed where recovery is possible or flagged as non-functional. Each shipped module includes a test report with channel-level pass/fail data and firmware revision record.
