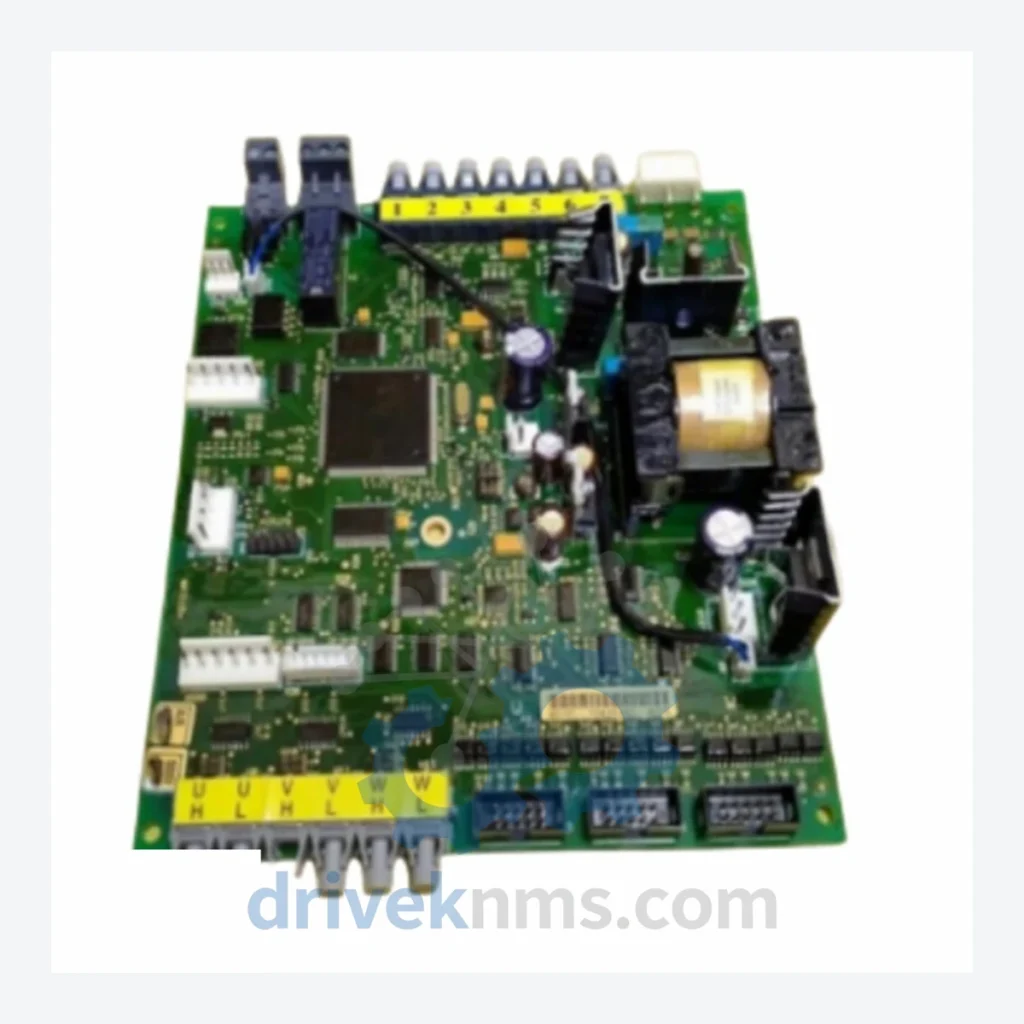

Vacon 60VB00459 Gate Driver Board – Obsolete NXS/NXP Series Spare Part

Technical Dossier

Product Details And Specifications

Vacon 60VB00459 Gate Driver Board – Obsolete NXS/NXP Series Spare Part

When a gate driver board fails inside a Vacon NXS or NXP series AC drive, the clock starts immediately. Every hour of unplanned downtime on a production line carries a cost that dwarfs the price of any spare part. A full drive replacement — if a compatible unit can even be sourced — runs into tens of thousands of dollars. A forced migration to a newer drive platform means new cabling, new parameter configuration, new commissioning, and in many cases, new PLC interface programming. Conservative estimates place the total engineering and lost-production cost of a single unplanned NXS/NXP drive retirement at $150,000 to $500,000 USD, depending on the application. The Vacon 60VB00459 gate driver board is the component that prevents that scenario. DriveKNMS holds verified physical stock of this board. This is not a listing created on speculation.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, switching frequency thresholds) are drive-frame dependent. Contact us with your full drive nameplate data for compatibility confirmation before ordering.

Solving the Discontinued Hardware Crisis

Vacon NXS and NXP drives were installed in enormous quantities across European and Asian manufacturing facilities throughout the 2000s and 2010s — in applications ranging from pump and fan control to precision tension control in paper mills and steel processing lines. When Danfoss completed its acquisition of Vacon in 2014, the combined entity continued supporting the NXS/NXP platform for a period, but active component production has since wound down. The 60VB00459 gate driver board is one of the boards that sits at the intersection of high failure probability and near-zero availability through standard distribution channels.

The gate driver board is not a peripheral component. It is the interface between the drive's control logic and the IGBT power modules. A fault on this board produces immediate drive trip, and in some failure modes, can cause IGBT destruction if not caught early. Facilities that operate NXS/NXP drives without a spare 60VB00459 on the shelf are operating with a single point of failure that has no fast resolution path. Danfoss does not offer a retrofit kit that allows a newer control board to substitute for this part without hardware modification. The 60VB00459 must be replaced with a 60VB00459.

For plant managers facing capital budget pressure, the argument for maintaining a legacy drive platform is straightforward: the NXS/NXP drive, when mechanically and electrically maintained, is a proven, stable platform. Its control algorithms are tuned to the application. Its parameters are documented. The operators know its behavior. Replacing it introduces risk, not just cost. Extending its service life by five to ten years through targeted spare parts procurement — specifically boards like the 60VB00459 — is the lowest-risk, lowest-cost path available.

Condition & Reliability Assurance

DriveKNMS applies a five-stage inspection protocol to all gate driver boards before shipment:

• Stage 1 – Visual and Mechanical Inspection: Full board examination for physical damage, burnt traces, cracked solder joints, and connector pin corrosion. Boards with pin oxidation are cleaned and re-assessed; those with structural damage are rejected.
• Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary aging component on boards of this generation. Each capacitor is checked for ESR deviation and capacitance loss. Boards with out-of-specification capacitors are either recapped or rejected.
• Stage 3 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known compatible versions for the NXS/NXP platform. No unauthorized firmware modifications are accepted.
• Stage 4 – Functional Bench Test: The board is powered and gate signal output is verified under controlled conditions.
• Stage 5 – Pre-shipment Documentation: Each board ships with an inspection record. Lot traceability is maintained in our internal system.

Key Features for System Maintenance

The 60VB00459 is a direct, drop-in replacement for the original board position in compatible NXS/NXP drive frames. No hardware modification is required. No parameter re-entry is required for the drive itself — the gate driver board does not store drive parameters. Replacement is a board-swap procedure that a qualified drive technician can complete during a planned maintenance window, or as an emergency repair, without involving the OEM or a system integrator.

This matters because the alternative — engaging a system integrator to specify, procure, and commission a replacement drive from a current product line — carries a lead time measured in weeks and an engineering cost measured in days of billable labor. The 60VB00459 eliminates that path entirely when the drive itself is mechanically sound. It is the difference between a four-hour repair and a six-week project.

For facilities managing multiple NXS/NXP installations, we recommend a minimum strategic stock of one 60VB00459 per three to five drives in service, held on-site. This is not an upsell position — it is the standard recommendation for any obsolete drive component where the supply chain cannot guarantee replenishment on demand.

FAQ

Q: What warranty applies to an obsolete board like the 60VB00459?
A: DriveKNMS provides a 90-day warranty on all shipped boards covering defects identified under normal operating conditions. New Old Stock units carry the same warranty. Extended warranty arrangements are available for volume orders — contact us to discuss.

Q: How do I know the board is genuine and not a counterfeit?
A: All boards are sourced through verified industrial surplus and authorized liquidation channels. We do not source from unverified secondary markets. Physical markings, PCB revision codes, and component dates are cross-referenced against known genuine units. If a board does not pass this check, it is not listed.

Q: Should I buy more than one unit?
A: For any facility with more than two NXS/NXP drives in continuous service, holding a minimum of two 60VB00459 boards is a defensible maintenance decision. The cost of a second board is a fraction of one hour of unplanned downtime. As stock of discontinued components depletes globally, replenishment becomes progressively harder and more expensive. Procurement now, at known cost, is preferable to emergency procurement later at unknown cost and availability.

Q: Can you confirm compatibility with my specific drive frame size?
A: Yes. Provide your drive's full nameplate data (frame size, power rating, voltage class) and we will confirm compatibility before you place an order.
