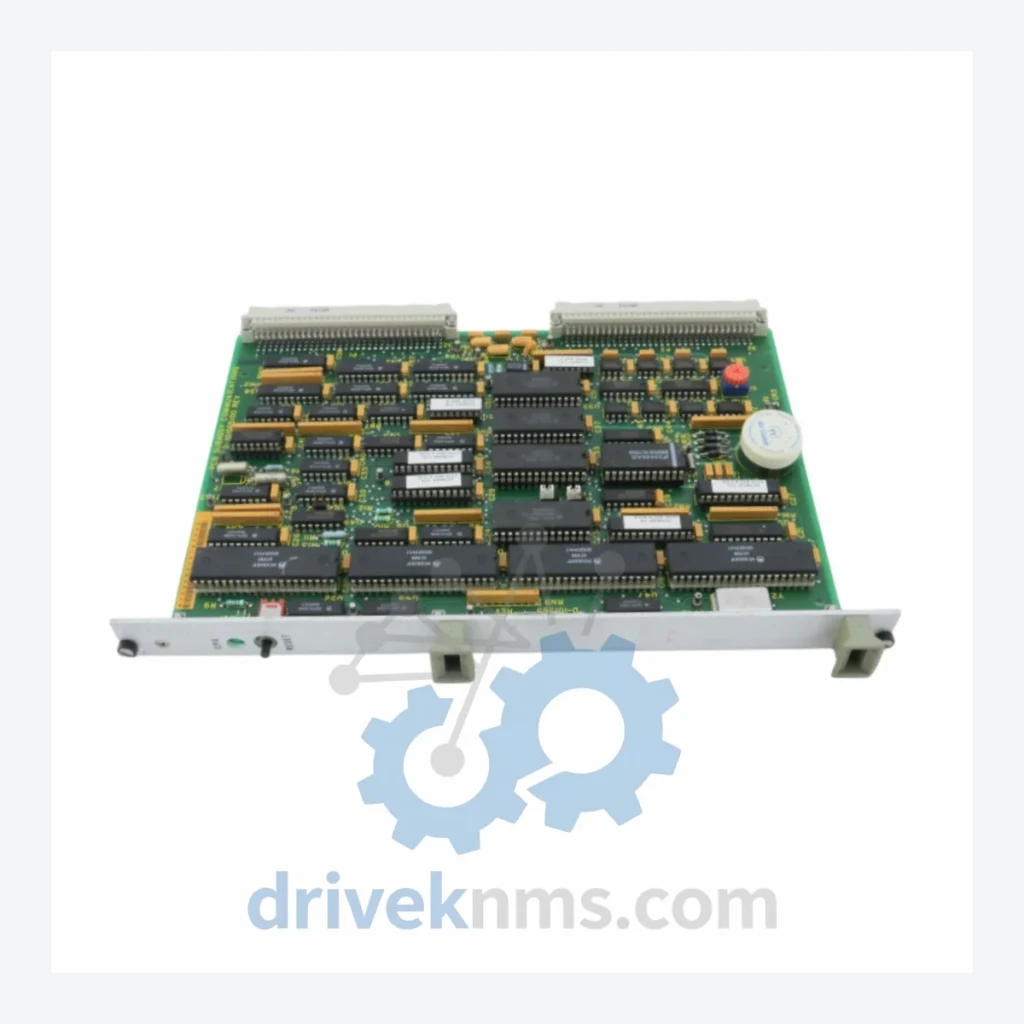

VARIAN SBC-188A Modules: D-101565100 101565004 SBC-188A TVB0004-1/147CON 3280-001594-11 3281-000203-11 SUBASSY COMMUNICATION

Technical Dossier

Product Details And Specifications

VARIAN SBC-188A Series: Comprehensive Module Range and Technical Overview

The VARIAN SBC-188A is a communication subassembly board deployed within VARIAN's industrial and semiconductor process equipment platforms. This series occupies a critical position in the backplane communication architecture of VARIAN ion implantation systems, vacuum process controllers, and related heavy-industry automation equipment. Installations of SBC-188A-class boards are documented across semiconductor fabrication facilities, chemical vapor deposition (CVD) lines, and high-vacuum industrial process systems globally. The board's role as a dedicated communication subassembly makes it a single point of failure in legacy systems — meaning uninterrupted spare parts availability is operationally non-negotiable for facilities running continuous production cycles.

The SBC-188A series interfaces with VARIAN's proprietary VMEbus and serial communication backplanes, providing the data pathway between process controllers, I/O subsystems, and operator interface terminals. Its deployment in long-lifecycle capital equipment means that many units remain in active service well beyond the original manufacturer's support window.

The Evolution of SBC-188A Architecture

The SBC-188A represents VARIAN's mid-generation communication board design, built around Intel 80188-class embedded processor architecture — a platform that defined industrial embedded control from the mid-1980s through the late 1990s. Early revisions of the board used discrete logic for bus arbitration and relied on RS-422/RS-485 serial interfaces for inter-module communication. Subsequent revisions introduced on-board EPROM for firmware storage, replacing earlier PROM configurations, and added hardware handshaking support for higher-throughput data exchange.

The TVB0004-1/147CON connector assembly variant (as found in D-101565100 / 101565004) reflects a later production revision with a standardized 147-pin connector interface, improving mechanical reliability in high-vibration environments such as ion beam lines and vacuum chamber peripherals. The 3280-001594-11 and 3281-000203-11 sub-assembly part numbers correspond to specific PCB revision levels and connector harness configurations used in VARIAN E220, E500, and related implanter platforms.

Compatibility across revisions requires careful cross-referencing of firmware versions and backplane slot assignments. Substituting an earlier revision board into a later-generation chassis without firmware alignment will result in communication faults. DriveKNMS maintains a cross-reference database for SBC-188A revision compatibility.

SBC-188A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the VARIAN SBC-188A communication subassembly ecosystem, organized by functional category:

Communication Subassembly Boards (Primary Series)

D-101565100: SBC-188A main communication subassembly PCB, primary revision
101565004: SBC-188A PCB sub-assembly, alternate part number for D-101565100
SBC-188A: Base model communication board, Intel 80188 processor, VMEbus interface
3280-001594-11: PCB assembly, communication subassembly, revision 11 build level
3281-000203-11: Connector harness sub-assembly, 147CON interface, revision 11
TVB0004-1/147CON: 147-pin connector assembly variant for SBC-188A backplane interface

Related I/O and Interface Modules

D-101565101: SBC-188A I/O expansion subassembly, digital input interface board
D-101565102: SBC-188A analog output subassembly, 12-bit DAC communication module
D-101565103: SBC-188A serial communication adapter, RS-422 multi-drop configuration
D-101565200: SBC-188A power regulation subassembly, +5V/±12V onboard supply
3280-001595-11: Backplane interface PCB, VMEbus slot 1 communication arbiter
3280-001596-11: Backplane interface PCB, VMEbus slot 2–8 peripheral communication

Processor and Memory Subassemblies

D-101566100: 80188 CPU daughter board for SBC-188A, 8MHz clock configuration
D-101566101: EPROM memory module for SBC-188A, 27C256 firmware storage
D-101566102: SRAM expansion module for SBC-188A, 32KB battery-backed RAM
D-101567100: SBC-188A watchdog timer subassembly, hardware reset controller
D-101567200: SBC-188A diagnostic interface board, RS-232 debug port module

Connector and Harness Components

TVB0004-2/147CON: 147-pin connector assembly, revision 2, high-retention latch variant
TVB0005-1/96CON: 96-pin connector assembly, alternate backplane configuration
3281-000204-11: Ribbon cable harness, SBC-188A to I/O expansion subassembly

Sourcing Hard-to-Find & Obsolete SBC-188A Parts

The SBC-188A series has entered end-of-life status with VARIAN (now part of Applied Materials). Original manufacturer support, including firmware updates, repair services, and new unit supply, has been discontinued. Facilities operating VARIAN E-series implanters, VIISta platforms, and related legacy equipment must source SBC-188A components through specialist industrial spare parts distributors.

DriveKNMS maintains dedicated inventory of SBC-188A subassemblies sourced from decommissioned equipment, factory overstock, and verified third-party refurbishment channels. All units are cataloged by part number, revision level, and firmware version where applicable. For obsolete variants such as early-revision D-101565100 boards with PROM-based firmware, DriveKNMS provides cross-reference consultation to identify compatible replacement revisions or validated substitute assemblies.

Lifecycle extension services available through DriveKNMS for the SBC-188A series include: unit-level repair and component replacement, firmware backup and EPROM re-programming, connector refurbishment for TVB0004-1/147CON assemblies, and long-term consignment stocking agreements for facilities requiring guaranteed availability over multi-year maintenance windows.

Quality Control for the SBC-188A Range

SBC-188A communication subassembly boards present specific test challenges due to their integrated backplane bus interface, embedded processor architecture, and multi-layer PCB construction. DriveKNMS applies the following test protocol to all SBC-188A units prior to dispatch:

Visual and Mechanical Inspection: Full PCB inspection under 10x magnification for solder joint integrity, capacitor condition, EPROM socket contact quality, and connector pin alignment on TVB0004-1/147CON assemblies. Boards with evidence of thermal stress, corrosion, or prior rework are flagged for component-level evaluation before proceeding.

Power-On Functional Test: Each board is powered via a calibrated bench supply replicating the VARIAN backplane voltage rails (+5V, ±12V). Boot sequence is monitored via the RS-232 diagnostic port to confirm processor initialization, EPROM checksum validation, and RAM self-test completion.

Communication Bus Verification: VMEbus arbitration and data transfer functions are verified using a dedicated bus analyzer. Serial communication ports (RS-422/RS-485) are tested for signal integrity, termination resistance, and correct baud rate operation across the full specified range.

Burn-In Procedure: Units are subjected to a minimum 24-hour powered burn-in cycle at ambient temperature to screen for early-life component failures. Boards are re-tested post burn-in before being cleared for shipment.

All test results are documented and available upon request. Units are shipped with an individual test report and a 90-day functional warranty.
