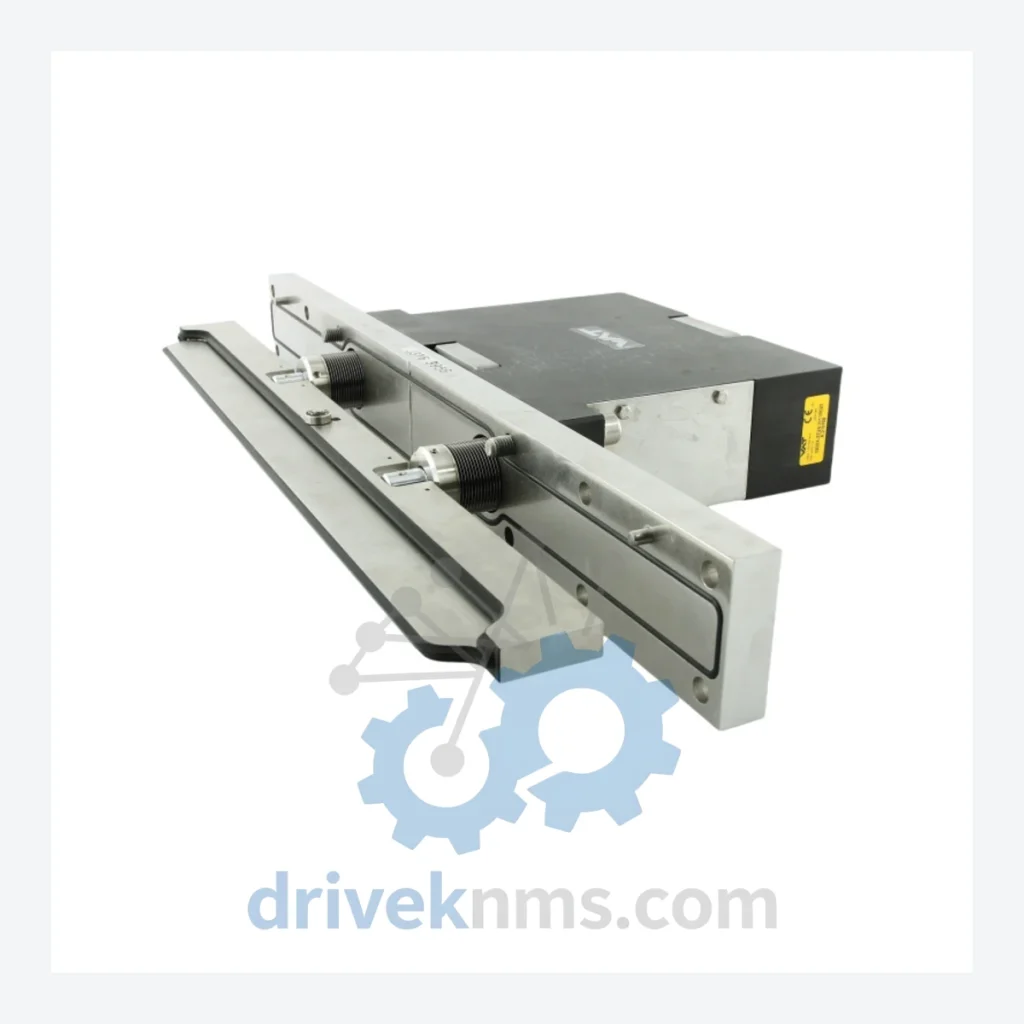

VAT 0200X-ZE24-1011 Slide Valve Assembly – Hard-to-Find Vacuum Valve Spare Part

Technical Dossier

Product Details And Specifications

VAT 0200X-ZE24-1011 Slide Valve Assembly – Secure Your Critical Vacuum System Spare

When a vacuum slide valve fails inside a semiconductor process chamber or industrial vacuum system, the consequences extend far beyond a single component. A single unplanned downtime event on a CVD, PVD, or etch tool can cost a facility tens of thousands of dollars per hour. Sourcing a direct replacement for a VAT 0200X-ZE24-1011 80-S09/S10 slide valve assembly through standard distribution channels is rarely straightforward — lead times from OEM channels routinely stretch 12 to 26 weeks, and in many cases the specific configuration is no longer stocked at all. DriveKNMS maintains targeted inventory of exactly these hard-to-find VAT valve assemblies to eliminate that gap.

Technical Specifications

Note: Electrical and dimensional parameters are not published here to prevent specification mismatch. Contact us with your system model for full compatibility verification before ordering.

Solving the Hard-to-Find Vacuum Valve Crisis

VAT slide valve assemblies are precision-engineered components built for ultra-high vacuum (UHV) and high-vacuum (HV) environments. The 0200X series is commonly integrated into process isolation and transfer chamber gate valve positions on equipment platforms used in semiconductor wafer fabrication, flat panel display manufacturing, and advanced coating systems. These tools represent capital investments in the range of $500,000 to several million dollars per unit.

The core problem facing maintenance and engineering teams is not the valve itself — it is the system dependency. Replacing a VAT slide valve assembly with a non-equivalent part risks seal integrity failure, particulate contamination of the process chamber, and potential damage to downstream turbomolecular pumps. The cost of a contaminated chamber clean and pump rebuild routinely exceeds $80,000 to $200,000, excluding lost production. Against that exposure, sourcing a verified OEM-equivalent spare part is not a discretionary expense — it is asset protection.

For facilities managing aging vacuum process tools where OEM support has been reduced or where the specific valve configuration is no longer in active production, the strategic answer is not immediate system replacement. A structured spare parts reserve — covering gate valves, actuator seals, and valve controllers — can extend the productive life of a vacuum process tool by 5 to 10 years at a fraction of the cost of a new system or a forced platform migration. DriveKNMS specializes in building exactly these reserves for facilities that cannot afford unplanned downtime.

Condition & Reliability Assurance

Every VAT valve assembly shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual and Mechanical Inspection: Full external inspection for seal deformation, body corrosion, actuator rod straightness, and port surface condition.
• Step 2 – Seal and Elastomer Assessment: O-rings and gate seals are evaluated for compression set and chemical degradation. Aged elastomers are replaced with OEM-grade equivalents where applicable.
• Step 3 – Actuator Function Test: Pneumatic or electropneumatic actuator cycling is verified across full stroke range. Response time and end-position seating are confirmed.
• Step 4 – Cross-Reference and Firmware/Configuration Verification: Part number, variant code (S09/S10), and any embedded configuration parameters are verified against the original VAT documentation to confirm the unit matches the ordered specification.
• Step 5 – Packaging for Long-Term Storage: Units intended for spare inventory are vacuum-sealed with desiccant and labeled with inspection date and condition grade to support traceability.

Key Features for System Maintenance

• Drop-in replacement: The 0200X-ZE24-1011 is a direct mechanical and functional replacement for the original installed position — no chamber modification, no re-engineering of the valve interface.
• No reprogramming required: Pneumatic actuation logic is handled at the valve controller level. Swapping the valve assembly does not require changes to the process recipe or PLC/SCADA configuration.
• Avoids engineering reconstruction costs: Substituting a non-equivalent valve to work around a sourcing gap requires engineering validation, leak-up rate testing, and process qualification — a process that can consume 4 to 8 weeks of engineering time. A verified OEM-equivalent spare eliminates this entirely.
• Supports long-term asset management: Facilities running 10- to 20-year-old vacuum process tools can maintain production continuity without committing to a platform upgrade cycle driven solely by spare parts unavailability.

FAQ

Q: What warranty applies to this part?
A: New OEM units carry a 12-month warranty from date of shipment. Certified refurbished units carry a 6-month warranty covering functional performance. Warranty terms are confirmed in writing at the time of order.

Q: How do I confirm this is a new or quality-refurbished unit, not a worn pull?
A: Each unit is accompanied by an inspection report documenting condition grade, test results, and the technician sign-off. We do not ship unverified pulls. If you require photographic documentation prior to shipment, this is available on request.

Q: Should I buy more than one unit as a long-term reserve?
A: For any vacuum process tool running in a production environment, holding a minimum of one spare gate valve assembly per tool is standard practice. For facilities with multiple tools using the same valve configuration, a centralized reserve of 2 to 3 units eliminates the sourcing risk entirely. Given the irregular availability of this specific configuration, purchasing reserve stock when it is available is the lower-risk position.

Q: Can you source other VAT valve configurations for our facility?
A: Yes. DriveKNMS maintains sourcing relationships for a broad range of VAT valve series. Contact us with your full part number list for a consolidated availability check.
