VAT 61246-PAGI-0001/0103 Pressure Control Valve – Hard-to-Find Legacy Spare Part

Technical Dossier

Product Details And Specifications

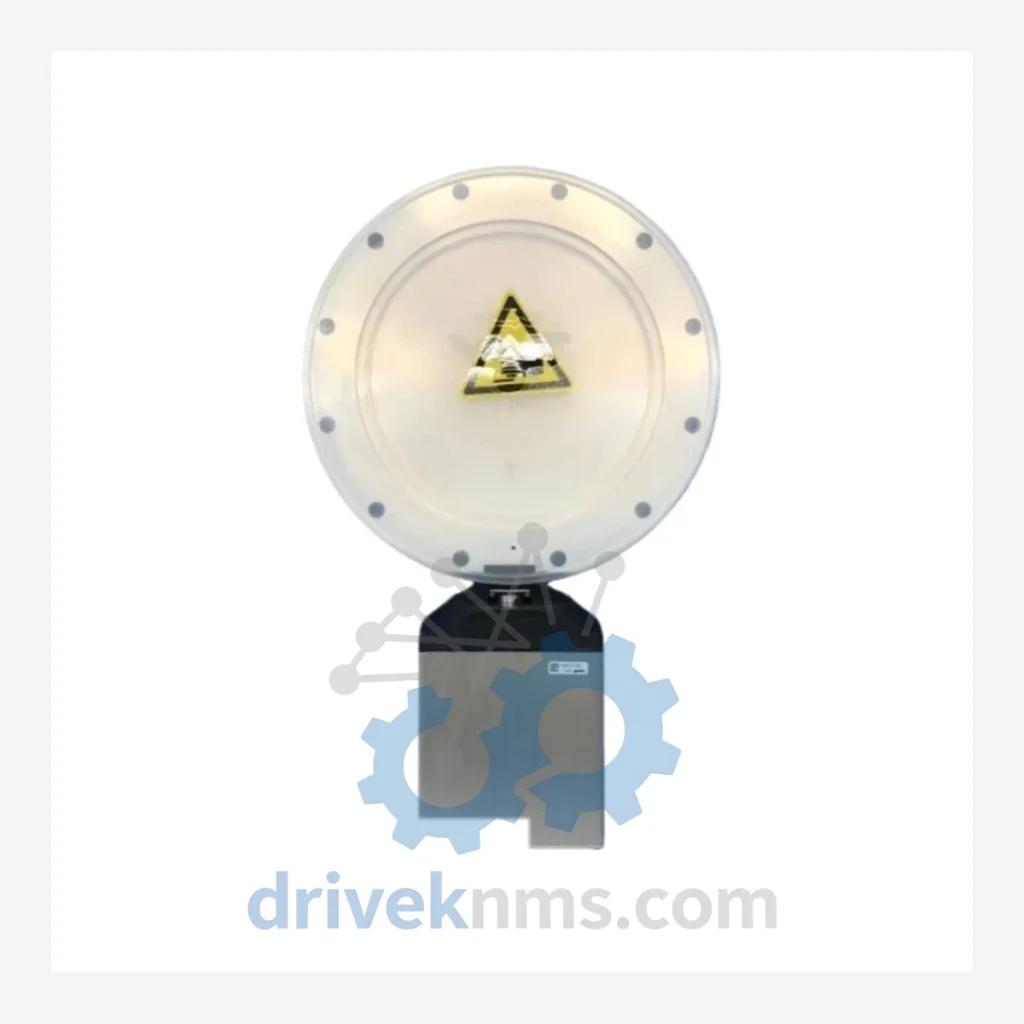

VAT 61246-PAGI-0001/0103 Pressure Control Valve – Hard-to-Find Legacy Spare Part

When a pressure control valve fails on a legacy vacuum process tool, the clock starts immediately. Sourcing a direct replacement for a discontinued or end-of-life VAT series valve is not a procurement exercise — it is a production crisis. A single unplanned line stoppage on a CVD, PVD, or dry etch platform can cost a semiconductor or industrial facility tens of thousands of dollars per hour. A forced system upgrade triggered by one unavailable valve can run into the millions. DriveKNMS maintains RFQ-reviewed sourcing status of hard-to-find VAT components, including the 61246-PAGI-0001/0103 (A-1174333), specifically to prevent that outcome.

Technical Specifications

Note: Electrical and pneumatic parameters vary by actuator configuration. Contact us with your system model for full compatibility confirmation. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

VAT Group's Series 61246 butterfly pressure control valves were engineered for precision throttle control in high-vacuum and rough-vacuum process environments. These valves are integral to pressure regulation in legacy semiconductor process tools — platforms that remain in production at fabs worldwide despite being 15 to 25 years old. The economics are straightforward: a fully depreciated tool generating revenue is worth protecting. Replacing it with a modern platform requires capital expenditure, process requalification, and months of engineering time.

We source, inspect, and hold RFQ-reviewed sourcing status of hard-to-find VAT components for facilities that cannot afford to treat a valve failure as a scheduled event. Our inventory exists precisely because planned obsolescence does not align with the operational reality of facilities running legacy tools at full utilization.

Extending Automation Asset Life by 5–10 Years: A Practical Maintenance Strategy

For plant managers and maintenance engineers facing pressure to retire aging vacuum process systems, the financial case for continued operation is often stronger than it appears. The following approach has been used by facilities to extend the productive life of legacy platforms by a decade or more without major capital outlay:

2. Condition-Based Valve Monitoring. Butterfly pressure control valves degrade predictably. Seat wear, actuator seal fatigue, and position sensor drift are measurable before they cause process excursions. Establish a quarterly inspection cycle. Replace on condition, not on failure.

3. Firmware and Controller Version Locking. Legacy VAT valves are often paired with specific controller firmware versions. Document the current firmware revision and lock it. Unsanctioned firmware updates on legacy controllers have caused compatibility failures that required full valve replacement. Stability is the objective.

5. Scheduled Overhaul vs. Emergency Replacement. A planned valve overhaul during scheduled maintenance costs a fraction of an emergency replacement sourced under production pressure. Build valve service intervals into the preventive maintenance schedule. Use the overhaul window to inspect and replace elastomers, clean the butterfly disc, and verify actuator torque specifications.

Condition & Reliability Assurance

Every VAT 61246-PAGI-0001/0103 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before release:

Step 1 – Visual and Mechanical Inspection. Full external examination for corrosion, seal degradation, and mechanical damage. Butterfly disc and seat surfaces are inspected under magnification for wear patterns that indicate service history.

Step 2 – Electrolytic Capacitor Assessment. Where applicable to the actuator control board, electrolytic capacitors are inspected for bulging, leakage, and ESR deviation. Aged capacitors are replaced before dispatch review. This is the most common failure mode in stored legacy electronic assemblies.

Step 3 – Firmware and Configuration Verification. Actuator firmware version is documented and cross-referenced against known compatible revisions for the target system. No firmware modifications are made without explicit customer authorization.

Step 4 – Pin and Connector Integrity Check. All electrical connectors and signal pins are inspected for oxidation, fretting corrosion, and mechanical deformation. Affected contacts are cleaned or replaced to OEM specification.

Units that do not pass all five steps are not shipped. Condition grade (New, Refurbished-Grade-A, or Tested-Used) is declared on every invoice.

Key Features for System Maintenance

Drop-in Replacement. The 61246-PAGI-0001/0103 is a direct mechanical and electrical replacement for the original installed unit. No process chamber modification, no re-piping, and no control system reconfiguration is required in standard applications.

No Reprogramming Required. The valve interfaces with existing process controllers using the original signal protocol. Maintenance teams can complete a swap during a standard PM window without involving process engineering or controls specialists.

Avoids Engineering Reconstruction Costs. Substituting a non-OEM equivalent or retrofitting a current-generation valve into a legacy system requires engineering hours, process requalification runs, and often a temporary production hold. A verified OEM-equivalent spare eliminates that cost entirely.

Documented Traceability. DriveKNMS provides part documentation, condition reports, and sourcing records with every shipment. This supports internal maintenance records and audit requirements.

How do I confirm this is a genuine VAT component and not a counterfeit?
We source from decommissioned OEM equipment, authorized secondary market channels, and verified industrial surplus. Each unit is inspected against known-good reference units. Part markings, casting details, and serial number formats are verified. Documentation is provided on request.

Can DriveKNMS source other VAT legacy components?
Yes. Contact us with your full BOM for legacy VAT components. We maintain sourcing networks for discontinued and end-of-life vacuum components across multiple product families.
