VIBRO-METER VM600 Series Technical Notes

The Evolution of VM600 Architecture

The VM600 platform was introduced as a successor to earlier Vibro-Meter rack systems, consolidating analog signal conditioning, digital processing, and communication functions into a standardized 19-inch rack format. Early generations relied on dedicated analog I/O cards with hardwired relay outputs for trip and alarm functions. As industrial communication standards evolved, Vibro-Meter introduced Modbus RTU and later Profibus DP adapter modules, enabling integration with DCS platforms from ABB, Honeywell, Emerson, and Siemens without replacing the core measurement hardware.

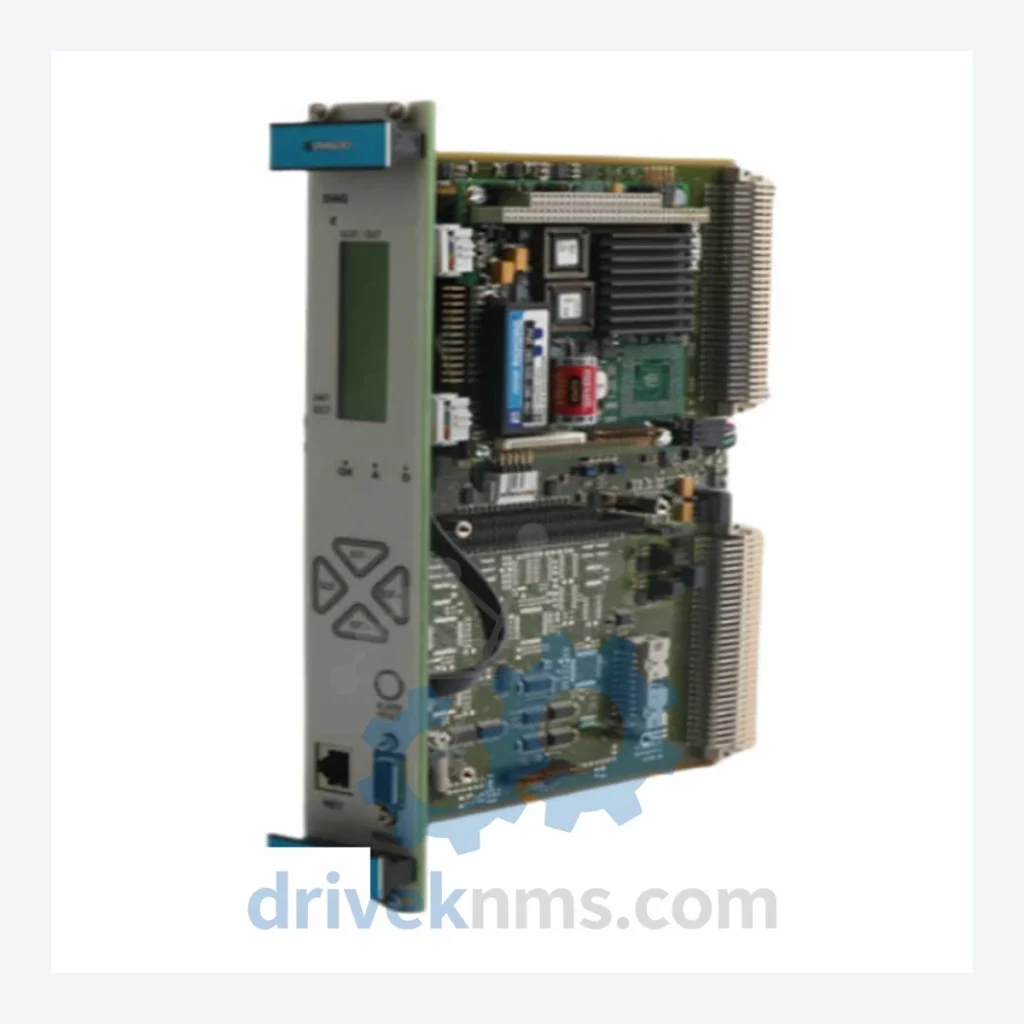

The CPU-M module (part number 209-595-200-132) represents the central processing unit of the VM600 rack. It coordinates data acquisition from all installed I/O modules, executes protection logic, manages communication with host systems, and provides the operator interface via front-panel indicators. Compatibility between CPU-M firmware versions and specific I/O module generations is a documented constraint: mixing incompatible firmware revisions can result in loss of protection channels. This makes sourcing a verified, firmware-matched replacement unit a critical requirement for maintenance teams.

The system entered a mature lifecycle phase as Meggitt and Baker Hughes shifted development focus to next-generation platforms. However, the installed base remains extensive, and OEM support for legacy VM600 hardware has become increasingly limited, driving demand for third-party spare parts sourcing and lifecycle extension services.

VM600 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the VM600 ecosystem, classified by functional category:

CPU & Controller Modules

• 209-595-200-132: VM600 CPU-M central processing unit, rack controller and protection logic executor
• 200-595-041-011: VM600 CPU module, earlier firmware revision, single-rack configuration
• 200-595-051-011: VM600 CPU module, dual-rack master controller variant
• 200-595-300-012: VM600 CPU-M, extended memory variant for large channel-count racks

Vibration & Dynamic Signal Input Modules

• 200-510-069-013: VM600 AMC8 analog monitoring card, 8-channel vibration input, 4–20 mA output
• 200-510-101-013: VM600 AMC8 vibration monitoring card, relay output variant
• 200-510-111-013: VM600 AMC8 with extended frequency response for high-speed machinery
• 200-510-200-013: VM600 RMC16 relay output module, 16-channel machinery protection

Speed & Keyphasor Modules

• 200-560-000-013: VM600 TM16 tachometer/speed monitoring module, 16-channel
• 200-560-100-013: VM600 TM16 speed module, Keyphasor reference input variant
• 200-560-200-013: VM600 TM16 with dual-channel Keyphasor and overspeed trip output

Position & Thrust Monitoring Modules

• 200-571-034-011: VM600 position monitoring module, DC LVDT signal conditioning
• 200-571-054-011: VM600 axial thrust and differential expansion monitoring card

Communication & Interface Modules

• 200-582-500-013: VM600 Modbus RTU communication adapter, RS-485 interface
• 200-582-558-011: VM600 Profibus DP communication module, DCS integration adapter

Power Supply Modules

• 200-590-200-015: VM600 rack power supply module, 24 VDC input, redundant-capable

Quality Control for the VM600 Range

VM600 modules present specific test challenges due to their proprietary backplane communication protocol and multi-channel analog signal paths. DriveKNMS applies the following test procedures to all VM600 units:

• Backplane communication integrity test using a reference VM600 rack to verify CPU-M slot recognition and I/O module enumeration
• Channel-by-channel analog input verification for AMC8 and TM16 modules using calibrated signal sources at specified frequency and amplitude ranges
• Relay output functional test for all trip and alarm relay contacts under simulated threshold-crossing conditions
• Communication port verification for Modbus and Profibus adapter modules using protocol analyzers
• Power supply load regulation test across specified input voltage range with full rack load simulation
• Visual and component-level inspection for capacitor degradation, connector wear, and PCB contamination

All tested units are issued a DriveKNMS inspection record documenting test results, hardware revision, and test date. Units that do not pass all test criteria are quarantined and not offered for sale.
