VIBRO-METER VM600 Series: Comprehensive Module Range and Technical Overview

The VIBRO-METER VM600 is a rack-based, modular condition monitoring and machinery protection system manufactured by Meggitt SA (formerly Vibro-Meter SA), headquartered in Fribourg, Switzerland. It is deployed across the most demanding segments of global heavy industry, including petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and large-scale rotating machinery installations. The VM600 system provides continuous, real-time vibration monitoring, speed measurement, and process variable acquisition for turbines, compressors, pumps, and generators. Its architecture complies with API 670 (5th Edition) machinery protection standards, making it the reference platform for OEM turbine packagers and EPC contractors worldwide.

The system's installed base spans decades of continuous operation. Many VM600 racks remain in service at facilities where replacement of the entire monitoring infrastructure is not economically or operationally feasible, creating sustained demand for individual module-level spare parts, including the VM600 IOC4T PNR-200-560-000-019 Input/Output Card covered on this page.

The Evolution of VM600 Architecture

The VM600 platform was introduced in the mid-1990s as a successor to earlier Vibro-Meter rack systems. Its architecture is built around a 19-inch, 6U rack chassis (the RPS600 rack) with a passive backplane that supports hot-swap module insertion. Communication between modules is handled via a proprietary internal bus, with external connectivity provided through dedicated communication modules.

Early VM600 deployments used analog signal conditioning exclusively. Subsequent hardware revisions introduced digital signal processing at the module level, improving noise immunity and enabling more complex alarm logic. The introduction of the MPC4 and AMC8 modules expanded the system's capacity for simultaneous channel monitoring. Later firmware generations added Modbus RTU and Profibus DP gateway capability through the CMC16 communication module, enabling integration with modern DCS platforms such as Honeywell Experion, Emerson DeltaV, and ABB 800xA.

The VM600 system is now in a mature/end-of-life phase. Meggitt SA has transitioned its active development to the eMx and MPS platforms. However, the VM600 remains supported under Meggitt's long-term maintenance program, and module-level spare parts continue to be sourced through authorized distributors and specialist aftermarket suppliers. For facilities operating VM600 systems, the primary risk is module obsolescence rather than system-level failure, making access to verified spare inventory a critical operational requirement.

VM600 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module population of the VM600 system. All part numbers are genuine Vibro-Meter / Meggitt SA references. Modules are classified by functional category.

Input/Output & Signal Conditioning Modules

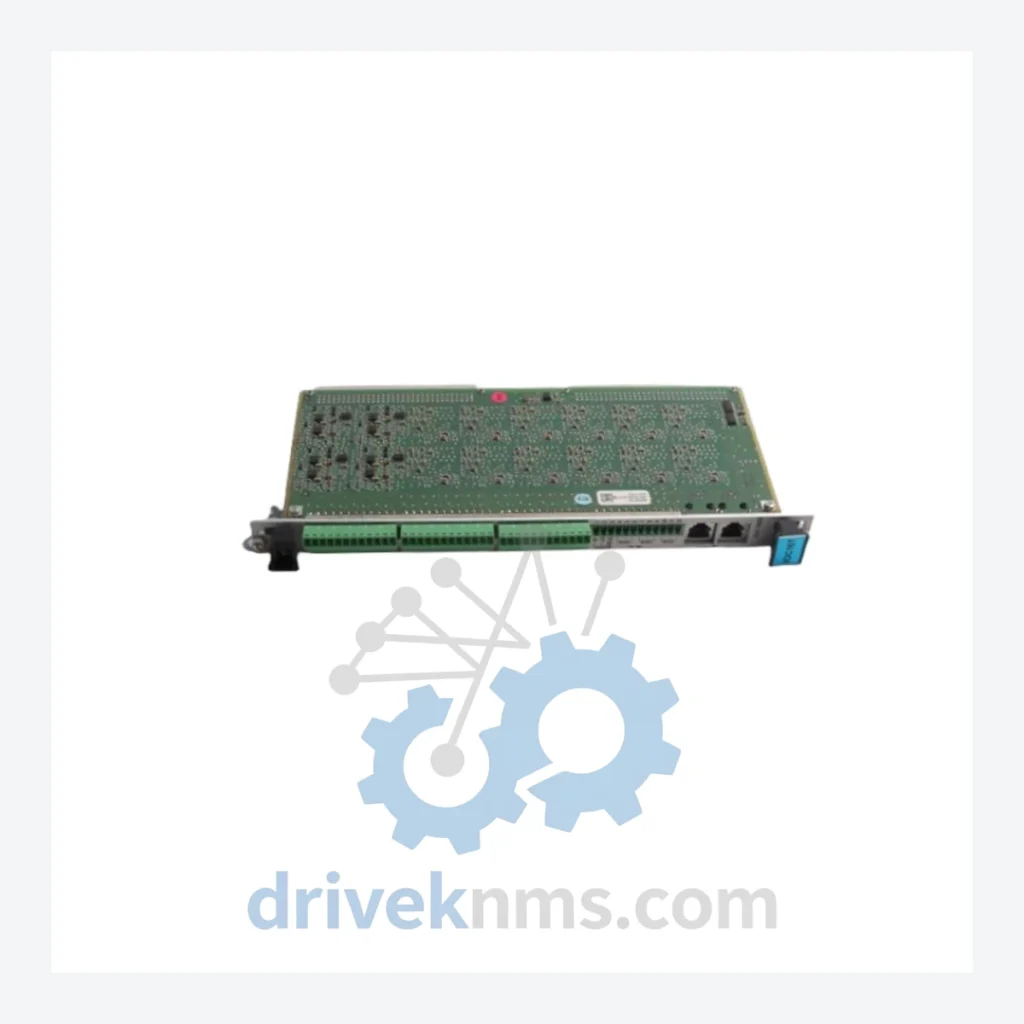

VM600 IOC4T PNR-200-560-000-019: 4-channel I/O card for transient and steady-state signal routing within the VM600 rack backplane.

VM600 IOC4 PNR-200-560-000-001: Standard 4-channel input/output card; base variant for analog signal interfacing.

VM600 IOC4T PNR-200-560-000-020: Enhanced transient-capable I/O card with extended temperature tolerance.

VM600 AMC8 PNR-200-542-000-xxx: 8-channel analog monitoring card; supports velocity, acceleration, and displacement inputs from eddy-current and seismic transducers.

VM600 MPC4 PNR-200-541-000-xxx: 4-channel machinery protection card; provides OK relay, danger relay, and alert relay outputs per API 670 requirements.

VM600 MPC4T PNR-200-541-000-xxx: Transient-data-capable variant of MPC4; stores waveform data for post-event analysis.

VM600 TDC PNR-200-543-000-xxx: Tachometer and differential expansion card; processes Keyphasor signals and shaft position inputs.

VM600 XMC16 PNR-200-544-000-xxx: 16-channel expansion multiplexer card; increases channel density within a single rack slot.

Communication & Network Modules

VM600 CMC16 PNR-200-545-000-xxx: Communication module; provides Modbus RTU, Profibus DP, and rack-level data aggregation for DCS integration.

VM600 RCOM PNR-200-546-000-xxx: Rack communication module; manages internal bus arbitration and external Ethernet connectivity on later firmware revisions.

CPU & Controller Modules

VM600 RPS600 PNR-200-500-000-xxx: Rack power supply and controller chassis; provides regulated DC power rails to all installed modules.

VM600 CPU PNR-200-550-000-xxx: Central processing unit card; executes alarm logic, channel configuration, and communication stack.

Power Supply Modules

VM600 PSU PNR-200-510-000-001: Primary power supply module; 24 VDC input, regulated outputs for rack backplane.

VM600 PSU-R PNR-200-510-000-002: Redundant power supply module; hot-standby configuration for continuous-duty installations.

VM600 PSU-AC PNR-200-510-000-003: AC-input power supply variant; 100–240 VAC input for installations without DC distribution.

Relay & Output Modules

VM600 RLC16 PNR-200-547-000-xxx: 16-channel relay output card; provides hardwired trip and alarm relay contacts for external safety systems.

VM600 DAC4 PNR-200-548-000-xxx: 4-channel digital-to-analog output card; provides 4–20 mA retransmission of monitored variables to DCS analog inputs.

Sourcing Hard-to-Find & Obsolete VM600 Parts

DriveKNMS maintains a dedicated inventory program for VM600 series modules, with particular focus on part numbers that have been discontinued by Meggitt SA or are subject to extended lead times through the OEM channel. Our sourcing process covers:

New-old-stock (NOS) modules sourced from decommissioned plant inventories and authorized distributor closeouts. Tested-used modules recovered from controlled decommissioning projects, with full functional verification prior to resale. Cross-reference matching for part numbers where the PNR suffix has been revised across production batches (e.g., -000-019 vs. -000-020 variants of the IOC4T).

For the VM600 IOC4T PNR-200-560-000-019 specifically, DriveKNMS holds stock and can confirm compatibility with specific rack firmware versions upon request. Lead time for in-stock items is typically 3–5 business days for international shipment.

Quality Control for the VM600 Range

VM600 modules present specific test challenges due to their proprietary backplane bus protocol and the interaction between the IOC4T signal routing card and the upstream MPC4/AMC8 processing modules. DriveKNMS applies the following test procedures to all VM600 spare parts prior to dispatch:

Rack-level functional test: Each module is installed in a reference VM600 rack and powered through a full initialization cycle. Channel-level signal injection: For I/O cards including the IOC4T, calibrated signals are injected at each channel input and output levels are verified against factory specification. Relay output verification: All OK, alert, and danger relay contacts are exercised and contact resistance measured. Backplane bus communication check: Module-to-CPU communication is confirmed via the VM600 configuration software (VM600 Rack Configuration Tool). Visual and component-level inspection: PCB inspection for corrosion, failed electrolytic capacitors, and damaged connector pins, which are the primary failure modes in long-service VM600 modules.
