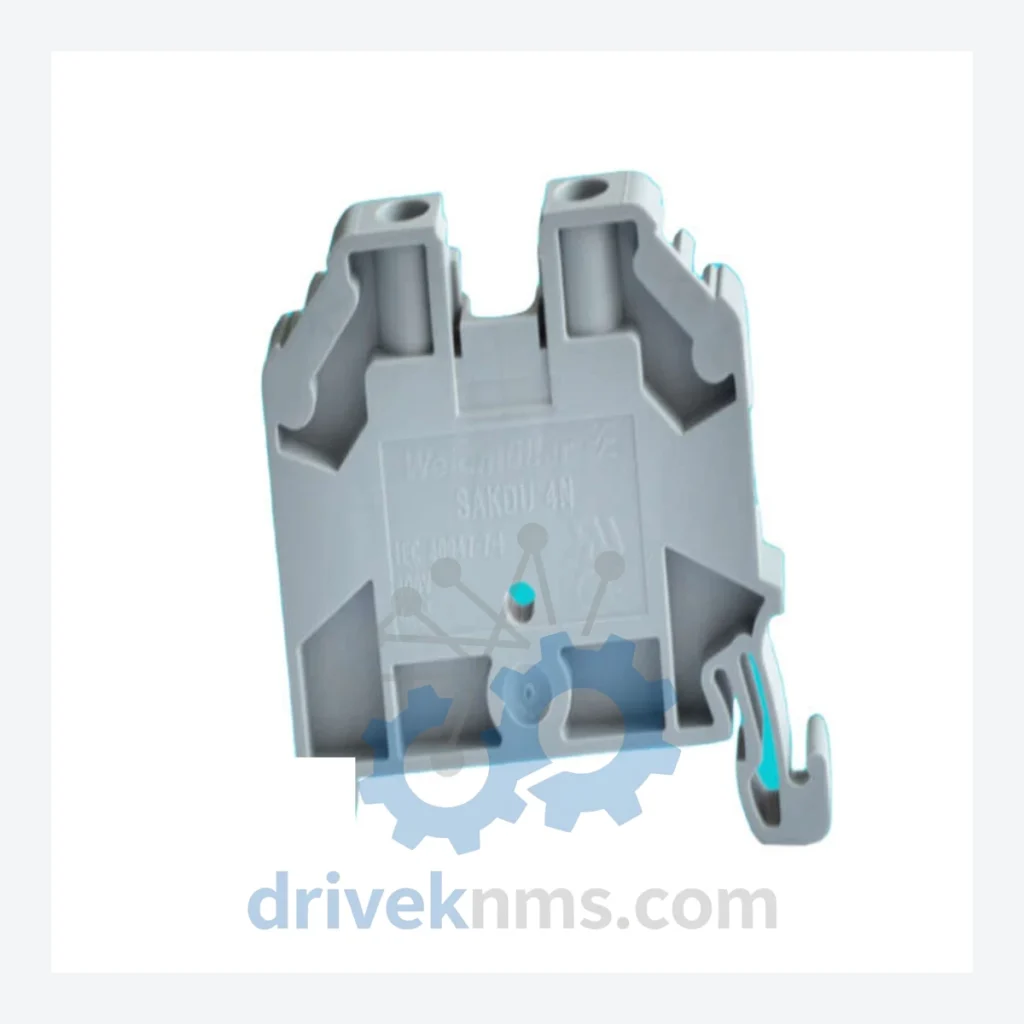

Weidmuller SAKDU Series Modules

Technical Dossier

Product Details And Specifications

Weidmuller SAKDU Series: Comprehensive Module Range and Technical Overview

The Weidmuller SAKDU series represents a standardized range of interface terminal blocks and signal conditioning modules widely deployed across global heavy industry sectors, including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and continuous-process chemical plants. The SAKDU series is engineered to IEC 60947-7-1 standards and is recognized for its modular, DIN-rail-mounted architecture that enables high-density field wiring termination within control cabinets. Its installed base spans legacy DCS backplanes from Honeywell, ABB, and Yokogawa systems, where SAKDU modules serve as the critical interface layer between field instrumentation and control system I/O cards. The SAKDU4, in particular, is a 4mm² cross-section disconnect terminal block used extensively in marshalling cabinets for 4–20mA analog signal loops and 24VDC discrete I/O circuits.

The Evolution of SAKDU Architecture

The SAKDU series originated as part of Weidmuller's SAK (Schraubanschluss-Klemme, or screw-connection terminal) product family, which has been in continuous production since the 1970s. Early generations used single-level screw termination with steel current bars. The DU suffix denotes a disconnect (trennbar) function integrated into the terminal body, allowing individual circuit isolation without rewiring — a critical feature for live-maintenance environments in process industries.

Over successive generations, Weidmuller introduced color-coded insulation variants (grey, blue, green/yellow for PE), improved vibration-resistant screw torque specifications, and UL 508A / CSA C22.2 No. 158 dual certifications to address North American market requirements. The SAKDU series is now considered a mature product line. While Weidmuller continues to supply these terminals, the broader industry trend has shifted toward push-in (PUSH IN) and spring-clamp (ZDU/ZSI) termination technologies. For facilities maintaining legacy SAKDU-based marshalling panels, long-term spare parts availability remains a primary procurement concern, and DriveKNMS maintains dedicated inventory for lifecycle extension support.

SAKDU Full Catalog & Functionalities (SKU List)

The following SKUs represent the core SAKDU disconnect terminal block range. Each model is differentiated by conductor cross-section, rated current, and application context:

SAKDU2.5: 2.5mm² disconnect terminal, 24A rated, standard control circuit termination
SAKDU4: 4mm² disconnect terminal, 32A rated, analog loop and 24VDC I/O marshalling
SAKDU6: 6mm² disconnect terminal, 41A rated, power distribution and motor control circuits
SAKDU10: 10mm² disconnect terminal, 57A rated, high-current field device termination
SAKDU16: 16mm² disconnect terminal, 76A rated, feeder and bus bar interface applications
SAKDU2.5 BL: 2.5mm² blue insulation, neutral conductor identification per IEC 60446
SAKDU4 BL: 4mm² blue insulation variant, neutral/return path marshalling
SAKDU2.5 GN/YE: 2.5mm² green/yellow, protective earth (PE) conductor termination
SAKDU4 GN/YE: 4mm² green/yellow PE variant, grounding bus in marshalling panels
SAKDU2.5 OR: 2.5mm² orange insulation, intrinsically safe (Ex-i) circuit identification
SAKDU4 OR: 4mm² orange insulation, IS circuit marshalling in Zone 1/Zone 2 areas
SAKDU2.5 RD: 2.5mm² red insulation, positive DC bus or alarm circuit identification
SAKDU4 RD: 4mm² red insulation, 24VDC positive rail in DCS I/O marshalling
SAKDU6 BL: 6mm² blue insulation, high-current neutral conductor in power panels
SAKDU10 GN/YE: 10mm² PE terminal, main earth bonding in large marshalling enclosures
SAKDU2.5 WH: 2.5mm² white insulation, signal circuit differentiation in complex wiring systems
SAKDU4 WH: 4mm² white insulation, thermocouple and RTD signal loop termination

Sourcing Hard-to-Find & Obsolete SAKDU Parts

DriveKNMS specializes in lifecycle extension procurement for the Weidmuller SAKDU series. As process plants operating on 20–40 year asset lifecycles require exact-match replacements to avoid panel rewiring costs, sourcing discontinued color variants and cross-section sizes from standard distribution channels becomes increasingly difficult. DriveKNMS maintains a verified inventory of SAKDU terminals sourced from factory-surplus, decommissioned panel stock, and authorized distributor overstock. All units are inspected for insulation integrity, screw thread condition, and current bar continuity before dispatch. Customers requiring bill-of-materials (BOM) matching for turnaround maintenance or capital project spares packages are encouraged to submit full lists for batch quotation.

Quality Control for the SAKDU Range

Each SAKDU terminal block processed through DriveKNMS undergoes a structured inspection protocol adapted to the mechanical and electrical characteristics of screw-disconnect terminals. Inspection steps include: visual examination of insulation body for cracking, UV degradation, or chemical exposure damage; screw torque verification against Weidmuller published specifications (typically 0.5–0.8 Nm for 2.5mm² variants); disconnect knife-blade continuity test to confirm low-resistance isolation switching; current bar pull-out force test to verify conductor retention under vibration conditions; and dielectric withstand verification at 2kV AC per IEC 60947-7-1 clause 8.3. Batch traceability records are maintained for all shipments to support plant maintenance documentation requirements.
