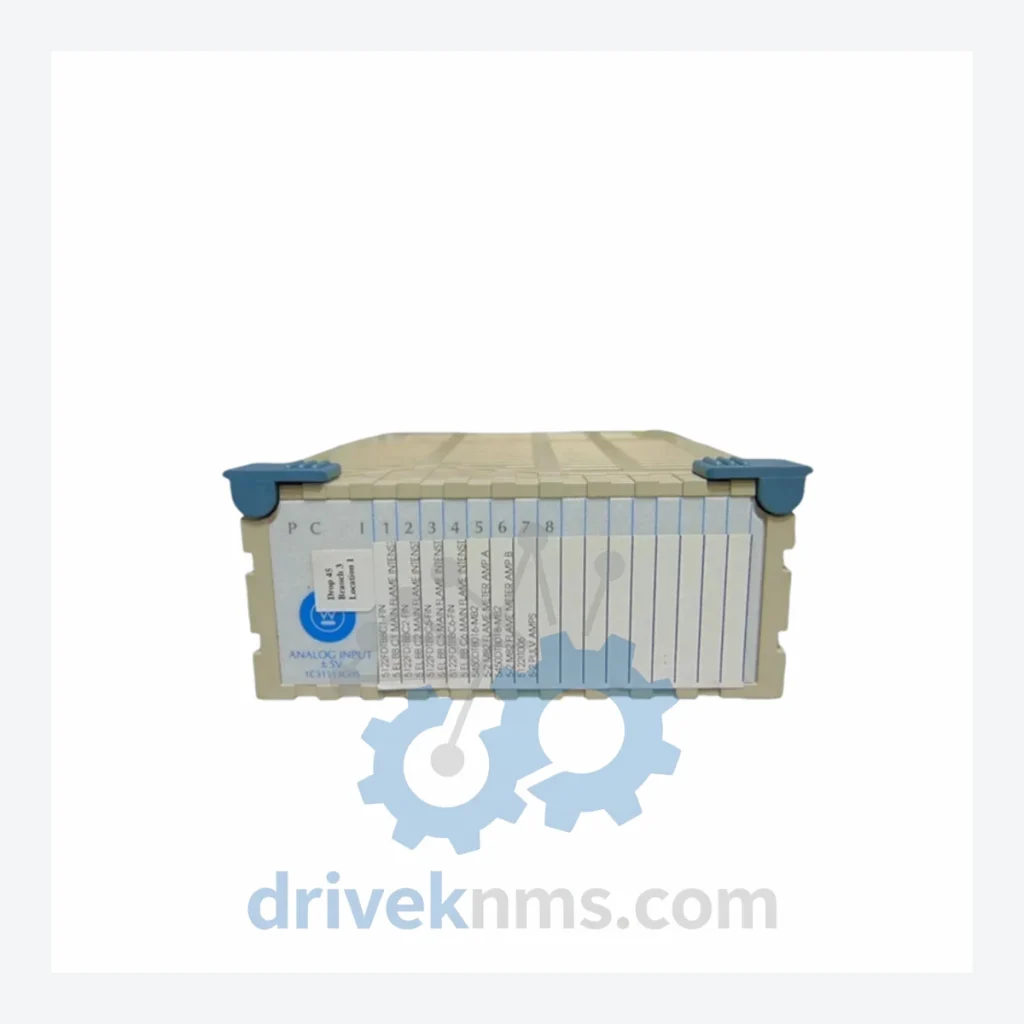

Westinghouse 1C31113G05 Analog Input Module – Obsolete WDPF Spare Part

When a single analog input module fails inside a Westinghouse WDPF distributed control system, the consequences extend far beyond the cost of the card itself. A forced migration to a modern DCS platform — including engineering redesign, I/O rewiring, operator retraining, and production downtime — routinely runs into the millions of dollars. For power generation facilities, chemical plants, and refineries still operating on WDPF infrastructure, the 1C31113G05 is not a commodity component. It is a load-bearing element of a control architecture that Westinghouse discontinued years ago, and replacement units are no longer manufactured.

DriveKNMS maintains verified physical stock of the 1C31113G05. This is not a catalog listing. If it appears here, inventory exists.

Technical Specifications

Note: Electrical parameters such as input range, channel count, and signal type vary by sub-revision. DriveKNMS will confirm exact specifications against your system configuration prior to shipment. No parameters are published here that cannot be verified against the physical unit.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was engineered for industrial-grade reliability in environments where control system uptime is measured in decades, not product cycles. Thousands of units remain in active service at power stations and process plants across North America, Europe, and Asia — long after Westinghouse's process control division was absorbed and the product line was sunset.

The 1C31113G05 analog input module sits at the data acquisition layer of the WDPF architecture. It converts field-level analog signals — temperature, pressure, flow — into the digital values that the WDPF supervisory layer acts upon. There is no generic substitute. The module communicates over the WDPF data highway using proprietary protocols. Inserting a non-native card requires firmware adaptation, I/O mapping changes, and in most cases, a full loop check campaign — work that can take weeks and carries significant commissioning risk.

For plant managers facing a failed or degraded 1C31113G05, the practical options are narrow: locate a verified spare, or begin a system replacement project that the capital budget was not designed to absorb this cycle. Sourcing a qualified spare from DriveKNMS is not a workaround. It is the operationally sound decision.

How to extend your WDPF system life by 5 to 10 years — a practical framework for plant management:

• Conduct a module-level criticality audit. Map every 1C31113G05 and related WDPF I/O cards in your system. Identify which loops are safety-critical, which are production-critical, and which are monitoring-only. This determines your minimum spare holding requirement.
• Establish a tiered spare parts buffer. For safety-critical loops, hold a minimum of two verified spare modules on-site. For production-critical loops, one on-site spare plus one off-site sourced spare (such as through DriveKNMS) is a defensible standard. The cost of holding spares is a fraction of one day of unplanned downtime.
• Schedule proactive module rotation. Analog input modules in continuous service accumulate thermal stress on passive components. A rotation program — pulling modules during planned outages, bench-testing them, and returning refurbished units to service — extends the effective service life of your existing hardware pool.
• Document firmware and configuration baselines. Before any module swap, capture the existing configuration. WDPF modules carry configuration data that must be preserved. A disciplined change management process prevents commissioning errors during emergency replacements.
• Engage a specialist supplier before the failure occurs. The worst time to source an obsolete module is during an unplanned outage. Establishing a supply relationship with DriveKNMS now — including confirming stock availability and lead times — converts a potential crisis into a managed maintenance event.

Plants that apply this framework consistently report that WDPF systems originally scheduled for replacement within three years remain in productive service for seven to ten years beyond that initial projection. The capital expenditure is deferred. The operational knowledge embedded in the existing system is preserved. The risk of a rushed, poorly integrated migration is avoided.

Condition & Reliability Assurance

Sourcing obsolete industrial control hardware carries inherent risk. DriveKNMS applies a five-step qualification process to every 1C31113G05 unit before it leaves our facility.

1. Visual and mechanical inspection. Full examination of the PCB, connector pins, and housing. Units with evidence of physical damage, burn marks, or corrosion on I/O pins are rejected at this stage.
2. Electrolytic capacitor assessment. Capacitor aging is the primary failure mode in legacy analog modules. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped with specification-matched components or removed from inventory.
3. Firmware and label verification. The firmware revision and hardware revision markings are recorded and cross-referenced against the customer's system configuration. Revision mismatches are flagged before shipment, not after installation.
4. Functional power-on test. Where test fixtures are available for the WDPF platform, units are powered and basic functional checks are performed. Results are logged and accompany the shipment.
5. Anti-static packaging and documentation. Units are packaged in ESD-safe materials. A condition report and any test records are included in the shipment documentation.

Units that do not pass all five stages are not sold as functional spares. They may be retained for component harvesting only.

Key Features for System Maintenance

• Drop-in replacement compatibility. The 1C31113G05 installs directly into the existing WDPF card slot. No backplane modification, no rewiring, no changes to the supervisory configuration are required for a same-revision swap.
• No reprogramming required. The WDPF system reads module identity and configuration from the supervisory database, not from the module itself. A qualified replacement restores loop function without engineering intervention.
• Avoids system-wide engineering costs. A forced migration triggered by unavailable spares requires I/O redesign, new cabinet engineering, cable modifications, and a full FAT/SAT cycle. The cost of a verified spare module is measured in thousands. The cost of the migration it prevents is measured in millions.
• Preserves operational continuity. Operators continue working with the interface and alarm structures they know. There is no retraining burden, no parallel-run period, and no risk of configuration errors introduced during a rushed cutover.

FAQ

What warranty applies to an obsolete module like the 1C31113G05?
DriveKNMS provides a 12-month warranty on all units sold as functional spares, covering defects identified under normal operating conditions. Units sold as refurbished carry the same warranty period. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not a counterfeit?
All units in DriveKNMS inventory are sourced from documented industrial decommissioning projects or authorized surplus channels. Physical markings, PCB construction, and component profiles are verified against known-good reference units. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any WDPF system still in active production service, holding at least one on-site spare per critical loop type is the minimum defensible position. Given that the 1C31113G05 is no longer manufactured, each unit sourced today represents a finite reduction in future availability. Procurement teams managing long-term asset protection programs typically secure a multi-unit buffer when stock is confirmed available.

Can DriveKNMS source other WDPF modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial control hardware across multiple legacy platforms. If you have a broader WDPF spare parts requirement, contact us with your full BOM and we will assess availability across our network.
