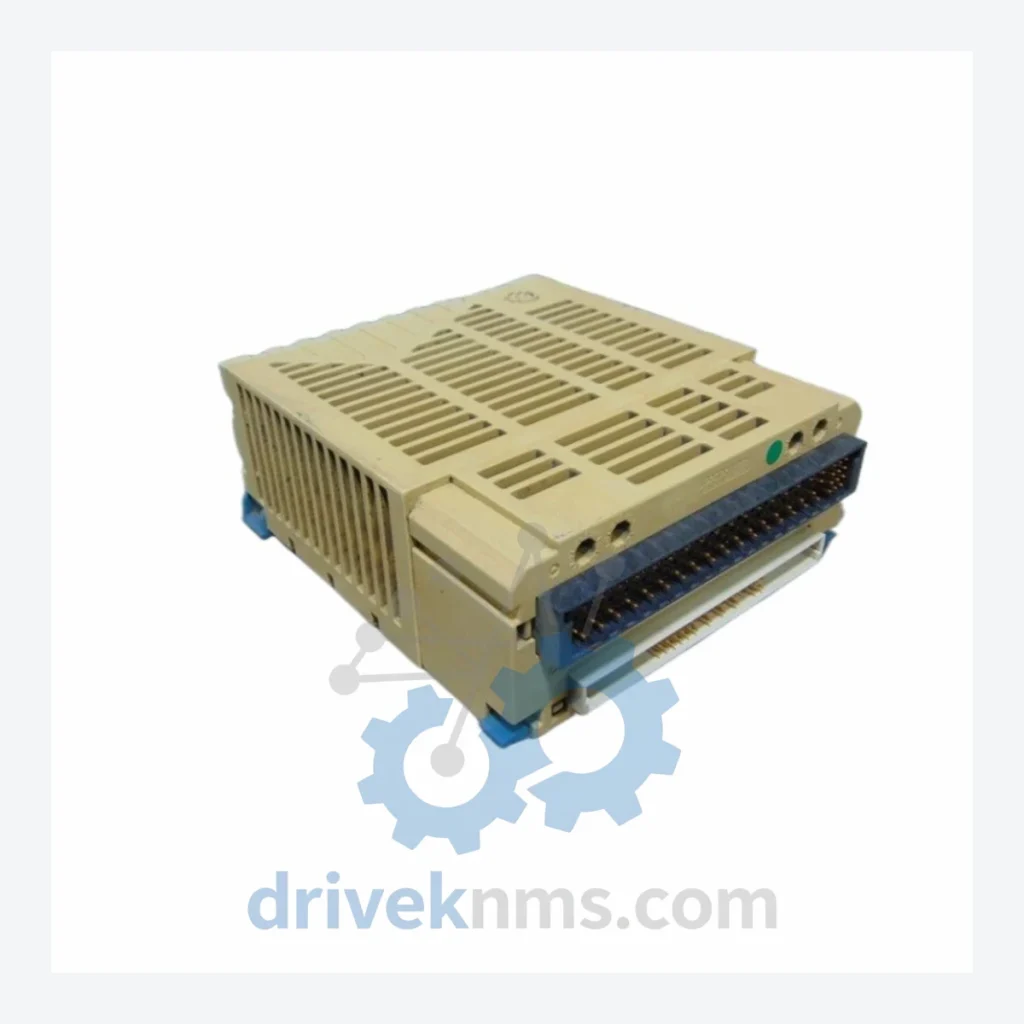

Westinghouse 5X00062G01 HART Analog Output Module – Obsolete WDPF/Ovation Spare Part

When a HART Analog Output Module fails in a legacy Westinghouse WDPF or Ovation distributed control system, the consequences extend far beyond a single I/O card. The entire control loop it governs — valve positioning, flow regulation, pressure control — goes offline. For a refinery, power generation facility, or chemical plant still operating on WDPF infrastructure, the cost of an unplanned shutdown can reach six to seven figures per day. A full DCS migration to a modern platform carries engineering, commissioning, and revalidation costs that routinely exceed USD $2–5 million per unit. The Westinghouse 5X00062G01 is no longer manufactured. DriveKNMS holds verified physical stock of this module. Securing one unit now is not a procurement decision — it is an asset protection decision.

Technical Specifications

Note: Detailed electrical parameters are verified against the physical unit prior to shipment. No unconfirmed specifications are published. Contact us for a full datasheet.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was one of the most widely deployed distributed control systems in power generation and heavy process industries through the 1980s and 1990s. Thousands of facilities worldwide built their control architecture around WDPF hardware. When Emerson acquired the platform, long-term parts support was progressively wound down. The 5X00062G01 HART Analog Output Module sits at a critical junction in these systems: it translates digital control commands into HART signals that drive field instruments — control valves, positioners, and actuators.

There is no software patch for a failed output module. There is no firmware workaround. The physical card must be replaced with an identical or fully compatible unit. Substituting a non-original module in a validated control loop requires loop re-engineering, instrument re-calibration, and in regulated industries, a full change management and revalidation cycle. The engineering cost of that process alone typically exceeds the cost of sourcing ten original spare modules. Facilities that maintain a buffer stock of critical I/O cards like the 5X00062G01 consistently demonstrate lower unplanned downtime rates and longer asset lifecycles — often extending operational life of the DCS by 5 to 10 years beyond the OEM stated support window.

If you are evaluating whether to migrate your WDPF system or extend its life, the calculus is straightforward. A migration project displaces your engineering team for 18–36 months, introduces commissioning risk, and requires operator retraining. A strategic spare parts inventory — covering critical I/O modules, power supplies, and communication cards — can defer that capital expenditure while maintaining full process control capability. The 5X00062G01 is one of the highest-priority modules to stock, given its role in analog output loops and its confirmed obsolete status. Facilities that have adopted a critical card buffer strategy report deferring DCS replacement by an average of 7 years, at a fraction of the migration cost.

Condition and Reliability Assurance

Sourcing obsolete industrial hardware carries inherent risk. DriveKNMS applies a 5-step quality assurance process to every unit before shipment:

• Step 1 – Visual and Physical Inspection: Full board inspection for physical damage, burn marks, cracked solder joints, and connector pin integrity. Corroded or bent pins are documented and addressed before any further testing.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in legacy I/O modules stored for extended periods. Each unit is assessed for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either recapped with equivalent-spec components or quarantined.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target system. Mismatched firmware is a documented cause of intermittent faults in WDPF environments.
• Step 4 – Functional Bench Test: Modules are powered and tested for basic operational response where test fixtures are available for the platform.
• Step 5 – Packaging and ESD Protection: All units are shipped in anti-static packaging with desiccant. Long-term storage units are vacuum-sealed where appropriate.

Key Features for System Maintenance

• Drop-in Replacement: The 5X00062G01 installs directly into the existing WDPF/Ovation chassis slot. No backplane modification, no wiring changes.
• No Reprogramming Required: Configuration is held in the DCS controller, not the I/O module. Swapping the card does not require re-engineering the control strategy.
• Avoids Engineering Rework Costs: Using an original-spec module eliminates the need for loop re-certification, change management documentation, and revalidation — costs that can run $50,000–$200,000 per loop in regulated facilities.
• HART Protocol Integrity: Maintains full HART communication capability with existing field instruments, preserving diagnostic data and device management functions.
• Immediate Deployment: Stock on hand. No lead time associated with OEM re-manufacture queues or broker sourcing delays.

FAQ

Q: What warranty applies to an obsolete module like the 5X00062G01?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty options are available — contact us to discuss terms based on your application.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through documented industrial channels. Physical markings, board revision codes, and component profiles are cross-referenced against known-good units. We do not sell units that fail authentication checks.

Q: Is the unit new or refurbished?
A: We will specify condition clearly at the time of quotation — New Old Stock (NOS), tested surplus, or professionally refurbished. You will know exactly what you are receiving before purchase.

Q: Should we stock more than one unit?
A: For any obsolete module in a critical control loop, the standard recommendation is a minimum of two units on-site — one active spare and one long-term reserve. Given confirmed obsolescence of the 5X00062G01, availability will only decrease over time. Bulk pricing is available for multi-unit orders.

Q: Can you source other Westinghouse WDPF or Ovation spare parts?
A: Yes. DriveKNMS specializes in legacy DCS and PLC spare parts across multiple platforms. Contact us with your full BOM or critical parts list for a consolidated sourcing assessment.
