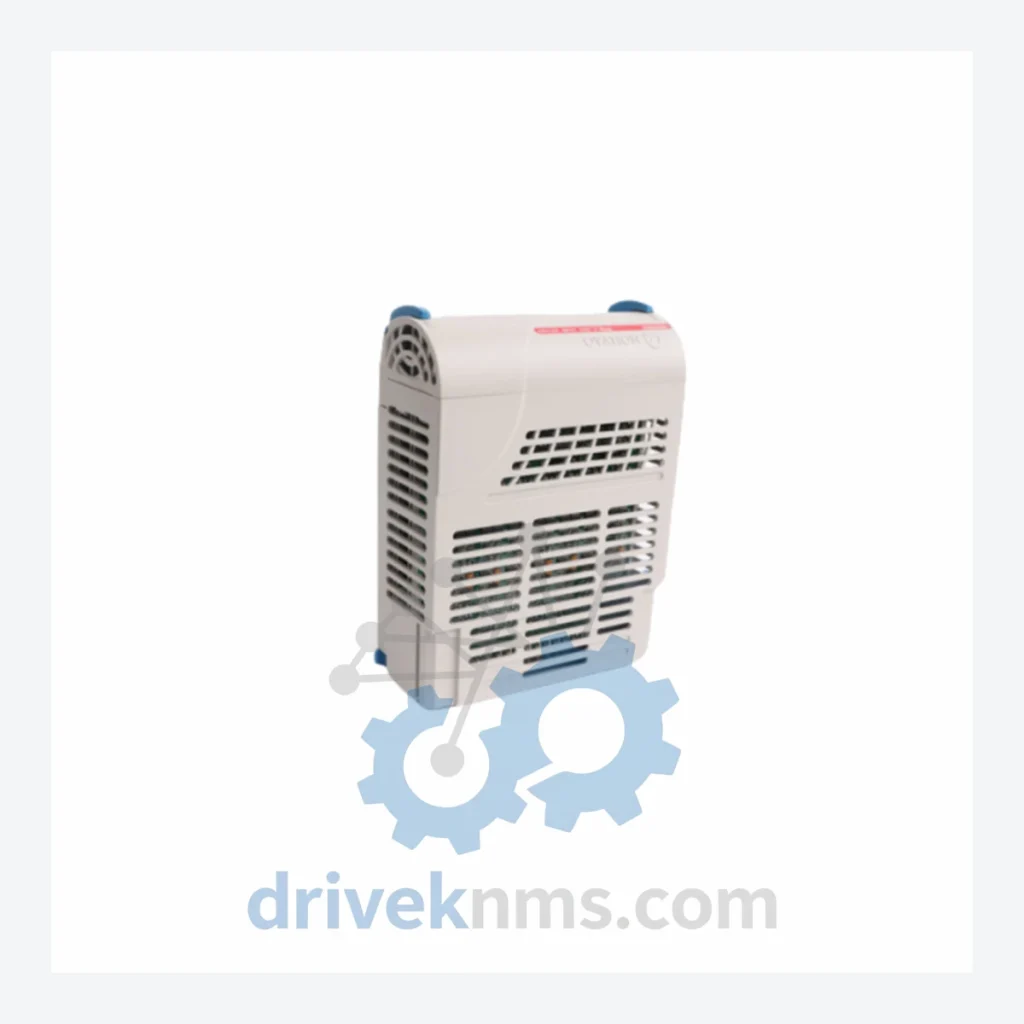

Westinghouse 5X00070G01 Analog Input Module – Obsolete WDPF Series Spare Part

When a single analog input module fails in a Westinghouse WDPF distributed control system, the consequences extend far beyond the cost of the part itself. A forced migration to a modern DCS platform — including engineering redesign, I/O rewiring, operator retraining, and production downtime — routinely runs into the hundreds of thousands, and in large continuous-process facilities, into the millions of dollars. The 5X00070G01 is a discontinued module with no direct OEM replacement. DriveKNMS maintains verified stock of this module specifically to protect facilities from that scenario.

Technical Specifications

Note: Electrical parameters such as input range, channel count, and signal type are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was widely deployed across power generation, petrochemical, and heavy industrial facilities throughout the 1980s and 1990s. Many of these installations remain operational today — not because operators are unaware of the system's age, but because the cost and risk of replacement outweigh the cost of maintenance. The 5X00070G01 analog input module sits at the data acquisition layer of these systems, converting field-level process signals into digital values the controller can act on. There is no generic substitute. A failed module without a verified replacement means either a cold standby shutdown or an emergency engineering engagement — neither of which is acceptable during active production.

Facilities running WDPF systems have, in many cases, extended their operational life by 10 to 15 years beyond the original design horizon. The strategy is not complicated: maintain a controlled inventory of high-failure-risk modules, establish a qualified refurbishment source, and document the system thoroughly enough that any future migration can be executed on the facility's schedule rather than in response to a crisis. The 5X00070G01 is consistently among the modules that determine whether that strategy succeeds or fails.

How to Extend Your Automation Asset Life by 5–10 Years Without a Full System Overhaul

For plant managers and maintenance engineers operating legacy Westinghouse WDPF infrastructure, the following approach has been validated across multiple long-running industrial sites:

• Conduct a module-level criticality audit. Identify which I/O modules, if failed, would cause a full unit shutdown versus a partial process degradation. The 5X00070G01 typically falls into the high-criticality category due to its role in analog signal acquisition.
• Establish a minimum spare holding policy. For modules with no active OEM supply chain, a minimum of two verified spares per critical loop is a defensible standard. The cost of holding two spare modules is a fraction of one hour of unplanned downtime.
• Source from verified secondary market suppliers. Not all surplus inventory is equal. Modules that have been stored improperly, subjected to electrostatic discharge, or have degraded electrolytic capacitors will fail prematurely. Require documentation of storage conditions and QA testing before accepting any spare into your critical inventory.
• Freeze firmware and configuration baselines. For WDPF systems, configuration drift is a common cause of integration failures when swapping modules. Maintain a documented baseline of firmware versions and configuration parameters for every critical module type.
• Plan migration on your terms. A facility that maintains adequate spare inventory has the leverage to plan a system migration during a scheduled outage window, rather than under emergency conditions. That difference in timing alone can reduce migration costs by 30–50%.

Condition & Reliability Assurance

Obsolete modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a structured 5-step QA process to all refurbished units before they are offered for sale:

1. Visual and mechanical inspection: Physical examination for board damage, pin corrosion, connector wear, and evidence of prior field failure or improper repair.
2. Electrolytic capacitor assessment: Capacitor aging is the primary failure mode in modules of this era. Units with visibly degraded or out-of-specification capacitors are either recapped or removed from inventory.
3. Firmware version verification: Where applicable, firmware revision is confirmed and documented. Mismatched firmware versions between replacement modules and the host system are a known source of integration failures.
4. Pin and connector integrity check: All I/O pins and backplane connectors are inspected for oxidation, mechanical deformation, and contact resistance.
5. Functional burn-in test: Units are powered and tested under load conditions prior to shipment. Only modules that pass all five stages are released for sale.

Key Features for System Maintenance

• Drop-in replacement: The 5X00070G01 installs directly into the existing WDPF backplane slot with no hardware modification required.
• No reprogramming required: The host DCS controller recognizes the module by slot address and module type. Replacement does not require controller reconfiguration under standard conditions.
• Avoids engineering redesign costs: Using a verified like-for-like replacement eliminates the need for I/O remapping, loop recalibration, or safety system revalidation that would accompany a platform migration.
• Maintains system certification integrity: In regulated industries, replacing a module with a non-equivalent substitute may trigger a revalidation requirement. A like-for-like replacement with documented provenance avoids this exposure.

Frequently Asked Questions

What warranty applies to obsolete modules?
DriveKNMS provides a 12-month warranty on all refurbished units and a 3-month warranty on new surplus units. Warranty covers functional failure under normal operating conditions and excludes damage resulting from installation error or electrical overstress.

How do I confirm the unit is new or properly refurbished?
Each unit shipped by DriveKNMS is accompanied by a QA inspection record documenting the five-step process described above. New surplus units include original packaging where available. Refurbished units are clearly labeled with refurbishment date and technician reference.

Should I purchase more than one unit?
For any module classified as obsolete with no active OEM supply, holding a minimum of two spares per critical application is standard practice. Lead times on secondary market inventory are unpredictable. Once current stock is depleted, the next available unit may require months to source.

Can you source other WDPF modules?
Yes. DriveKNMS specializes in legacy Westinghouse WDPF and related platform components. Contact us with your full bill of materials for a consolidated availability check.
