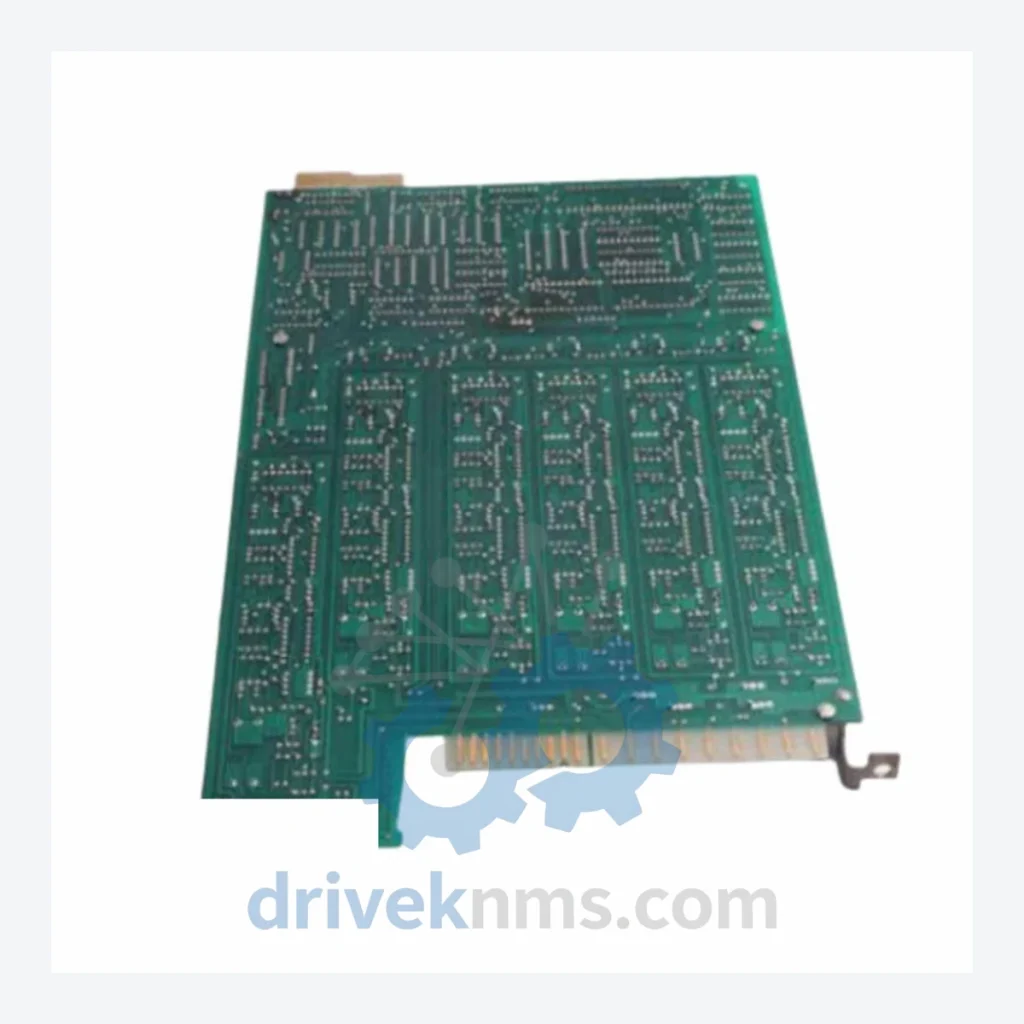

Westinghouse 5X00109G02 Electronics Module – Obsolete WDPF Spare Part

When a single electronics module fails inside a Westinghouse WDPF distributed control system, the consequences extend far beyond the cost of the part itself. A forced migration to a modern DCS platform — Emerson Ovation, ABB Ability, or Honeywell Experion — carries engineering, commissioning, and production-loss costs that routinely exceed USD $2–5 million per unit. The 5X00109G02 is a discontinued module with no current OEM replacement path. DriveKNMS maintains verified physical stock of this component, sourced through controlled industrial channels, for facilities that have chosen to protect their existing WDPF infrastructure rather than absorb the cost of premature system retirement.

Technical Specifications

Note: Electrical parameters specific to this module are not published here to prevent misapplication. Contact our technical team for verified datasheet confirmation before ordering.

Solving the Discontinued Hardware Crisis

The Westinghouse WDPF platform was widely deployed across power generation, petrochemical, and heavy process industries from the 1980s through the early 2000s. When Emerson acquired Westinghouse's process control division, the WDPF product line entered end-of-life status. Facilities running these systems now face a structural problem: the control logic, operator interfaces, and field wiring are deeply integrated into plant infrastructure built around WDPF architecture. Replacing the DCS is not a software upgrade — it is a capital project.

The 5X00109G02 electronics module sits within this architecture as a functional node that cannot be substituted with a generic alternative. Its communication protocols, backplane interface, and signal handling are specific to the WDPF environment. When this module fails, the options narrow quickly: locate a verified replacement unit, or begin the migration process. For facilities operating on maintenance budgets rather than capital budgets, the replacement unit is the only viable path.

Extending the operational life of a WDPF system by 5 to 10 years through strategic spare parts management is a documented practice in asset-intensive industries. The cost model is straightforward: a curated inventory of critical modules — including the 5X00109G02 — purchased at current market rates represents a fraction of the engineering and downtime costs associated with a full DCS replacement. Plant managers who have executed this strategy report that a single avoided migration event recovers the entire spare parts investment many times over.

The practical approach involves identifying the five to eight module types with the highest failure probability in your specific WDPF configuration, securing two to three units of each, and storing them under controlled conditions. This is not stockpiling — it is structured asset protection with a defined return on investment.

Condition & Reliability Assurance

Every 5X00109G02 unit processed by DriveKNMS passes a five-stage quality verification protocol before it is offered for sale. This process is designed specifically for legacy industrial electronics, where age-related degradation follows predictable failure modes.

• Stage 1 – Visual and Mechanical Inspection: Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure.
• Stage 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in electronics of this era. Each unit is evaluated for capacitor condition; units showing measurable degradation are either recapped or rejected.
• Stage 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented to ensure compatibility with the target WDPF system version.
• Stage 4 – Pin and Contact Integrity Check: All connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are treated or the unit is rejected.
• Stage 5 – Functional Bench Test: Units are powered and tested under controlled conditions to confirm baseline operational status prior to shipment.

Units that do not pass all five stages are not sold. Documentation of the QA process is available upon request for facilities with incoming inspection requirements.

Key Features for System Maintenance

• Drop-in Replacement: The 5X00109G02 installs directly into the existing WDPF backplane slot. No hardware modification is required.
• No Reprogramming Required: The module operates within the existing WDPF control configuration. There is no requirement to modify PLC logic, HMI screens, or field instrument calibration.
• No Engineering Mobilization: Unlike a DCS migration, installing a replacement module does not require a controls engineer on-site for commissioning. Maintenance personnel familiar with the WDPF system can execute the swap.
• Immediate Availability: Stock is held at our warehouse and can be shipped within 24–48 hours of order confirmation, minimizing production downtime during an unplanned failure event.
• Cost Containment: The total cost of a replacement module — including shipping and any incoming inspection — is measured in thousands of dollars, not millions. The financial case for maintaining WDPF spares inventory is not ambiguous.

FAQ

What warranty applies to a discontinued module like the 5X00109G02?
DriveKNMS provides a 12-month warranty on all units sold, covering functional failure under normal operating conditions. Warranty terms are provided in writing with each shipment.

How do I know the unit is genuine and not a counterfeit?
All units are sourced from verifiable industrial channels — decommissioned plant inventories, authorized surplus dealers, and controlled OEM overstock. We do not source from unverified secondary markets. Physical markings, board revision codes, and component dates are cross-referenced during the QA process.

Should I buy one unit or build a buffer stock?
For any WDPF system still in active production service, we recommend holding a minimum of two units of each critical module type. The 5X00109G02 is not being manufactured. Current market availability will decrease over time as existing surplus is consumed. Purchasing buffer stock now, while verified units are available, is the lower-risk position.

Can you source other WDPF modules beyond the 5X00109G02?
Yes. DriveKNMS specializes in the full range of Westinghouse WDPF spare parts. Contact us with your complete bill of materials and we will advise on availability and lead times.
