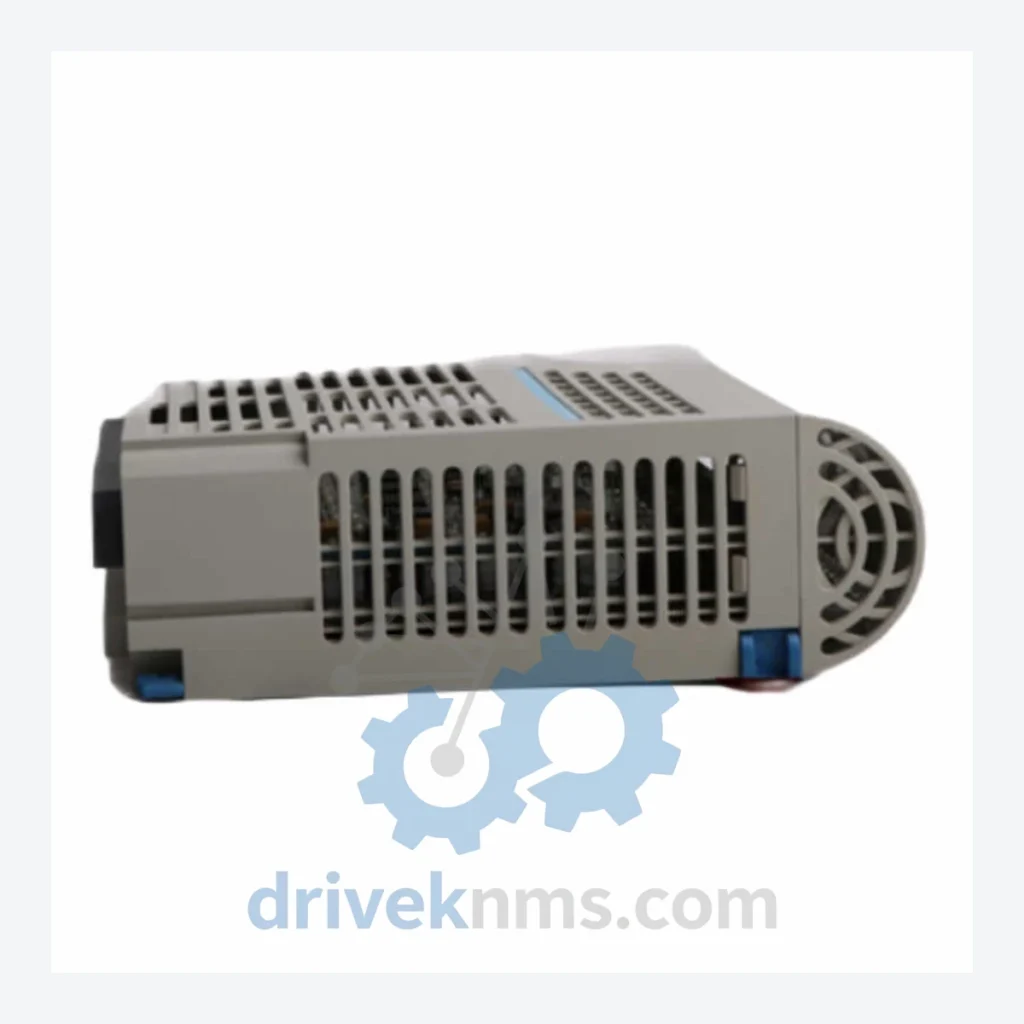

Westinghouse 5X00226G01 I/O Interface Module – Obsolete Ovation Spare Part

When a single I/O interface module fails inside a Westinghouse Ovation or WDPF distributed control system, the downstream consequences are not limited to a maintenance work order. For power generation facilities and process plants still operating on this platform, an unresolved hardware fault can trigger a full unit trip, force an unplanned outage, and place the plant in a position where management must choose between sourcing a discontinued component or committing to a multi-million-dollar control system migration. Engineering assessments for a full Ovation-to-modern-DCS migration routinely exceed USD 2–5 million when factoring in hardware, software licensing, loop re-engineering, operator retraining, and commissioning downtime. The 5X00226G01 is one of the modules that stands between your plant and that decision. DriveKNMS maintains verified physical stock of this discontinued module. This is not a catalog listing — it is a confirmed inventory position.

Technical Specifications

Note: Specific electrical parameters (voltage rails, signal range, backplane pinout) vary by system revision. DriveKNMS does not publish unverified specifications. Contact us with your system revision for confirmed compatibility data.

Solving the Discontinued Hardware Crisis

The Westinghouse Ovation and WDPF platforms were deployed extensively across power generation assets from the 1980s through the early 2000s. Many of these installations remain in active service today, operating critical generation units with no near-term retirement plan. The OEM discontinued hardware support for this product line, but the plants themselves have not been decommissioned. This creates a structural supply problem: demand for spare modules persists, but the manufacturing pipeline no longer exists.

The 5X00226G01 I/O interface module sits at the communication boundary between field instrumentation and the DCS processor. Its failure does not degrade performance gradually — it removes I/O points from scan, which in a power plant context means loss of visibility into critical process variables. Operators cannot safely run a unit blind. The module is not interchangeable with modern I/O hardware without a full engineering redesign of the I/O architecture, which itself requires a system-wide migration project.

For plant managers facing this situation, the calculus is straightforward: a verified spare module sourced today costs a fraction of one day of forced outage revenue, and a fraction of a percent of a full migration budget. The strategic value of maintaining a physical spare inventory for modules like the 5X00226G01 is not theoretical — it is the difference between a two-hour maintenance swap and a six-month capital project.

How to extend your Ovation/WDPF asset life by 5–10 years without a full migration:

• Audit your critical single points of failure. Identify every module in your DCS cabinet that has no installed spare and no available replacement on the open market. The 5X00226G01 is a known gap for many sites.
• Build a tiered spare parts buffer. Maintain at minimum one cold spare for each discontinued module type. For high-criticality I/O positions, two spares is the defensible standard.
• Negotiate long-lead sourcing contracts. Obsolete hardware availability on the secondary market is not stable. Prices and stock levels shift with each plant decommissioning cycle. Locking in supply now is a risk management decision, not a procurement convenience.
• Document firmware and configuration baselines. Before any module swap, ensure your configuration backup is current and version-matched. A hardware replacement that introduces a firmware mismatch can create a more complex fault than the original failure.
• Engage a specialist supplier with physical stock verification. Catalog listings without confirmed inventory are a liability in an emergency. DriveKNMS operates with physical stock confirmation before any order is accepted.

Condition & Reliability Assurance

Sourcing discontinued industrial control hardware carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every unit before it is offered for sale or shipment.

• Step 1 – Visual and mechanical inspection: Full external inspection for physical damage, connector pin condition, PCB contamination, and label integrity. Units with evidence of field damage or improper handling are rejected at intake.
• Step 2 – Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode in legacy industrial electronics. Each unit is assessed for capacitor condition. Units showing bulging, leakage, or ESR deviation are either recapped by qualified technicians or removed from inventory.
• Step 3 – Firmware version verification: Where accessible, firmware revision is confirmed and documented. Customers are provided with the firmware version on request to allow compatibility verification against their system baseline.
• Step 4 – Pin and connector corrosion inspection: Backplane connectors and I/O terminal interfaces are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are treated or the unit is rejected.
• Step 5 – Functional burn-in (where applicable): Units are powered and functionally tested where test fixtures are available for the platform. Test results are documented and available to customers on request.

Key Features for System Maintenance

• Drop-in replacement: The 5X00226G01 installs directly into the existing Ovation/WDPF backplane slot. No hardware modification to the cabinet or adjacent modules is required.
• No reprogramming required: The DCS configuration resides in the controller, not the I/O module. A module swap does not require re-engineering of control logic, loop tuning, or operator interface updates.
• Avoids engineering reconstruction costs: Replacing a like-for-like module eliminates the need for I/O re-mapping, cable re-termination, and system re-commissioning that would accompany a platform migration.
• Immediate operational restoration: With a verified spare on-site, mean time to repair is measured in hours, not weeks. This is the operational argument for pre-positioning critical spares before a failure occurs.
• Supports extended asset life planning: Plants operating on a 5–10 year extended life plan for their existing DCS can use verified spare inventory as a core pillar of that strategy, deferring capital expenditure while maintaining operational reliability.

FAQ

Q: What warranty applies to a discontinued module like the 5X00226G01?
A: DriveKNMS provides a 12-month warranty on all units sold, covering functional failure under normal operating conditions. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects, authorized distributors, or verified surplus channels. Physical inspection records and, where available, original packaging documentation are maintained. We do not source from unverified secondary aggregators.

Q: Should I buy one spare or multiple units?
A: For a module in active service with no OEM replacement path, the standard recommendation is a minimum of one cold spare per installed unit. For plants with multiple Ovation/WDPF cabinets or extended life plans beyond five years, two to three spares per module type is a defensible inventory position. Secondary market availability for this part number is not guaranteed to persist.

Q: Can you confirm compatibility with my specific system revision before I order?
A: Yes. Provide your system revision, cabinet configuration, and any existing module labeling details, and DriveKNMS will confirm compatibility before the order is processed. We do not ship on assumed compatibility.
