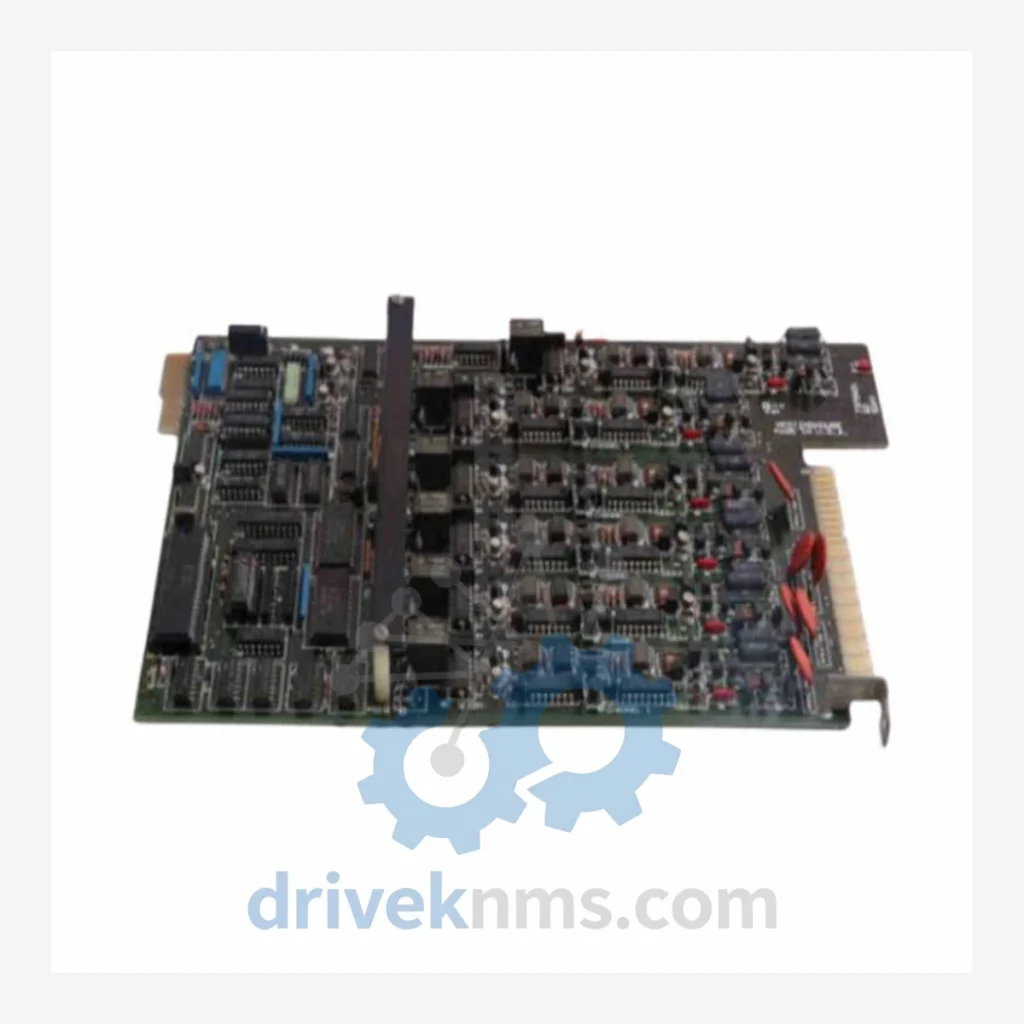

Westinghouse Ovation 5X00 Modules

Technical Dossier

Product Details And Specifications

Westinghouse Ovation 5X00 Series: Comprehensive Module Range and Technical Overview

The Westinghouse Ovation 5X00 series represents one of the most widely deployed Distributed Control System (DCS) platforms in global heavy industry. Originally developed by Westinghouse Electric Corporation and subsequently maintained under Emerson Electric following the 1999 acquisition, the Ovation platform has accumulated decades of installed base across coal-fired and nuclear power plants, petroleum refineries, chemical processing facilities, and pulp & paper mills. Estimates place active Ovation installations in over 60 countries, with a significant proportion of units still operating on hardware manufactured between 1995 and 2010. The 5X00 module prefix designates the core I/O, controller, communication, and power supply cards that form the backbone of the Ovation rack architecture. Procurement managers responsible for maintaining these systems face a consistent challenge: the platform is mature, OEM support windows are narrowing, and lead times for genuine replacement modules from authorized channels can extend to 12–26 weeks. This page serves as a structured reference index for sourcing, identifying, and evaluating 5X00 series modules.

The Evolution of Ovation 5X00 Architecture

The Ovation DCS architecture evolved through three distinct hardware generations. The first generation (mid-1990s) introduced the modular rack-based I/O concept with parallel backplane communication. The second generation (early 2000s) transitioned to a high-speed serial backplane bus, improving noise immunity and scan rates — this is the era in which the majority of 5X00-prefix modules were standardized. The third generation introduced Ethernet-based I/O and virtualized controller options, but backward compatibility with 5X00 hardware was maintained only partially. As a result, plants that upgraded controller firmware without replacing I/O hardware frequently encounter compatibility constraints when sourcing replacement modules. Key compatibility considerations include: backplane revision levels, firmware version dependencies on specific module revisions (G01 vs G02 vs G04 suffix), and rack slot addressing conflicts when mixing module generations. Procurement teams must verify the exact G-suffix (revision code) when ordering replacements — a 5X00273G01 and a 5X00273G02 are not interchangeable in all configurations.

Ovation 5X00 Full Catalog & Functionalities (SKU List)

The following SKUs represent the most commonly sourced modules within the Ovation 5X00 platform, categorized by functional type. Each entry reflects verified module classifications based on Emerson/Westinghouse technical documentation.

Analog Input (AI) Modules

5X00119G01: 16-channel analog input module, 4–20 mA / 1–5 V, HART-compatible
5X00106G09: Analog input module, high-density configuration, thermocouple/RTD support
5X00109G02: Analog input, isolated channels, used in high-interference environments
5X00058G01: Legacy analog input card, early Ovation rack, 12-bit resolution

Digital Input (DI) Modules

5X00070G04: 32-channel digital input, 24 VDC, high-speed scan
5X00063G01: Digital input module, 120 VAC field voltage, plant-side isolation
1C31227G01: Digital input, 16-channel, used in legacy Ovation I/O racks
1C31194G01: Digital input module, compatible with early Ovation backplane revisions

Digital Output (DO) Modules

5X00273G01: 16-channel digital output, 24 VDC, solid-state relay configuration
5X00301G01: Digital output module, high-current capacity, used in motor control applications
5X00300G01: Digital output, 120 VAC, triac-based switching

Controller / CPU Modules

5X00105G14: Ovation controller electronics module, primary CPU card for mid-generation racks
5X00226G02: Controller interface module, manages I/O bus arbitration
5X00241G02: Advanced controller module, dual-redundancy capable

Communication & Network Adapters

5X00357G04: Ovation network interface card, Ethernet/OPC connectivity
1C31234G01: Serial communication module, Modbus RTU / legacy fieldbus support

Sourcing Hard-to-Find & Obsolete Ovation 5X00 Parts

The Ovation 5X00 series has entered the late-maintenance phase of its product lifecycle. Emerson has progressively reduced factory repair services and new-build availability for modules manufactured prior to 2008. For procurement managers, this creates three operational risks: extended downtime during unplanned failures, inflated spot-market pricing from distributors holding limited stock, and counterfeit module risk when sourcing from unverified channels. DriveKNMS maintains a dedicated inventory network for Ovation 5X00 modules, sourced from decommissioned plant equipment, certified refurbishers, and authorized surplus dealers. All modules undergo functional verification before shipment. For obsolete variants where new stock is unavailable, DriveKNMS provides documented alternative sourcing options and cross-reference analysis to identify compatible replacement revisions. Typical lead time for in-stock 5X00 modules: 3–7 business days. For sourced/located items: 2–4 weeks. Emergency procurement support is available for unplanned outage scenarios.

Quality Control for the Ovation 5X00 Range

The Ovation 5X00 backplane uses a proprietary high-speed serial bus that requires precise signal timing between modules. Standard bench testing is insufficient to validate module integrity — functional testing must replicate the actual backplane communication environment. DriveKNMS applies the following QC protocol to all 5X00 modules: (1) Visual inspection for capacitor degradation, PCB corrosion, and connector wear; (2) Powered rack insertion test using a reference Ovation rack to verify backplane handshake and module enumeration; (3) Channel-level functional test for all I/O modules — each analog channel is verified against calibrated signal sources; (4) Firmware revision identification and documentation, provided with shipment; (5) 72-hour burn-in test for controller and CPU modules. All modules are shipped with a 12-month warranty covering functional failure under normal operating conditions. Export documentation, CE/RoHS compliance declarations, and country-of-origin certificates are provided upon request.
