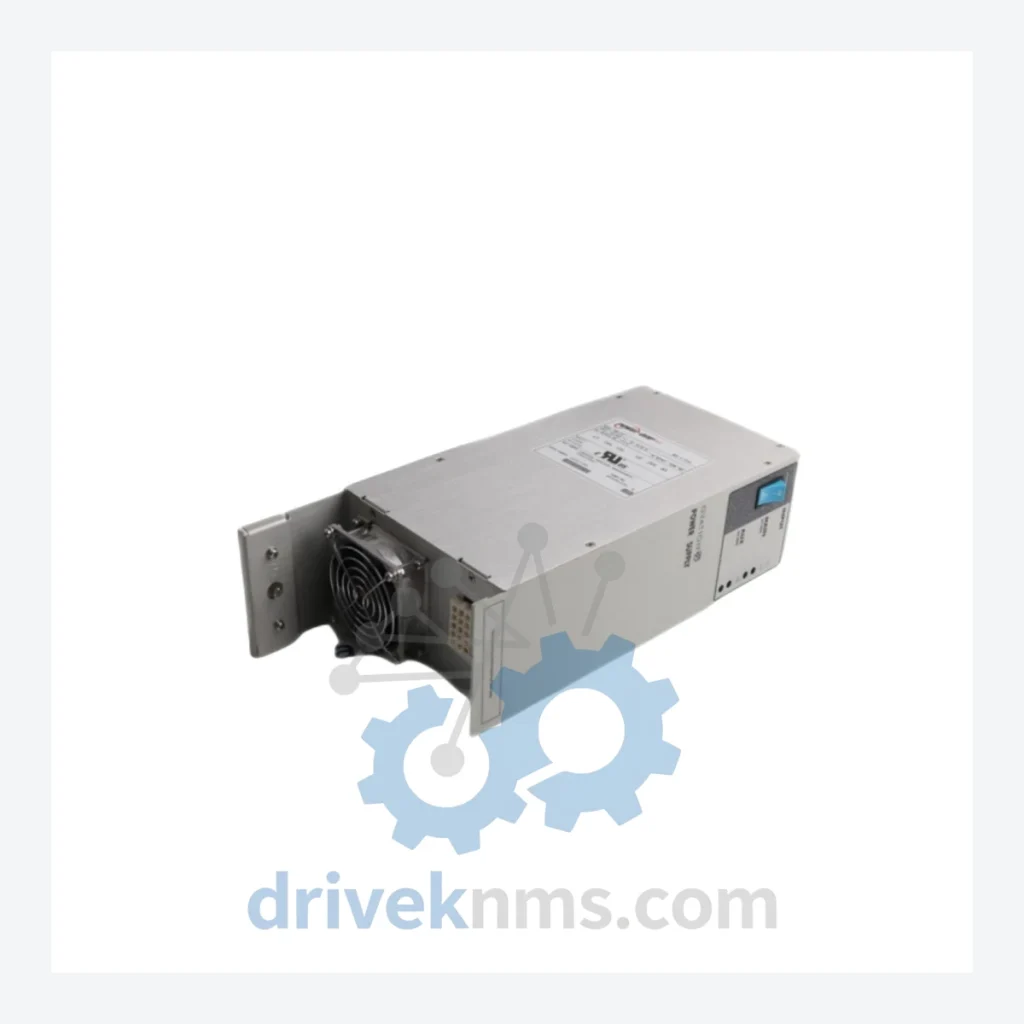

Westinghouse WDPF WH5-2FF 1X00416H01 Power Supply Module

Technical Dossier

Product Details And Specifications

Westinghouse WDPF WH5 Series: Comprehensive Module Range and Technical Overview

The Westinghouse WDPF (Distributed Processing Family) WH5 series represents one of the most widely deployed distributed control system (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, coal-fired and combined-cycle power plants, and large-scale refinery operations, the WH5 backplane architecture established a benchmark for deterministic process control in the 1980s and 1990s. Its modular card-cage design, redundant power distribution topology, and peer-to-peer data highway (WDPF Data Highway) enabled plant-wide integration at a time when centralized PLC architectures could not match its fault-tolerance profile. Facilities in North America, Europe, and Asia-Pacific continue to operate WH5-based control loops, making lifecycle support and spare parts availability a critical operational requirement for maintenance engineers and reliability teams.

The Evolution of WDPF WH5 Architecture

The WDPF platform was introduced by Westinghouse Electric Corporation in the early 1980s as a response to the limitations of centralized minicomputer-based control. The WH5 card family was designed around a proprietary backplane bus operating at deterministic scan rates, with each module performing localized signal conditioning, analog-to-digital conversion, or logic execution before transmitting process data across the WDPF Data Highway to operator workstations and historian nodes.

Early WH5 modules used discrete component analog front-ends and EPROM-based firmware. By the late 1980s, Westinghouse introduced surface-mount revisions with improved noise immunity and extended operating temperature ranges. Following the acquisition of Westinghouse's power generation and process control divisions by Emerson Electric (and subsequently the WDPF product line transitioning under Ovation DCS branding), the WH5 series entered a formal end-of-life phase. Emerson's Ovation platform is the designated migration path; however, the capital cost and engineering complexity of full DCS replacement means that thousands of WH5 installations remain in active service under extended maintenance agreements or independent lifecycle support programs.

Compatibility considerations are significant: WH5 modules are not electrically or mechanically interchangeable with later Ovation I/O cards. Backplane slot assignments, termination assemblies, and firmware revision levels must be matched precisely when sourcing replacement modules. Mixed-revision installations require careful validation against the site's system configuration database.

WDPF WH5 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the Westinghouse WDPF WH5 series. Each entry includes a concise functional descriptor for rapid identification by maintenance and procurement personnel.

Power Supply Modules

• WH5-2FF 1X00416H01: Redundant DC power supply module, primary regulation card for WH5 card cage.
• WH5-2FF 1X00416H02: Revised power supply module, updated capacitor specification for extended MTBF.
• WH5-PSU 1X00410H01: Auxiliary power distribution module, secondary bus feed for high-density I/O cages.

Analog Input (AI) Modules

• WH5-AI 1X00023H01: 16-channel 4–20 mA analog input module, 12-bit resolution, HART-passive.
• WH5-AI 1X00023H02: 16-channel analog input, extended input range ±10 V DC, differential configuration.
• WH5-AI 1X00024H01: 8-channel thermocouple input module, cold-junction compensation, types J/K/T/E.
• WH5-AI 1X00025H01: 8-channel RTD input module, 3-wire PT100/PT1000, linearization onboard.

Analog Output (AO) Modules

• WH5-AO 1X00030H01: 8-channel 4–20 mA analog output module, 12-bit DAC, loop-powered configuration.
• WH5-AO 1X00030H02: 8-channel analog output, voltage mode 0–10 V DC, isolated outputs.

Digital Input (DI) Modules

• WH5-DI 1X00050H01: 32-channel 24 V DC digital input module, optically isolated, group commons.
• WH5-DI 1X00051H01: 16-channel 120 V AC digital input module, zero-crossing detection, surge-protected.
• WH5-DI 1X00052H01: 32-channel 48 V DC digital input, high-density termination, DIN-rail mount adapter.

Digital Output (DO) Modules

• WH5-DO 1X00060H01: 16-channel relay output module, Form C contacts, 5 A per channel at 250 V AC.
• WH5-DO 1X00061H01: 32-channel 24 V DC solid-state output module, current-sourcing, short-circuit protected.

CPU / Controller Modules

• WH5-CPU 1X00001H01: Primary process controller module, WDPF Data Highway interface, 256 KB SRAM.
• WH5-CPU 1X00001H02: Enhanced controller module, expanded memory, faster scan cycle, backward-compatible.

Communication / Network Modules

• WH5-NET 1X00100H01: WDPF Data Highway coaxial network interface module, dual-port redundant.
• WH5-NET 1X00101H01: Peer-to-peer communication adapter, bridge module for multi-cage configurations.

Sourcing Hard-to-Find & Obsolete WDPF WH5 Parts

The WH5 series has been formally discontinued by the original manufacturer. Standard distribution channels no longer stock new-manufacture units. DriveKNMS maintains a dedicated inventory program for WH5 lifecycle support, sourcing modules through verified industrial surplus channels, decommissioned plant asset recovery, and long-term storage stock held by authorized regional distributors.

For obsolete or low-availability SKUs such as the WH5-2FF 1X00416H01 power supply module, DriveKNMS applies a structured sourcing protocol: cross-referencing the part number against known revision histories, verifying hardware revision markings against the customer's system configuration, and confirming firmware compatibility where applicable. Customers operating under extended maintenance agreements or preparing for planned outages are advised to submit consolidated parts lists in advance to allow adequate lead time for sourcing and pre-shipment testing.

DriveKNMS ships globally and can provide documentation packages including test reports, photographs of physical condition, and revision-level confirmation upon request.

Quality Control for the WDPF WH5 Range

WH5 modules present specific quality control challenges due to their age, backplane bus architecture, and the prevalence of electrolytic capacitor degradation in long-stored units. DriveKNMS applies the following test procedures to all WH5 modules prior to shipment:

• Visual inspection for PCB corrosion, component damage, and connector pin integrity.
• Electrolytic capacitor ESR (Equivalent Series Resistance) measurement to identify aged or failed capacitors, particularly critical for power supply modules such as the WH5-2FF 1X00416H01.
• Powered bench test using a WH5-compatible card cage and backplane simulator, verifying correct bus communication and output regulation.
• For AI/AO modules: signal accuracy verification across the full input/output range using calibrated reference sources, with results logged against module serial number.
• For DI/DO modules: channel-by-channel continuity and isolation testing, verifying optocoupler integrity and relay contact resistance.
• Final functional test under simulated load conditions before packaging for shipment.
