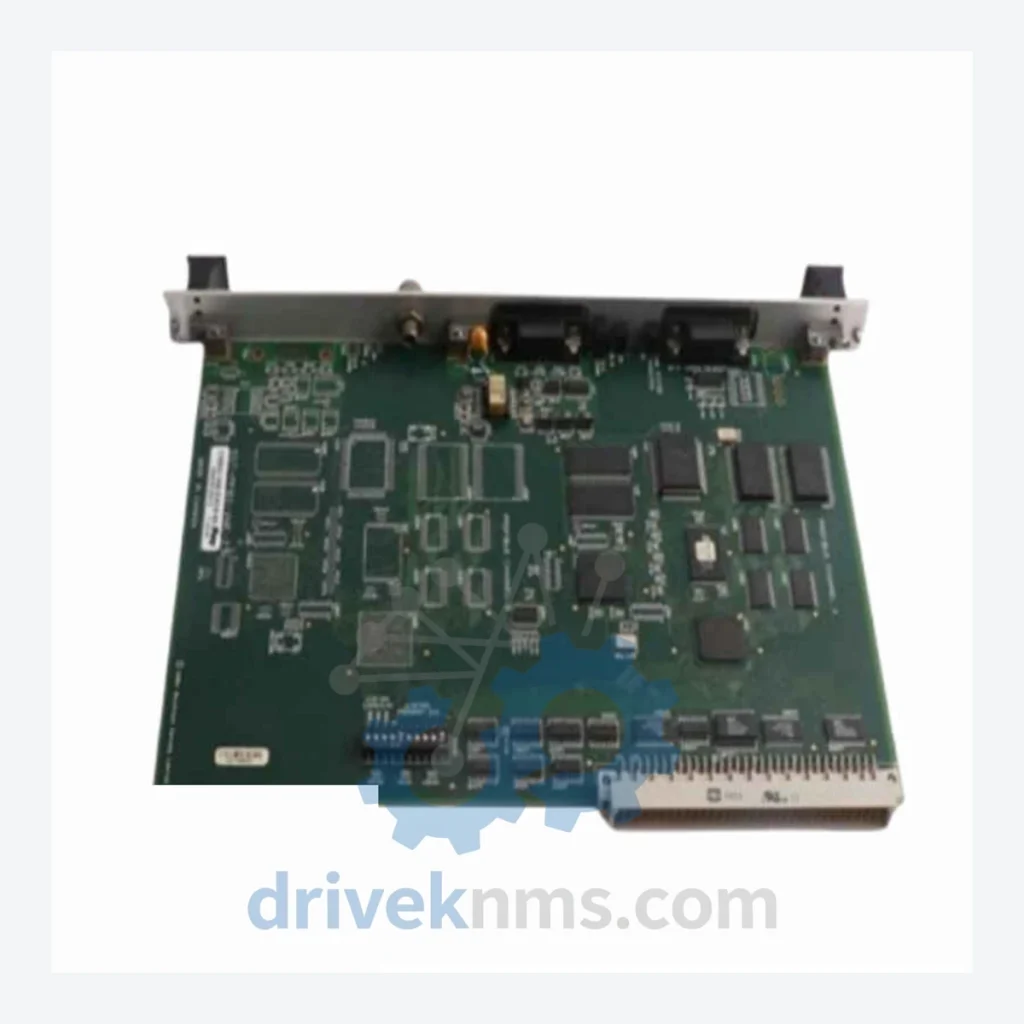

Woodward 5461 Series Modules

Technical Dossier

Product Details And Specifications

Woodward 5461 Series: Comprehensive Module Range and Technical Overview

The Woodward 5461 Series represents a core product line within Woodward's industrial governor and control platform, deployed extensively across heavy-process industries including petrochemical refineries, offshore oil & gas platforms, nuclear auxiliary systems, and combined-cycle power generation facilities. These modules serve as the power conditioning and distribution backbone for Woodward's NetCon and MicroNet governor control architectures. Installed base spans multiple decades, with active units still operating in facilities across North America, Europe, and the Middle East. The 5461 Series is classified as a mature product line; Woodward has transitioned primary development to the MicroNet Plus and ProTech TPS platforms, but the 5461 remains in widespread service, making verified spare parts availability a critical operational requirement for plant maintenance teams.

The Evolution of 5461 Series Architecture

The 5461 Series was introduced as part of Woodward's second-generation digital governor platform, succeeding relay-logic and analog control systems. Early revisions (pre-1995) used through-hole PCB construction with discrete linear regulators. Mid-generation units (1995–2005) transitioned to surface-mount components and introduced improved EMI filtering to meet IEC 61000-4 immunity requirements for industrial environments. Late-generation 5461 modules incorporated conformal coating as standard, addressing humidity and particulate ingress concerns in coastal and tropical installations.

Compatibility is a primary concern for maintenance engineers: 5461 Series power supply modules are backplane-specific. They are not interchangeable with the 5466 or 5501 Series without verifying backplane connector pinout, voltage rail configuration, and firmware revision of the host controller. Cross-series substitution without engineering validation is a documented root cause of governor trip events. Woodward's service bulletins (SB-1001 and SB-1023) address known revision incompatibilities within the 5461 family itself.

5461 Series Full Catalog & Functionalities (SKU List)

The following part numbers represent verified Woodward 5461 Series and closely associated platform modules. Each entry includes a concise functional description for maintenance reference.

5461-650: 24 VDC regulated power supply module for NetCon governor chassis.
5461-648: Dual-output power supply, ±15 VDC and +5 VDC rails for analog I/O boards.
5461-651: High-current variant power supply, 10 A continuous output rating.
5461-652: Redundant power supply module with automatic failover relay.
5461-654: Filtered DC input power conditioner, 18–32 VDC input range.
5461-656: AC/DC converter module, 115/230 VAC input to 24 VDC output.
5461-658: Battery-backed power supply with 30-minute ride-through capacity.
5461-660: Low-power standby supply for watchdog and alarm circuits.
5461-670: Digital input module, 16-channel, 24 VDC discrete signal acquisition.
5461-672: Digital output module, 16-channel, relay-isolated, 2 A per channel.
5461-674: Analog input module, 8-channel, 4–20 mA / 0–10 V configurable.
5461-676: Analog output module, 4-channel, 4–20 mA, 12-bit resolution.
5461-680: Speed sensor input module, magnetic pickup and proximity probe compatible.
5461-682: Thermocouple input module, 8-channel, J/K/T type, cold-junction compensated.
5461-684: RTD input module, 4-channel, PT100/PT1000, 3-wire configuration.
5461-690: Serial communications module, RS-232/RS-485, Modbus RTU protocol.
5461-695: Ethernet gateway module, 10/100 Mbps, Modbus TCP/IP to backplane bridge.

Sourcing Hard-to-Find & Obsolete 5461 Series Parts

Woodward has formally discontinued active manufacturing of the majority of 5461 Series modules. Standard distribution channels no longer carry new stock. DriveKNMS maintains a dedicated inventory program for end-of-life Woodward control modules, sourced through decommissioned plant equipment, authorized surplus channels, and direct OEM overstock acquisition.

For 5461 Series modules, DriveKNMS provides: verified functional testing prior to shipment; traceability documentation including date codes and revision markings; short-lead-time availability for emergency maintenance scenarios; and long-term storage inventory reservation for facilities operating multi-unit fleets requiring consistent spare part standardization. Customers operating Woodward NetCon systems with 5+ year remaining service life are advised to establish a standing spare parts agreement to mitigate increasing scarcity risk.

Quality Control for the 5461 Series Range

The 5461 Series power supply and I/O modules present specific test challenges due to their backplane-coupled architecture. DriveKNMS employs a dedicated test bench replicating the Woodward NetCon backplane bus, enabling in-circuit functional verification rather than component-level bench testing alone.

Test protocol for 5461 power supply modules includes: input voltage sweep across rated range (18–32 VDC or 100–240 VAC depending on variant); output voltage regulation measurement under 25%, 50%, 75%, and 100% load; ripple and noise measurement per CISPR 11 Class A limits; thermal cycling soak at 55°C for 2 hours with continuous output monitoring; and isolation resistance test between input, output, and chassis ground at 500 VDC. I/O modules undergo channel-by-channel signal injection and readback verification. All units are logged with pre- and post-test measurement data retained for 3 years.
