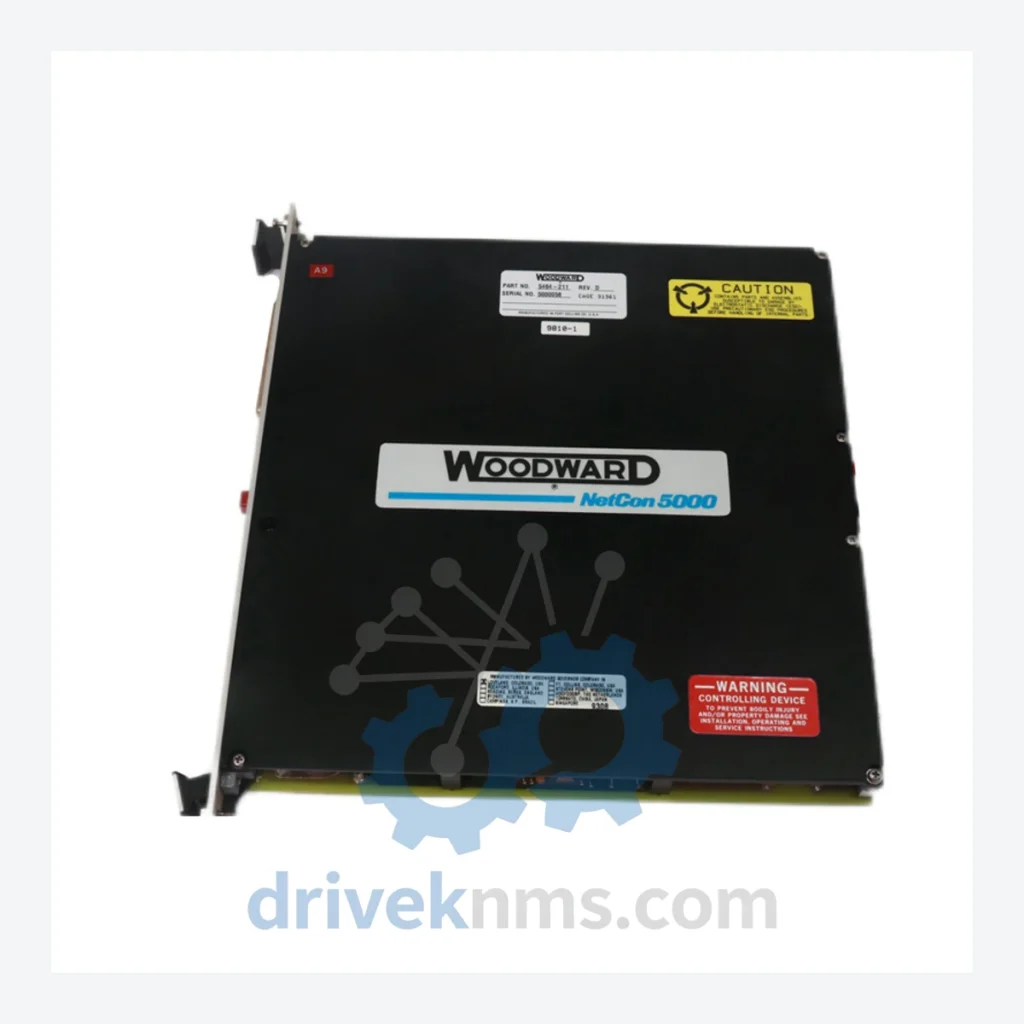

WOODWARD 5464 Series Modules - 5464-211

Technical Dossier

Product Details And Specifications

WOODWARD 5464 Series Technical Notes

The WOODWARD 5464 Series represents a core product line within WOODWARD's industrial control and power management portfolio, deployed extensively across heavy-process industries including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. These modules serve as foundational components within distributed control system (DCS) and turbine control architectures, where long-term operational continuity and backward compatibility are non-negotiable engineering requirements. The 5464 Series is recognized in the MRO (Maintenance, Repair & Operations) market as a high-demand spare parts category due to its widespread installed base across facilities commissioned between the 1990s and 2010s.

The Evolution of 5464 Series Architecture

The WOODWARD 5464 Series was developed as part of WOODWARD's modular control platform strategy, designed to provide scalable power conditioning and distribution for turbine governor and DCS backplane systems. Early iterations of the series focused on single-rail DC power delivery to logic and I/O modules. Subsequent revisions introduced redundant power path configurations, improved EMI filtering, and wider input voltage tolerance to accommodate aging plant electrical infrastructure. The series architecture is built around a passive backplane bus, meaning individual modules are hot-swap compatible within defined firmware and hardware revision boundaries. Compatibility constraints exist between early-revision modules (pre-2005 manufacturing dates) and later-generation CPU and communication adapter modules — a critical consideration for facilities performing partial system upgrades rather than full platform migrations. As WOODWARD has transitioned newer installations toward the MicroNet and ProTech-GII platforms, the 5464 Series has entered a mature/end-of-active-production lifecycle phase. WOODWARD continues to provide limited OEM support, but the primary sourcing channel for 5464 Series components is now the industrial surplus and certified refurbishment market.

5464 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded modules within the WOODWARD 5464 Series. Modules are classified by functional category:

Power Supply Modules

• 5464-211: 24 VDC input power supply module for 5464 backplane systems
• 5464-212: Redundant power supply module, dual-input configuration
• 5464-213: Wide-range AC/DC input power supply, 85–264 VAC input
• 5464-214: High-current output power supply for expanded I/O racks

CPU / Controller Modules

• 5464-301: Main processor module, single-core, 5464 platform controller
• 5464-302: Dual-redundant CPU module with automatic failover
• 5464-303: Enhanced CPU module with expanded memory and faster scan cycle

Digital Input (DI) Modules

• 5464-401: 16-channel 24 VDC digital input module, sourcing type
• 5464-402: 32-channel digital input module, high-density configuration
• 5464-403: Isolated digital input module, 8-channel, 120 VAC compatible

Analog Input (AI) Modules

• 5464-501: 8-channel analog input module, 4–20 mA / 0–10 V selectable
• 5464-502: 16-channel analog input module with HART protocol support
• 5464-503: Thermocouple/RTD input module, 8-channel, multi-type sensor support

Analog Output (AO) Modules

• 5464-601: 8-channel analog output module, 4–20 mA, loop-powered
• 5464-602: 4-channel high-resolution analog output, 16-bit DAC

Communication Adapter Modules

• 5464-701: Modbus RTU/TCP communication adapter module
• 5464-702: PROFIBUS DP slave communication module
• 5464-703: Ethernet/IP adapter module for DCS integration

Quality Control for the 5464 Series Range

The WOODWARD 5464 Series employs a passive backplane bus architecture with proprietary inter-module communication protocols. Standard bench testing procedures are insufficient for validating module integrity in this platform. DriveKNMS applies the following 5464-specific test procedures:

• Backplane bus signal integrity test: Each module is tested under simulated backplane load conditions to verify correct bus arbitration and data transmission without signal degradation.
• Power rail verification: Power supply modules (including the 5464-211) are tested across the full specified input voltage range with calibrated load banks to confirm output regulation within ±1% tolerance.
• Firmware revision audit: CPU and communication modules are checked for firmware version compatibility against the target system's hardware revision matrix.
• Thermal cycling: Modules are subjected to operational temperature cycling (0°C to 60°C) to identify latent component failures not detectable under static test conditions.
• Isolation resistance test: All I/O modules undergo channel-to-channel and channel-to-ground isolation resistance measurement per IEC 61010 safety standards.
