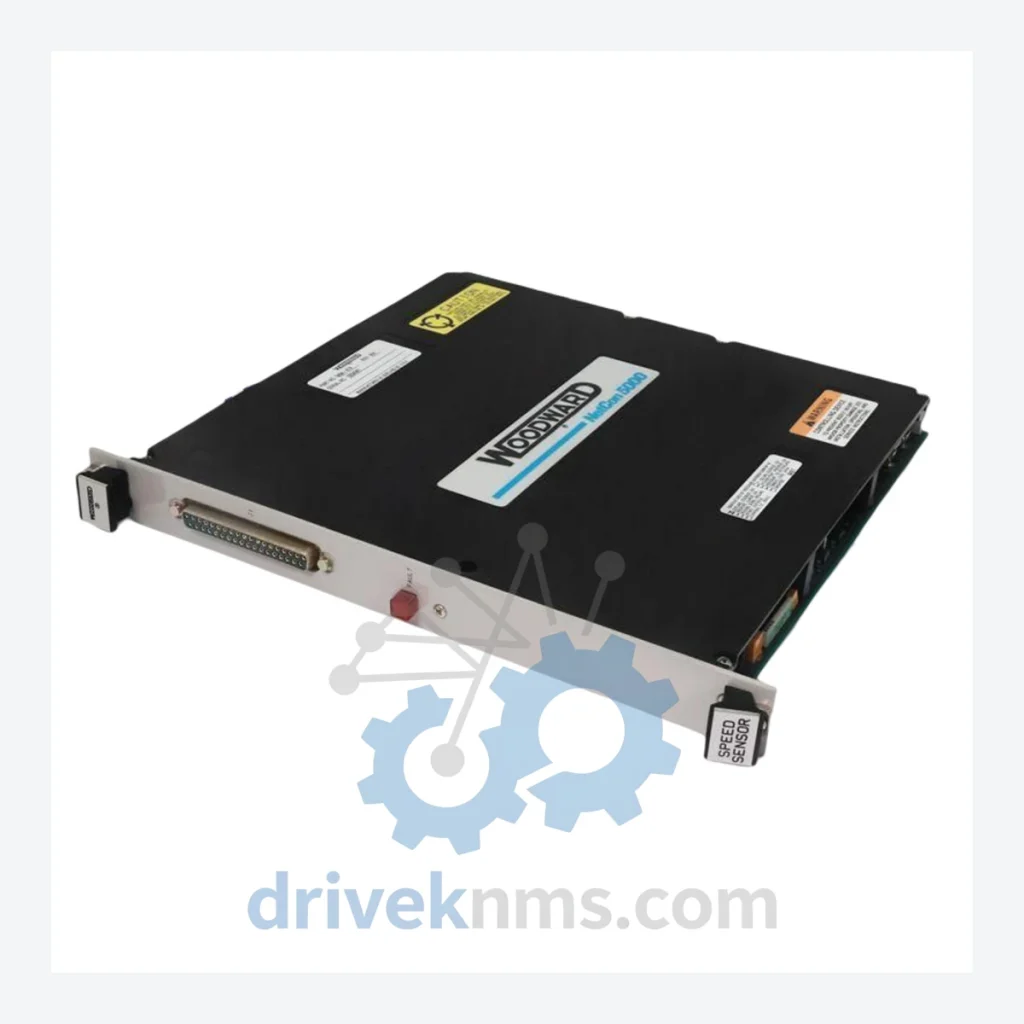

Woodward 5464 Series Modules – 5464-544

Technical Dossier

Product Details And Specifications

Woodward 5464 Series Technical Notes

The Woodward 5464 Series represents a core component family within Woodward's industrial control and communication infrastructure, deployed extensively across heavy-process industries including petrochemical refineries, gas turbine power plants, nuclear auxiliary systems, and offshore oil & gas platforms. The 5464 Series modules serve as the communication backbone in Woodward's distributed control architecture, enabling reliable data transmission between control nodes, operator interfaces, and field devices in environments where signal integrity and uptime are non-negotiable. Installations of this series are documented across facilities operated by major EPC contractors and national energy utilities in North America, Europe, and the Asia-Pacific region. The series is engineered to meet the deterministic communication requirements of turbine control, compressor management, and generator protection systems.

The Evolution of 5464 Series Architecture

The 5464 Series was developed as part of Woodward's transition from point-to-point analog signal wiring to structured digital communication networks in industrial turbomachinery control. Early iterations of the series focused on simplex transceiver configurations, supporting RS-422 and proprietary Woodward serial protocols used in the MicroNet and NetCon control platforms. As plant automation demands evolved through the 1990s and 2000s, the 5464 architecture was extended to support redundant communication paths, fiber-optic signal conversion, and higher-bandwidth data exchange compatible with Woodward's MicroNet Plus and MicroNet TMR (Triple Modular Redundant) systems.

Compatibility considerations are critical for maintenance engineers: early 5464 modules are not hot-swap compatible with later backplane revisions without firmware alignment. Modules must be matched to the specific backplane revision and communication protocol version of the host system. As of 2026, the majority of 5464 Series hardware has entered the mature-to-end-of-life phase of its product lifecycle. Woodward has transitioned new system designs to the MicroNet Simplex and MicroNet TMR platforms using updated communication modules; however, the installed base of 5464-series equipment remains substantial, and long-term maintenance support for these modules is an active requirement for operators of legacy turbine control systems.

5464 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Woodward 5464 Series and associated communication/interface module family. Each entry reflects a distinct hardware function within the distributed control architecture.

5464-544: Remote Transceiver Module; serial data link interface for distributed I/O communication between MicroNet controller nodes and remote I/O racks.
5464-545: Remote Transceiver Module variant; alternate channel configuration for redundant communication path in dual-link topologies.
5464-546: Fiber Optic Transceiver Module; converts electrical serial signals to fiber-optic for noise-immune long-distance transmission in high-EMI environments.
5464-548: Enhanced Remote Transceiver; extended temperature range variant for outdoor or high-ambient enclosure installations.
5464-550: Communication Interface Module; bridges MicroNet backplane bus to external MODBUS RTU devices and third-party instrumentation.
5464-552: Dual-Channel Transceiver Module; supports simultaneous primary and secondary communication links for TMR system configurations.
5464-560: Remote I/O Adapter Module; interfaces remote analog and digital I/O expansion racks to the MicroNet control processor over serial link.
5464-562: I/O Expansion Communication Card; used in high-channel-count applications requiring additional analog input capacity beyond base rack limits.
5464-570: Network Gateway Module; protocol conversion between Woodward proprietary serial bus and plant-level DCS communication networks (e.g., FOUNDATION Fieldbus, PROFIBUS DP).
5464-572: Redundant Network Gateway; dual-port version of 5464-570 for fault-tolerant DCS integration in SIL-rated control loops.
5464-580: Operator Interface Communication Module; dedicated link between MicroNet controller and Woodward operator display terminals (ODT/HMI panels).
5464-582: High-Speed Serial Interface Card; supports increased polling rates for fast-response turbine speed and load control applications.
5464-590: Diagnostic Communication Module; provides maintenance port access for firmware upload, parameter configuration, and live data monitoring via laptop interface.
5464-592: Isolated Serial Interface Module; galvanically isolated RS-422/RS-485 transceiver for installations with significant ground potential differences between control and field equipment.
5464-600: System Communication Coordinator; master arbitration module for multi-drop serial networks with up to 32 addressable remote nodes in a single MicroNet system.

Quality Control for the 5464 Series Range

The 5464 Series modules incorporate multi-layer PCB designs with proprietary Woodward backplane bus interfaces and high-speed serial transceivers that require protocol-aware functional testing — visual inspection alone is insufficient to verify operational integrity. DriveKNMS applies the following test procedures to all 5464 Series units prior to dispatch:

Backplane Bus Continuity Test: Verifies all backplane connector pins meet impedance and continuity specifications per Woodward hardware documentation.
Serial Transceiver Loopback Test: Confirms transmit/receive signal integrity at rated baud rates using protocol-matched test equipment.
Fiber Optic Power Budget Verification (applicable to fiber variants): Measures optical output power and receiver sensitivity against OEM specifications.
Isolation Resistance Test: Validates galvanic isolation barriers on isolated interface variants to IEC 61010-1 requirements.
Thermal Cycling Burn-In: Units are subjected to accelerated thermal cycling to screen for latent component failures prior to shipment.
Firmware Revision Verification: Where applicable, firmware version is documented and matched to customer system revision requirements to prevent compatibility conflicts on installation.
