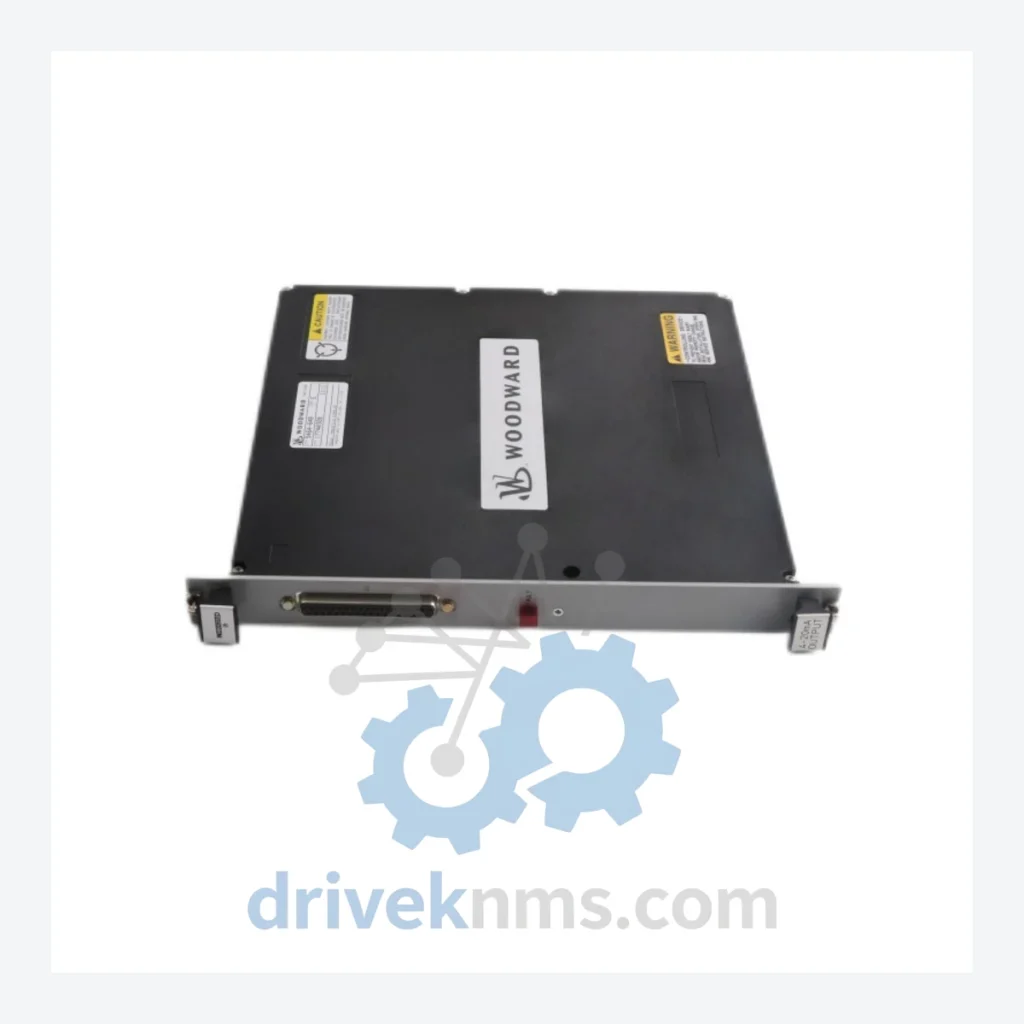

Woodward 5464 Series: Comprehensive Module Range and Technical Overview

The Woodward 5464 series represents a core family of I/O and control modules deployed extensively across global heavy industry, including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale thermal generation facilities. Woodward, headquartered in Fort Collins, Colorado, USA, has supplied turbine and engine control systems to critical infrastructure for over a century. The 5464 series modules are integral components of Woodward's MicroNet and NetCon distributed control architectures, providing deterministic discrete and analog I/O interfacing for gas turbines, steam turbines, and compressor control systems. Their ruggedized backplane design and high-channel-density form factor made them the preferred choice for OEM integrators requiring reliable, long-lifecycle control hardware in Class I Division 2 and ATEX-rated environments.

The Evolution of 5464 Series Architecture

The 5464 series was developed as part of Woodward's transition from relay-logic and analog governor systems toward fully digital, microprocessor-based turbine control platforms during the late 1980s and 1990s. Early iterations of the architecture relied on parallel backplane communication with fixed-address I/O mapping. As the MicroNet platform matured, the 5464 modules were revised to support higher channel densities and improved noise immunity, addressing field feedback from installations in high-EMI environments such as generator halls and compressor stations.

By the mid-2000s, Woodward introduced the MicroNet Plus and subsequently the MicroNet TMR (Triple Modular Redundancy) platforms, which shifted toward the 5501 and 5464-9xx sub-series for safety-critical SIL 2/3 applications. The original 5464-6xx and 5464-5xx modules remained in production to support the large installed base but are now classified as mature/end-of-life hardware. Replacement equivalents exist within the Woodward 5501 series and the newer ProTech platform, but direct form-fit-function substitution requires engineering validation due to backplane pinout and firmware compatibility constraints. For sites still operating legacy MicroNet controllers, the 5464 series remains the only viable spare parts path without a full control system upgrade.

5464 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the Woodward 5464 series. Modules are categorized by functional type:

Discrete Output Modules (DO)

• 5464-653: 32-channel discrete output module; 24 VDC sourcing outputs; high-density backplane-mounted DO for MicroNet turbine control systems.
• 5464-654: 32-channel discrete output module; relay-isolated variant; used in applications requiring dry-contact output switching.
• 5464-655: 16-channel discrete output module; high-current sourcing; designed for solenoid valve and actuator drive applications.

Discrete Input Modules (DI)

• 5464-610: 32-channel discrete input module; 24 VDC sink/source compatible; standard MicroNet DI interface.
• 5464-611: 32-channel discrete input module; isolated inputs; used in high-voltage field signal environments.
• 5464-612: 16-channel discrete input module; high-speed pulse capture; suited for speed and position sensing inputs.
• 5464-615: 32-channel discrete input module; NAMUR sensor compatible; intrinsically safe field wiring interface.

Analog Output Modules (AO)

• 5464-720: 8-channel analog output module; 4–20 mA current loop; used for valve positioner and actuator control.
• 5464-721: 8-channel analog output module; ±10 V voltage output variant; for servo-valve and proportional control applications.
• 5464-722: 4-channel analog output module; high-resolution 16-bit DAC; precision control output for critical turbine governor loops.

Analog Input Modules (AI)

• 5464-810: 16-channel analog input module; 4–20 mA / 0–10 V universal input; standard process variable acquisition.
• 5464-811: 8-channel analog input module; thermocouple input; J/K/T/E type with cold junction compensation.
• 5464-812: 8-channel analog input module; RTD input; PT100/PT1000 three-wire configuration for temperature measurement.
• 5464-815: 16-channel analog input module; high-speed sampling; used in vibration monitoring and dynamic process applications.

Communication & CPU Modules

• 5464-401: MicroNet controller CPU module; primary processing unit for 5464-series backplane systems; Modbus RTU and proprietary Woodward protocol support.
• 5464-402: Redundant CPU module; hot-standby configuration; used in dual-redundant MicroNet control architectures.
• 5464-510: Communication adapter module; Ethernet/IP and Modbus TCP gateway; bridges legacy 5464 backplane to modern DCS networks.
• 5464-520: PROFIBUS DP communication module; used for integration with Siemens PCS 7 and ABB 800xA DCS environments.

Power Supply Modules (PS)

• 5464-300: 24 VDC backplane power supply module; 10 A rated; primary power distribution for 5464-series chassis.
• 5464-301: Redundant power supply module; N+1 configuration; automatic failover for continuous-duty installations.

Sourcing Hard-to-Find & Obsolete 5464 Series Parts

The Woodward 5464 series has entered the mature-to-end-of-life phase of its product lifecycle. Woodward's official factory support for many 5464-6xx and 5464-7xx sub-variants has been discontinued or transitioned to repair-only service with extended lead times. For operators of refineries, power plants, and compressor stations that cannot justify a full control system migration, maintaining a reliable spare parts inventory is operationally critical.

DriveKNMS maintains a dedicated inventory of verified Woodward 5464 series modules sourced from decommissioned systems, OEM overstock, and authorized secondary market channels. All units are catalogued by part number, revision level, and firmware version where applicable. DriveKNMS provides:

• Same-day quotation for in-stock 5464 modules
• Cross-reference matching for discontinued part numbers to current equivalents
• Emergency shipment support for unplanned outages at critical facilities
• Long-term supply agreements for sites with multi-year maintenance contracts

Quality Control for the 5464 Series Range

The Woodward 5464 series presents specific quality verification challenges due to its backplane-coupled architecture and proprietary inter-module communication protocol. Standard bench power-up testing is insufficient to validate module functionality in isolation. DriveKNMS applies the following test procedures to all 5464 series inventory:

• Backplane Integration Test: Each module is installed into a live 5464-series chassis with a validated CPU module to confirm backplane communication handshake and address recognition.
• Channel-Level Functional Test: For discrete modules such as the 5464-653, all 32 output channels are individually exercised and verified against expected switching behavior under rated load conditions.
• Analog Accuracy Verification: Analog I/O modules are tested against calibrated reference signals. Output accuracy is verified to within ±0.1% of full scale; input linearity is confirmed across the full engineering range.
• Thermal Cycling: Modules intended for long-term spare inventory are subjected to thermal cycling between 0°C and 60°C to screen for latent component failures.
• Firmware Revision Logging: CPU and communication modules are inspected for firmware version and documented prior to shipment to ensure compatibility with the customer's existing system revision.
