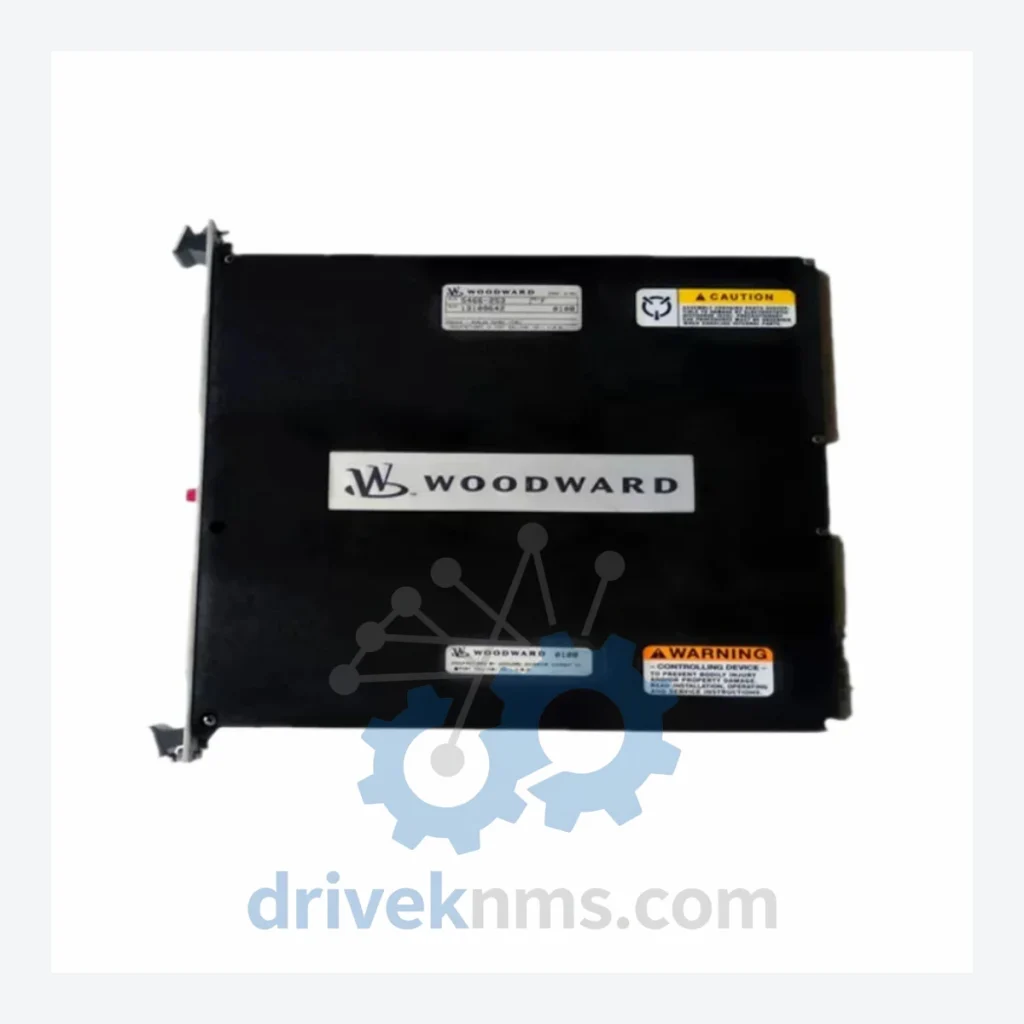

Woodward 5466-253 Analog Combo Timer Relay Module – Obsolete Industrial Spare Part

When a Woodward 5466-253 Analog Combo TMR fails in a running plant, the consequences are not limited to a single module replacement. This component is embedded in legacy turbine and engine control architectures where a like-for-like replacement is the only path that avoids a full control system overhaul. A forced migration to a modern control platform—triggered by a single unavailable spare—routinely costs industrial operators between $500,000 and $3,000,000 USD in engineering, commissioning, and lost production time. DriveKNMS maintains verified stock of this discontinued module specifically to prevent that outcome.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, current range, timing range) are not published here to prevent inaccurate data. Confirmed specifications are provided with each unit upon request.

Solving the Discontinued Hardware Crisis

The Woodward 5466-253 was designed for analog governor and turbine control panels that remain operational in power generation, oil & gas compression, and marine propulsion facilities worldwide. These systems were engineered for 30–40 year service lives, and many are still mid-lifecycle. Woodward's transition to fully digital platforms (MicroNet, ProTech) left a significant installed base of analog-era hardware without a factory supply chain.

The 5466-253 Analog Combo TMR performs timing and relay switching functions that are tightly integrated into the control logic of these older panels. There is no direct digital substitute that can be installed without reprogramming the governor logic, recalibrating actuator response curves, and revalidating the entire control loop—a process that requires specialized Woodward-certified engineers and extended plant downtime.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: a verified spare module at a fraction of the cost of a system upgrade preserves asset value and defers a multi-million dollar modernization project by 5 to 10 years. That is not a workaround. That is a defensible asset management strategy.

How to extend your legacy Woodward control system life by 5–10 years:

• Maintain a minimum 2-unit buffer stock of all analog TMR and relay modules. Woodward analog spares are not manufactured on demand—when distributor stock is exhausted, it is exhausted permanently.
• Conduct annual functional testing of installed spare modules. Electrolytic capacitors in analog timer circuits degrade over time even without use. A spare that has sat in a cabinet for 8 years may not perform to specification without reconditioning.
• Document firmware and hardware revision levels of all installed Woodward modules. Mixing hardware revisions in a TMR (Triple Modular Redundancy) configuration can introduce voting logic discrepancies that are difficult to diagnose under pressure.
• Establish a supplier relationship before the emergency. Sourcing obsolete Woodward parts during an unplanned outage compresses negotiating leverage and increases the risk of receiving counterfeit or untested components.
• Pair spare procurement with a control system audit. Identify all single-point-of-failure analog modules in your governor panel and prioritize stocking those with the longest lead times.

Condition & Reliability Assurance

Every Woodward 5466-253 unit supplied by DriveKNMS passes a structured 5-step quality process before shipment:

1. Visual and mechanical inspection – Board-level examination for physical damage, corrosion, and component displacement.
2. Electrolytic capacitor assessment – Capacitance and ESR (Equivalent Series Resistance) measurement on all electrolytic capacitors. Aged or out-of-tolerance capacitors are flagged and replaced where applicable.
3. Pin and connector integrity check – All edge connectors and pin headers are inspected for oxidation, bent pins, and contact resistance. Corroded contacts are cleaned to IPC standards.
4. Firmware and hardware revision verification – Where revision markings are present, the hardware revision is documented and disclosed to the buyer prior to shipment.
5. Functional bench test – Where test fixtures are available, the module is powered and its relay switching and timing outputs are verified against known-good reference behavior.

Condition grade (New Surplus, Tested Refurbished, or As-Removed) is confirmed in writing before order confirmation. No unit is shipped without a condition disclosure.

Key Features for System Maintenance

• Drop-in replacement – The 5466-253 installs directly into the existing panel slot with no mechanical modification required.
• No reprogramming required – The analog TMR module operates on hardware-defined timing and relay logic. Replacement does not require governor software changes or actuator recalibration.
• Avoids engineering reconstruction costs – Substituting a digital equivalent requires control logic redesign, loop tuning, and safety system revalidation. A like-for-like spare eliminates that cost entirely.
• Preserves system certification – In regulated industries (power generation, offshore), replacing a module with a non-equivalent part may trigger a re-certification requirement. An identical spare maintains the existing certification baseline.
• Reduces unplanned downtime risk – Having a verified spare on-site reduces mean time to repair (MTTR) from weeks (sourcing time) to hours (installation time).

FAQ

What warranty applies to an obsolete part like the 5466-253?
DriveKNMS provides a 90-day warranty covering functional performance under normal operating conditions. For new surplus units in original packaging, extended warranty terms are available upon request.

How do I confirm the unit is genuine and not counterfeit?
All units are sourced from documented industrial decommissioning projects, authorized surplus dealers, or verified distributor overstock. Woodward part markings, date codes, and board revision labels are inspected and disclosed. We do not source from anonymous secondary market channels.

Should I buy more than one unit?
For any obsolete module that is a single point of failure in a running system, holding a minimum of two units is standard practice. The 5466-253 is no longer manufactured. Once global surplus stock is absorbed, no further supply will exist. The cost of a second unit is negligible relative to the cost of an unplanned outage.

Can you source other Woodward analog spare parts?
Yes. DriveKNMS specializes in hard-to-find Woodward analog governor components. Contact us with your part number for availability and lead time.
