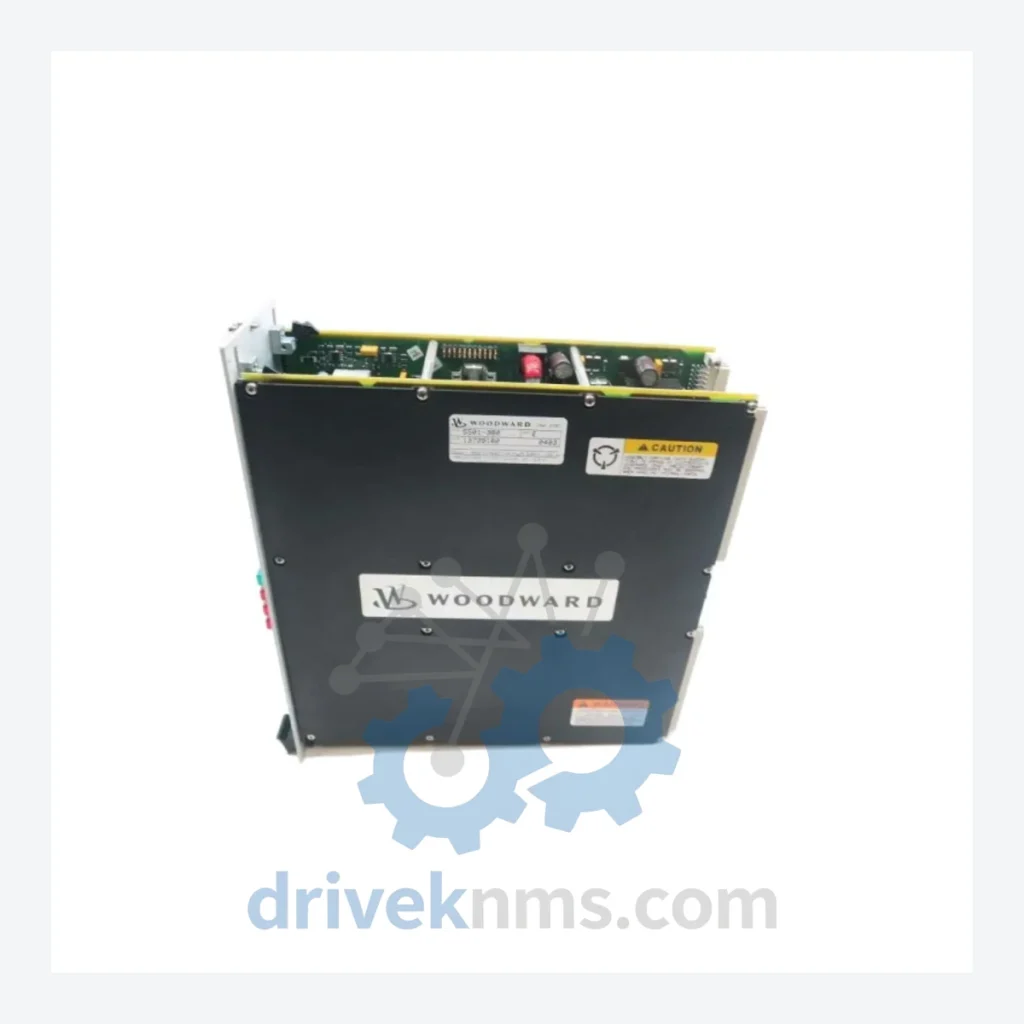

Woodward 5501-380 Power Supply Module – Obsolete easYgen / 505 Series Spare Part

A failed power supply module inside a Woodward legacy control rack is not a component problem — it is a system-level crisis. The 5501-380 is a dedicated power supply unit for Woodward’s discontinued governor and genset control platforms. No new units are manufactured. For facilities still operating these systems, a single failed module can force a complete control architecture replacement: new hardware, new software licensing, full I/O remapping, actuator recalibration, and weeks of commissioning downtime. That migration path routinely costs USD $300,000 or more per control system. DriveKNMS holds verified stock of the 5501-380 to eliminate that cost.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Note: Specific electrical parameters (input voltage range, output ratings, connector pinout) are provided upon request with your system documentation. No parameters are published here to prevent specification errors on safety-critical equipment.

Solving the Discontinued Hardware Crisis

Woodward’s legacy control platforms — the 505, 505E, 723, and early easYgen series — were designed for continuous industrial service across power generation, oil and gas compression, and marine propulsion. The capital investment in these systems is substantial. The control architecture is deeply integrated: I/O wiring, actuator calibration, and operator interfaces are matched to the original hardware at the engineering level.

When Woodward discontinued these modules, the installed base did not retire. The machines kept running. The 5501-380 power supply sits at the foundation of the control rack’s electrical integrity. A degraded unit introduces voltage instability that propagates across the entire control loop — triggering nuisance trips, corrupting PID tuning, or causing complete system shutdown. The failure mode is not gradual; it is often sudden and occurs during peak load conditions.

Sourcing a direct replacement from the original manufacturer is no longer possible. The only alternative without a spare is platform migration — a project that disrupts production, invalidates existing safety certifications, and requires full recommissioning. The 5501-380 spare part eliminates that path entirely.

Extending Woodward Legacy System Service Life by 5–10 Years: A Maintenance Strategy for Plant Management

• Maintain a minimum two-unit spare inventory for every critical power supply position in the control rack. Failure rates on aging power supplies accelerate significantly after 15 years of continuous operation. A single spare is not sufficient protection for a production-critical asset.
• Schedule annual thermographic inspection of the control cabinet. Thermal anomalies on power supply modules indicate electrolytic capacitor degradation before catastrophic failure occurs — providing a maintenance window rather than an emergency.
• Document and archive firmware and configuration files for every controller in the system. If a module must be swapped under emergency conditions, having the exact configuration on file eliminates reprogramming risk and reduces downtime from days to hours.
• Establish a verified obsolete parts supplier relationship before a failure event. Emergency sourcing under production pressure increases counterfeit exposure and inflated pricing. Pre-qualified supply agreements protect both budget and equipment integrity.
• Negotiate long-term supply agreements for critical obsolete modules. Global inventory of discontinued Woodward components is finite. It depletes without replenishment as the installed base competes for the same remaining stock. Securing inventory now is a direct hedge against future unavailability.

Condition & Reliability Assurance

Every 5501-380 unit processed by DriveKNMS passes a structured five-stage quality protocol before it is offered for sale. This process is designed specifically for the failure modes common to power supply modules that have been stored or operated beyond their original design life.

• Stage 1 – Visual and Mechanical Inspection: Full examination of PCB surfaces, connector pins, and housing integrity. Units with corrosion, physical damage, or evidence of unauthorized field repair are rejected at this stage without exception.
• Stage 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in stored or aged power supply modules. Each capacitor is tested for ESR (equivalent series resistance) and capacitance drift against rated specifications. Units with out-of-specification capacitors are either recapped with equivalent-rated components or rejected.
• Stage 3 – Firmware Version Verification: Where applicable, firmware version is confirmed and documented. No unauthorized modifications or version mismatches are present in units released for sale.
• Stage 4 – Pin and Contact Integrity Check: All connector pins are inspected under magnification for oxidation, mechanical deformation, and elevated contact resistance. Affected contacts are treated or the unit is rejected.
• Stage 5 – Functional Power-On Test: Units are bench-tested under representative load conditions to verify output stability and protection circuit function before packaging and shipment.

Key Features for System Maintenance

• Drop-in replacement: The 5501-380 installs directly into the original rack position. No mechanical modification, bracket fabrication, or wiring adaptation is required.
• No reprogramming required: The power supply module does not carry system configuration data. Replacement does not affect controller parameters, tuning values, or I/O assignments. The system returns to its pre-failure operating state.
• No engineering redesign: Unlike a platform migration, installing a spare 5501-380 preserves the existing validated system configuration. Safety certifications, process qualifications, and operator familiarity remain intact.
• Minimal downtime: Planned replacement during a scheduled maintenance window takes hours. Emergency replacement can be executed within a single shift, compared to weeks for a platform migration project.

FAQ

Q: What warranty applies to an obsolete part?
A: DriveKNMS provides a 90-day warranty covering functional defects on all refurbished units. New Old Stock units carry a 180-day warranty. All warranty terms are confirmed in writing prior to shipment.

Q: How do I verify the unit is genuine and not counterfeit?
A: All units are sourced through documented supply channels. Physical markings, date codes, and PCB characteristics are cross-referenced against known-genuine references. Units that fail authentication are not offered for sale.

Q: Should I purchase more than one unit?
A: For any system where the 5501-380 is a single point of failure, holding a minimum of two spares is the standard recommendation. Global inventory of discontinued Woodward modules is finite and depletes without replenishment. Pricing typically increases as available supply contracts.

Q: Can you source other discontinued Woodward modules?
A: Yes. DriveKNMS specializes in hard-to-find and discontinued industrial control components across multiple manufacturers. Submit your full bill of materials for a consolidated sourcing assessment.
