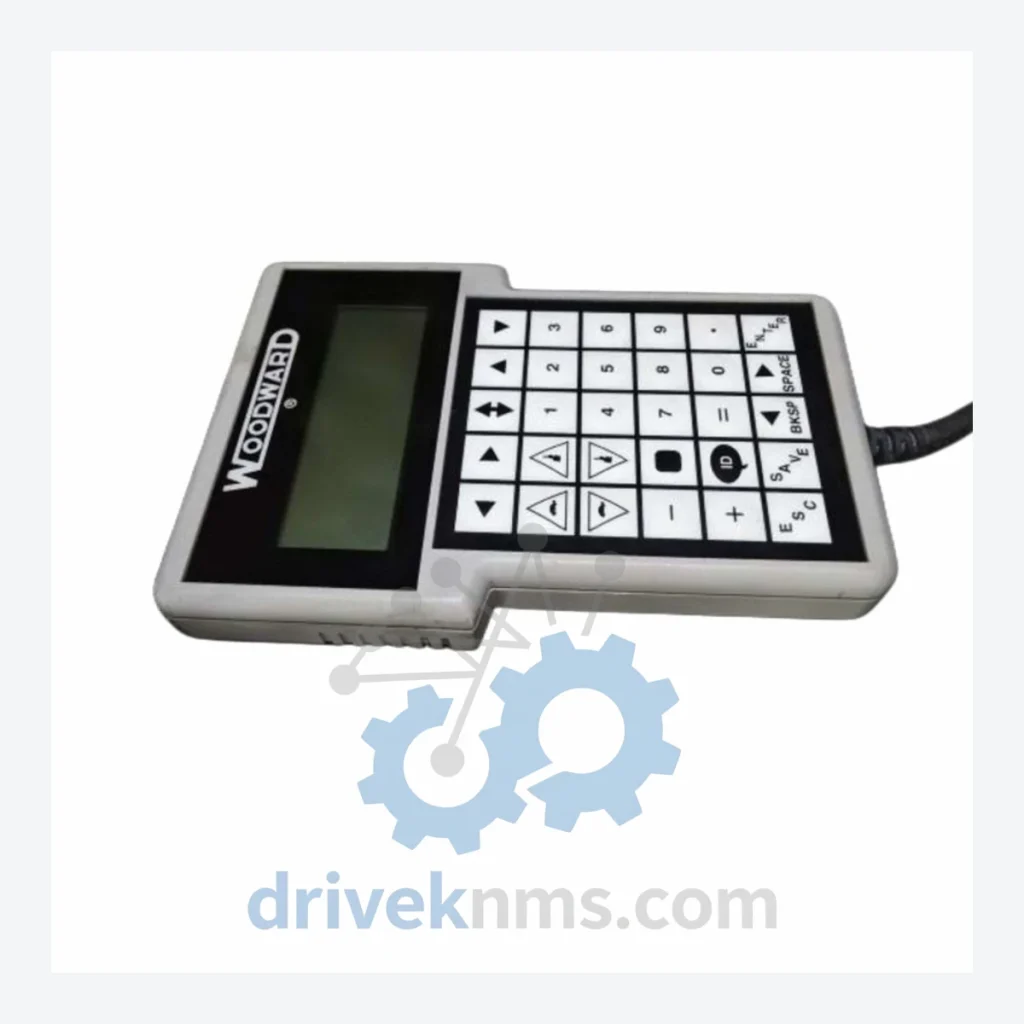

Woodward 9905-292 Hand Held Programmer

Technical Dossier

Product Details And Specifications

Woodward 9905 Series: Comprehensive Module Range and Technical Overview

The Woodward 9905 series represents a foundational product line within Woodward's industrial governor and control systems portfolio. Deployed extensively across heavy-process industries — including petrochemical refineries, gas turbine power plants, nuclear auxiliary systems, and offshore oil & gas platforms — the 9905 series provides programming, configuration, and interface functionality for Woodward's governor control ecosystem. The 9905-292 Hand Held Programmer is a portable configuration terminal used to interface directly with Woodward governor controllers, enabling on-site parameter adjustment, fault diagnostics, and setpoint calibration without requiring a PC workstation. Its ruggedized form factor and direct serial communication protocol make it a critical maintenance tool in environments where laptop access is restricted or impractical.

The Evolution of 9905 Architecture

The Woodward 9905 series was developed as a peripheral and interface layer for the company's core governor control platforms, including the EG, EGCP, 505, 723, and MicroNet series. Early variants of the 9905 line focused on analog signal conditioning and manual programming interfaces, predating PC-based configuration tools. As Woodward transitioned its control platforms toward digital and microprocessor-based architectures through the 1990s and 2000s, the 9905 series evolved to include serial RS-232/RS-485 communication adapters, hand-held terminals, and dedicated programming cables. The 9905-292 specifically targets legacy governor controllers that do not support Ethernet or USB configuration, making it irreplaceable in brownfield installations where controller hardware has not been upgraded. Compatibility spans multiple Woodward controller generations, though users must verify firmware revision alignment between the programmer and the target controller. Many 9905 accessories have reached end-of-manufacture status, increasing reliance on aftermarket and refurbished supply chains for ongoing maintenance programs.

9905 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Woodward 9905 series, organized by functional category:

Hand Held Programmers & Terminals

• 9905-292: Hand Held Programmer — portable serial configuration terminal for Woodward governor controllers; direct parameter entry and fault readout.
• 9905-459: Hand Held Programmer Kit — includes 9905-292 unit with carrying case, cables, and documentation package.
• 9905-466: Hand Held Programmer — alternate firmware variant for specific 723 and EG series governor compatibility.

Communication Cables & Adapters

• 9905-148: Programming Cable — RS-232 serial cable for connecting hand held programmer to Woodward 723 series controllers.
• 9905-149: Programming Cable — RS-232 cable variant for 505 series governor interface.
• 9905-150: Programming Cable — extended-length RS-232 cable for panel-mounted controller access.
• 9905-151: Programming Cable — RS-485 multi-drop communication cable for networked governor configurations.
• 9905-157: USB-to-Serial Adapter Cable — bridges modern PC USB ports to legacy Woodward serial communication ports.
• 9905-190: Communication Adapter — RS-232 to RS-485 signal converter for multi-unit governor networks.

Software & Configuration Tools

• 9905-258: Woodward Watch Window Software Package — PC-based real-time monitoring and configuration tool for 723 and 505 series.
• 9905-319: Woodward Watch Window Software — updated release with expanded controller compatibility and data logging.
• 9905-380: Service Tool Software — dedicated configuration utility for MicroNet and 505E series controllers.
• 9905-411: Toolkit Software Package — bundled configuration, calibration, and diagnostic software for field service engineers.

Signal Conditioning & Interface Modules

• 9905-026: Signal Conditioner Module — analog input conditioning for magnetic pickup speed sensors; 4–20 mA output.
• 9905-032: Signal Conditioner — voltage-to-current converter for actuator command signal interfacing.
• 9905-076: Analog Interface Module — bridges legacy 4–20 mA process signals to Woodward digital controller inputs.
• 9905-112: Discrete I/O Interface — provides isolated digital input/output expansion for governor control panels.
• 9905-233: Power Supply Module — regulated 24 VDC auxiliary power supply for 9905 series peripheral devices.

Sourcing Hard-to-Find & Obsolete 9905 Parts

A significant portion of the Woodward 9905 series — including the 9905-292 Hand Held Programmer — has reached end-of-manufacture or limited-availability status through Woodward's official distribution network. OEM lead times for remaining new-old-stock units frequently exceed 16–26 weeks, and many part numbers are no longer listed in active Woodward catalogs. DriveKNMS maintains a dedicated inventory of refurbished, tested, and exchange-ready 9905 series components sourced from decommissioned plant equipment, controlled surplus, and authorized refurbishment programs. For operators running long-term maintenance contracts on turbine governor systems, DriveKNMS provides lifecycle extension support: guaranteed functional equivalence, documented test records, and 12-month operational warranty on all refurbished 9905 units. Customers requiring immediate dispatch for unplanned outage scenarios can contact DriveKNMS for same-day quotation and expedited shipping coordination.

Quality Control for the 9905 Range

The Woodward 9905 series includes communication-dependent devices where signal integrity and firmware state are critical to safe governor operation. DriveKNMS applies a multi-stage verification protocol to all 9905 units prior to dispatch. Hand held programmers such as the 9905-292 undergo display function verification, keypad actuation testing, serial port continuity and signal level measurement (RS-232 voltage swing ±12 V), and live communication handshake testing against a reference Woodward 723 or 505 controller. Programming cables are tested for pin-to-pin continuity, shield integrity, and connector retention force. Software packages are verified against original Woodward release checksums and delivered on clean, write-protected media. All units are logged with serial number, test date, technician ID, and pass/fail records, with documentation available to customers on request. Units that fail any stage of testing are quarantined and not returned to inventory.

For sourcing inquiries, technical questions, or bulk order requests for Woodward 9905 series components:

• Email: sale@driveknms.com
• WhatsApp: +86 18359293191
• Web: driveknms.com
