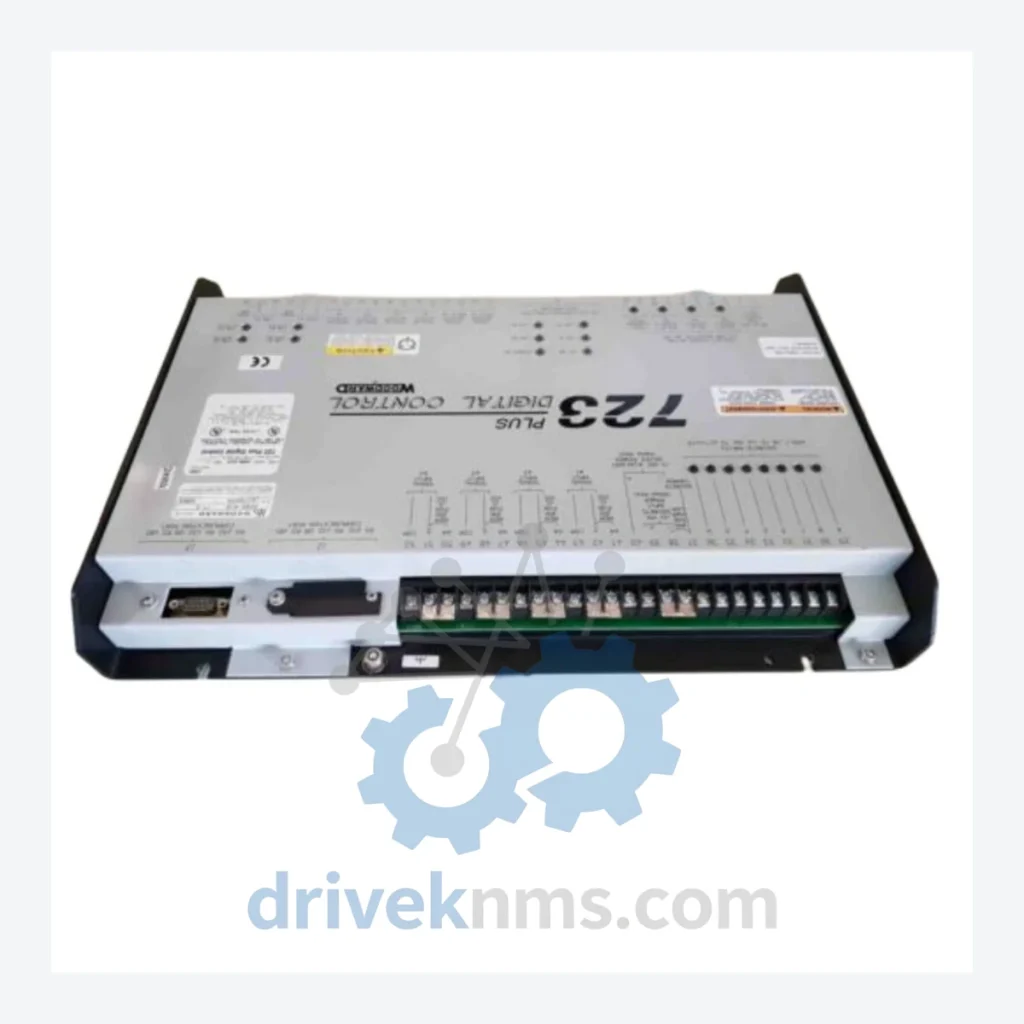

Woodward 723 PLUS Digital Control Modules

Technical Dossier

Product Details And Specifications

Woodward 723 PLUS Series: Comprehensive Module Range and Technical Overview

The Woodward 723 PLUS Digital Control is a microprocessor-based governor and control platform deployed across heavy industrial sectors including petrochemical refineries, offshore oil & gas platforms, nuclear auxiliary systems, combined-cycle power plants, and marine propulsion installations. The 723 PLUS replaced the earlier analog 723 governor family and established a standardized digital architecture for turbine, engine, and compressor speed/load control. Its modular I/O design and configurable software logic made it the de facto standard for retrofit and greenfield installations throughout the 1990s and 2000s. Installed base estimates exceed tens of thousands of units globally, with active deployments still documented in facilities operating under long-term maintenance contracts.

The Evolution of 723 PLUS Architecture

The 723 PLUS platform succeeded Woodward's original 723 analog governor, which used discrete electronic components for speed sensing and actuator drive. The transition to the 723 PLUS introduced a 16-bit microprocessor core, non-volatile EEPROM parameter storage, and a serial RS-232/RS-422 communication port for configuration via Woodward's Watch Window software. Early hardware revisions (pre-1995) used through-hole PCB construction; later revisions migrated to surface-mount technology, improving vibration resistance for marine and mobile applications. The platform supports both magnetic pickup (MPU) speed sensing and proximity probe inputs, with configurable droop, isochronous, and load-sharing control modes. Compatibility with Woodward's MicroNet and ProTech systems via hardwired discrete I/O is well-documented. The 723 PLUS entered the mature/end-of-active-production phase circa 2010–2015, with Woodward transitioning customers toward the EasYgen and MicroNet TMR platforms. However, the installed base remains large enough that spare parts demand is sustained, and DriveKNMS maintains stock of both new-surplus and tested-serviceable units.

723 PLUS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Woodward 723 PLUS series, classified by primary function:

Speed/Load Controllers (Core Governor Units)

• 9906-619: 723 PLUS Digital Control, standard speed/load governor, 8 analog inputs, RS-422 comm port, 24 VDC power supply input.
• 9906-620: 723 PLUS Digital Control, enhanced I/O configuration, dual MPU input channels, extended temperature rating.
• 9906-621: 723 PLUS with integrated load sharing module, designed for parallel generator set applications.
• 9906-622: 723 PLUS Digital Control, high-voltage actuator output variant (up to 200 mA), for EG-type actuators.
• 9906-623: 723 PLUS with expanded analog output channels, used in compressor anti-surge control configurations.
• 9906-624: 723 PLUS Digital Control, ATEX/hazardous area certified variant for offshore and refinery installations.

Communication & Interface Modules

• 9906-625: 723 PLUS with Modbus RTU communication option, enables SCADA integration over RS-485 network.
• 9906-626: 723 PLUS with DeviceNet adapter interface, for integration into Allen-Bradley PLC-based control architectures.
• 9906-627: 723 PLUS with PROFIBUS DP slave interface, common in Siemens DCS environments (Simatic S7 integration).

Power Supply & Auxiliary Modules

• 9906-628: 723 PLUS auxiliary power supply board, 115/230 VAC input, internal DC bus regulation for main control card.
• 9906-629: 723 PLUS redundant power supply module, hot-standby configuration for critical turbine applications.

I/O Expansion Modules

• 9906-630: 723 PLUS digital input expansion card, adds 16 discrete 24 VDC inputs for external permissive and shutdown logic.
• 9906-631: 723 PLUS analog output expansion, adds 4 × 4–20 mA outputs for valve positioner and indicator drives.
• 9906-632: 723 PLUS thermocouple input module, supports J/K/T type TCs for exhaust temperature monitoring.
• 9906-633: 723 PLUS RTD input module, 3-wire PT100 configuration, used in bearing temperature protection loops.

Replacement & Repair Components

• 9906-634: 723 PLUS main processor board (PCB assembly), direct replacement for failed CPU card without full unit replacement.
• 9906-635: 723 PLUS display and keypad assembly, front-panel replacement for units with failed HMI interface.

Sourcing Hard-to-Find & Obsolete 723 PLUS Parts

With the 723 PLUS series in its end-of-active-production lifecycle, OEM channel availability for many SKUs is limited or discontinued. DriveKNMS operates a dedicated obsolete and hard-to-find industrial controls inventory, with specific focus on Woodward governor and control platforms. Our sourcing network covers manufacturer-surplus stock, decommissioned plant equipment, and tested-serviceable units recovered from controlled shutdowns. All units are catalogued by part number, hardware revision, and firmware version where applicable. For facilities operating under long-term maintenance agreements or operating 723 PLUS-based systems beyond their original design life, DriveKNMS provides lifecycle extension support including: unit-level functional testing, parameter backup and restoration, cross-reference to compatible successor models (EasYgen-3000 series, MicroNet Plus), and documentation of known hardware failure modes by revision level. Minimum lead time for in-stock units is 1–3 business days; sourced units typically 2–4 weeks depending on configuration.

Quality Control for the 723 PLUS Range

The 723 PLUS platform uses a proprietary backplane bus architecture connecting the main processor card to I/O expansion modules. Standard bench testing procedures are insufficient for validating inter-card communication integrity. DriveKNMS applies a dedicated test protocol for 723 PLUS units that includes: (1) Power-on self-test (POST) verification with serial terminal monitoring of diagnostic output; (2) MPU signal simulation at calibrated frequencies (0–10,000 Hz) to verify speed channel linearity and overspeed trip setpoint accuracy; (3) Analog I/O calibration check across full 4–20 mA range using precision current source and meter; (4) Actuator output load test at rated current with waveform capture to detect driver stage degradation; (5) RS-422/RS-485 communication loopback test at 9600 and 19200 baud; (6) EEPROM read/write cycle verification to confirm non-volatile storage integrity; (7) Thermal soak at 55°C for 2 hours to screen latent component failures. Units passing all stages are issued a DriveKNMS test certificate with date, technician ID, and measured values.
