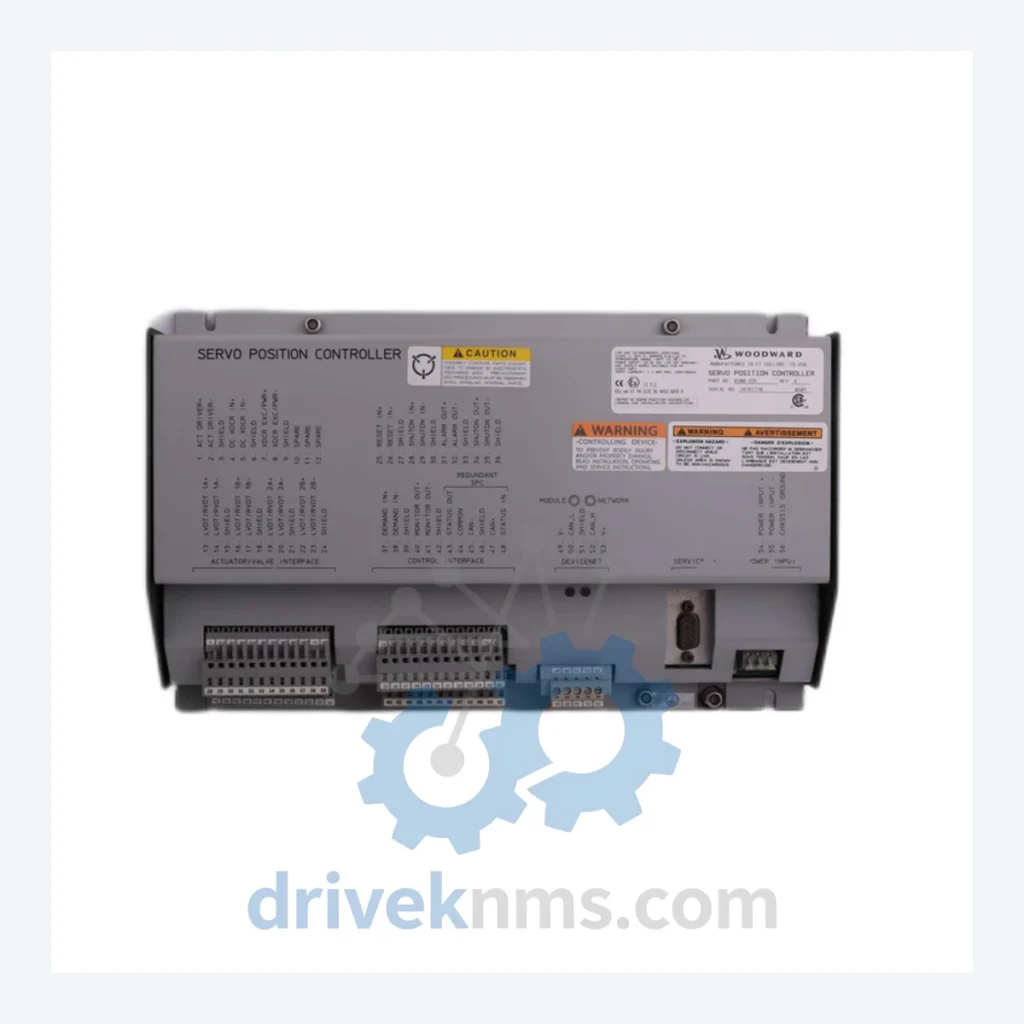

WOODWARD 8200 Series Modules | 8200-226 Servo Position Controller

Technical Dossier

Product Details And Specifications

WOODWARD 8200 Series: Comprehensive Module Range and Technical Overview

The WOODWARD 8200 Series represents a cornerstone product line in industrial turbine and engine control systems, with decades of deployment across critical infrastructure including petrochemical refineries, natural gas compression stations, nuclear auxiliary systems, and offshore oil & gas platforms. The 8200 Series governs speed, position, and load-sharing functions in rotating machinery applications where precision and reliability are non-negotiable. Its installed base spans major EPC contractors and OEM turbine packages globally, making it one of the most referenced legacy control platforms in the heavy industry spare parts market.

The Evolution of 8200 Series Architecture

The WOODWARD 8200 Series was developed as a modular analog and early digital control platform targeting turbine governor and actuator control applications. Early variants operated on discrete analog signal conditioning with hardwired setpoint inputs, designed for integration with WOODWARD hydraulic actuators and electro-hydraulic servo valves. As industrial control standards evolved through the 1990s and 2000s, the 8200 Series incorporated improved EMI shielding, expanded I/O channel counts, and compatibility with 4–20 mA process loops standard in DCS-integrated environments.

The series sits in the transition era between purely analog governors (such as the WOODWARD EG series) and fully digital platforms (such as the MicroNet and ProTech series). Many facilities running 8200 Series hardware have not migrated due to the cost and risk of turbine control system upgrades, creating sustained long-term demand for original spare modules. Compatibility with legacy WOODWARD actuators (e.g., TG-13, TG-17, EG-3P) is a key reason the 8200 Series remains in active service at sites with 20–40 year operational horizons.

8200 Series Full Catalog & Functionalities (SKU List)

The following models represent the verified active and legacy SKU range within the WOODWARD 8200 Series. Each unit is classified by primary function:

Servo & Position Controllers

• 8200-226: Servo position controller; analog feedback, single-channel actuator drive output for hydraulic servo valves.
• 8200-224: Servo amplifier module; drives electro-hydraulic actuators with 4–20 mA command input.
• 8200-414: Dual-channel servo controller; redundant output configuration for critical turbine applications.
• 8200-416: High-current servo driver; supports larger actuator coil loads up to 800 mA continuous.

Speed & Governor Control Modules

• 8200-292: Isochronous load-sharing governor module; used in parallel generator set applications.
• 8200-294: Speed control module with droop adjustment; compatible with magnetic pickup speed sensors.
• 8200-296: Overspeed detection module; hardwired trip output, fail-safe design for steam turbine protection.
• 8200-298: Load control module; integrates with KW transducers for baseload and import/export control.

Signal Conditioning & I/O Modules

• 8200-342: Analog input conditioner; accepts thermocouple and RTD inputs for temperature monitoring.
• 8200-344: 4–20 mA signal isolator and converter module; DIN rail mountable.
• 8200-346: Discrete I/O expansion module; 8 digital inputs, 4 relay outputs, 24 VDC logic.
• 8200-348: Analog output module; provides isolated 4–20 mA retransmission signals to DCS/SCADA.

Power Supply Modules

• 8200-102: 24 VDC regulated power supply module; 5A continuous, short-circuit protected.
• 8200-104: Dual-redundant power supply chassis; automatic switchover on primary failure.
• 8200-106: Battery-backed power module; maintains control output during momentary supply interruptions.

Communication & Interface Modules

• 8200-462: RS-232/RS-485 serial communication interface; supports MODBUS RTU protocol for DCS integration.
• 8200-464: Discrete hardwired interface panel; terminal strip assembly for field wiring termination.

Sourcing Hard-to-Find & Obsolete 8200 Series Parts

The WOODWARD 8200 Series has entered the mature-to-end-of-life phase of its product lifecycle. WOODWARD's factory support for many 8200 Series modules has been discontinued or significantly reduced, with lead times for new units — where available — extending to 26–52 weeks through standard distribution channels. For facilities operating turbines on 8200 Series hardware, unplanned downtime caused by a failed module represents a critical operational risk.

DriveKNMS maintains a dedicated inventory of tested 8200 Series spare modules sourced from decommissioned systems, OEM overstock, and controlled refurbishment programs. Our procurement team actively tracks global availability of 8200 Series hardware to ensure rapid response for emergency replacement requirements. We supply to end users, EPC contractors, and MRO warehouses across Asia, the Middle East, Europe, and the Americas.

For obsolete models where no direct replacement exists, DriveKNMS provides cross-reference analysis to identify compatible WOODWARD successor modules (e.g., MicroNet TMR, ProTech-203) and can coordinate with engineering teams on retrofit feasibility assessments.

Quality Control for the 8200 Series Range

All 8200 Series modules processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to dispatch:

• Visual Inspection: PCB examination for corrosion, burnt components, cracked solder joints, and capacitor degradation — common failure modes in 20+ year old analog control hardware.
• Power-On Verification: Module energized at rated supply voltage; supply rail voltages measured at test points against OEM specification tolerances.
• Signal Path Testing: For servo controllers (e.g., 8200-226), input command signals are injected and output drive current measured across the full operating range (typically 0–800 mA) to verify linearity and response.
• Feedback Loop Calibration: Position feedback circuits verified against OEM calibration data where available; trim potentiometers inspected for wear and set to factory reference positions.
• Isolation Testing: Channel-to-channel and channel-to-chassis isolation resistance measured to confirm no cross-talk or ground fault conditions.
• Burn-In: Modules subjected to 24-hour powered soak at ambient temperature to screen for early-life component failures before shipment.

Each unit ships with a test report documenting measured parameters and inspector sign-off.
