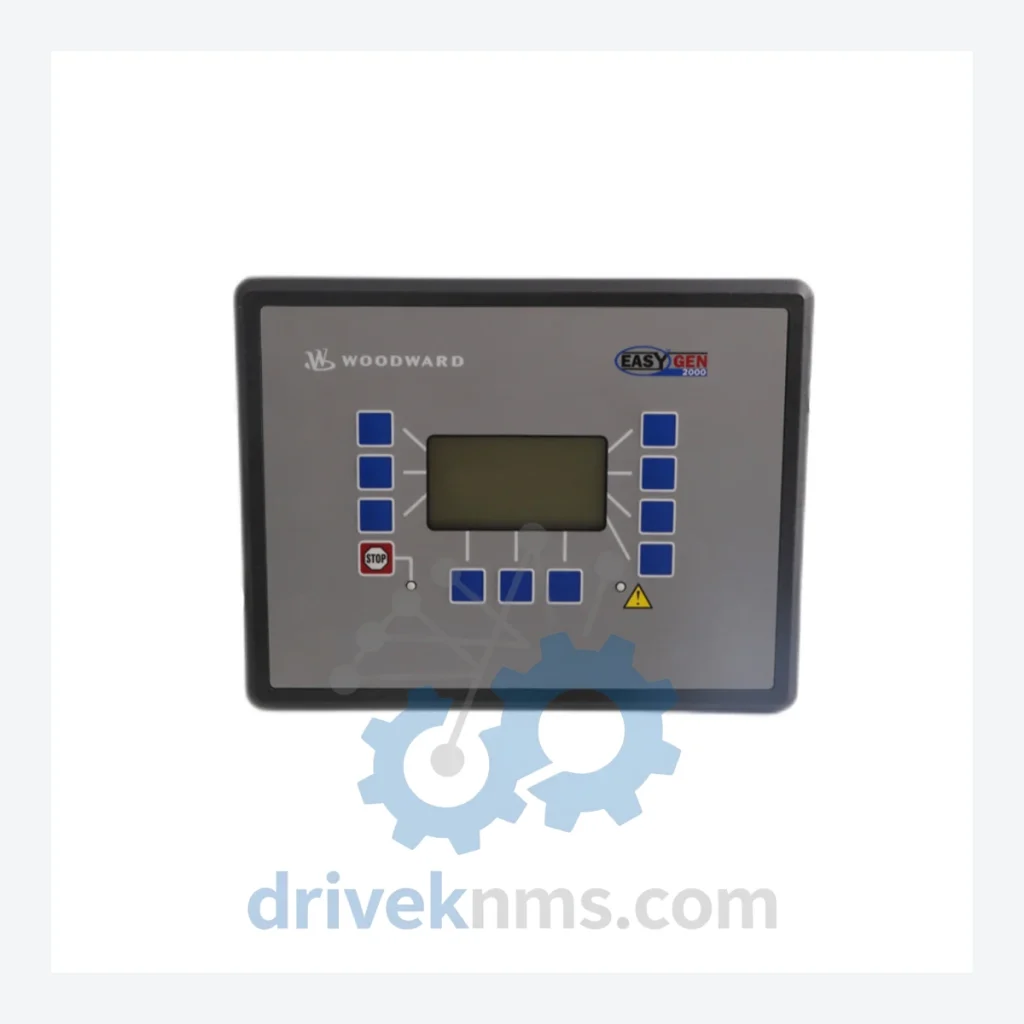

Woodward EasyGen-2500 Series Controllers – EASYGEN-2500-5

Technical Dossier

Product Details And Specifications

Woodward EasyGen-2500 Series Technical Notes

The Evolution of EasyGen-2500 Architecture

The EasyGen-2500 series succeeded the EasyGen-2000 platform, which was introduced in the early 2000s as a fixed-function genset controller with limited communication capability. The 2500 generation introduced a modular firmware architecture, allowing field-configurable logic blocks for load sharing, synchronization, and protection relay functions — previously requiring separate discrete relays.

Key architectural milestones include the introduction of the EasyGen-2500-5 variant, which added a fifth relay output for enhanced protection schemes, and the subsequent EasyGen-2500-5/P with expanded parallel bus support. Later revisions incorporated IEC 61850 GOOSE messaging compatibility for substation-grade integration. The series reached end-of-active-development around 2018, with Woodward transitioning new designs to the EasyGen-3000 and EasyGen-3500 platforms. However, the EasyGen-2500 remains in active service at thousands of installations globally, making long-term spare parts availability a primary operational concern for plant engineers and maintenance contractors.

Compatibility note: EasyGen-2500 firmware versions prior to 2.x are not forward-compatible with 3.x configuration files. Panel builders integrating replacement units must verify firmware revision against the original commissioning documentation.

EasyGen-2500 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented EasyGen-2500 series product range. Each unit is classified by primary function:

Generator Controllers (Standalone & Paralleling)

• EASYGEN-2500: Base genset controller, mains decoupling, 4 relay outputs, Modbus RTU.
• EASYGEN-2500-5: 5-relay output variant; adds dedicated fault relay for enhanced protection logic.
• EASYGEN-2500-5/P: Parallel bus version; supports generator-to-generator and mains paralleling simultaneously.
• EASYGEN-2500-5/P/CAN: Adds CANopen interface for load sharing over CAN bus topology.
• EASYGEN-2500-5/P/TCP: Ethernet/Modbus TCP variant; supports remote SCADA monitoring via RJ45.
• EASYGEN-2500-5/P/IEC: IEC 61850 GOOSE-enabled variant for substation integration.

Expansion & Accessory Modules

• EASYGEN-2500-EXP-AI: Analog input expansion module; 4x 4–20 mA channels for remote sensor integration.
• EASYGEN-2500-EXP-DI: Digital input expansion; 8x 24 VDC discrete inputs for external alarm/status signals.
• EASYGEN-2500-EXP-DO: Digital output expansion; 6x relay outputs for auxiliary load control.
• EASYGEN-2500-EXP-RS: RS-485 communication expansion for multi-drop Modbus networks.

Power Supply & Mounting

• EASYGEN-2500-PSU-24: 24 VDC panel-mount power supply module, DIN rail compatible.
• EASYGEN-2500-PSU-12: 12 VDC variant for mobile generator applications.
• EASYGEN-2500-PANEL-KIT: Flush-mount panel cutout kit with gasket and hardware for IP54 enclosure rating.

Communication & Display Accessories

• EASYGEN-2500-USB-CFG: USB configuration cable and ToolKit software license for firmware upload and parameter backup.
• EASYGEN-2500-DISP-EXT: Remote display extension module; mounts up to 10 m from controller for operator panel integration.
• EASYGEN-2500-MODEM-GSM: GSM/GPRS modem interface for remote alarm notification and parameter read-back.

Quality Control for the EasyGen-2500 Range

EasyGen-2500 controllers present specific test challenges due to their integrated synchronization logic, multi-relay output matrix, and communication bus interfaces. DriveKNMS applies the following test protocol to all EasyGen-2500 units prior to dispatch:

• Power-on functional test: Unit energized at rated supply voltage (12 VDC or 24 VDC); display initialization and firmware version confirmed.
• Relay output verification: All relay outputs (up to 5 on -5 variants) cycled under resistive load; contact resistance measured per IEC 60947-5-1.
• Analog input calibration check: 4–20 mA input channels verified against calibrated signal source; deviation logged.
• Communication bus test: Modbus RTU register map polled via RS-485; response time and data integrity verified. For TCP variants, Ethernet link established and register read confirmed.
• Synchronization logic simulation: Voltage, frequency, and phase angle inputs simulated; synchronization relay closure timing verified against factory specification.
• Parameter retention test: Configuration parameters written, unit power-cycled, parameters re-read to confirm EEPROM integrity.

Units failing any test stage are quarantined, documented, and either repaired by certified technicians or returned to the supplier. No unit is dispatched without a passing test record.
