Woodward NetCon Series: Comprehensive Module Range and Technical Overview

The Woodward NetCon system is a distributed control platform engineered for continuous-process industries including petrochemical refineries, natural gas compression stations, power generation facilities, and nuclear auxiliary systems. Deployed across thousands of installations globally, NetCon provides deterministic turbine and compressor control with a modular backplane architecture that supports hot-standby redundancy and distributed I/O expansion. Its installed base in heavy industry makes it one of the most widely maintained legacy DCS platforms in the energy sector, with active spare parts demand sustained by long-lifecycle plant operations that cannot justify full system migration.

The Evolution of NetCon Architecture

Woodward introduced the NetCon platform in the late 1980s as a successor to its earlier analog governor systems, transitioning turbine control from discrete relay logic to a networked digital architecture. The first-generation NetCon systems used a proprietary serial backplane with fixed-slot CPU and I/O assignments. By the mid-1990s, Woodward expanded the platform with the NetCon 5000 series, introducing a modular chassis design that allowed field-configurable slot assignments and remote chassis expansion via fiber-optic transceivers — the function served by the 5466-354 Remote Chassis Xcvr.

The NetCon 5000 architecture separates the master controller chassis from remote I/O expansion chassis using a high-speed serial link. The 5466-354 transceiver module provides the physical-layer interface for this link, enabling chassis-to-chassis distances of up to several hundred meters in plant environments. Later revisions introduced enhanced EMI shielding and revised firmware to support faster scan rates. As Woodward transitioned its product line toward the MicroNet and MicroNet Plus platforms in the 2000s, the NetCon 5000 series entered a maintenance-only lifecycle. Replacement parts, including transceivers, CPUs, and I/O modules, are no longer manufactured and must be sourced from certified aftermarket suppliers.

Compatibility note: NetCon 5000 modules are not interchangeable with MicroNet or MicroNet TMR hardware. Backplane connectors, firmware protocols, and power rail voltages differ across generations. Always verify chassis revision and firmware version before substituting modules.

NetCon Full Catalog & Functionalities (SKU List)

Controllers & CPUs

• 5462-258: NetCon 5000 Master Controller CPU, primary processing unit for turbine control logic
• 5462-259: NetCon 5000 Redundant CPU Module, hot-standby backup processor for critical applications
• 5462-372: NetCon 5000 Enhanced CPU, increased scan rate and expanded memory for complex control schemes
• 5462-470: NetCon 5000 CPU with integrated Modbus RTU communications port

Remote Chassis & Communication Transceivers

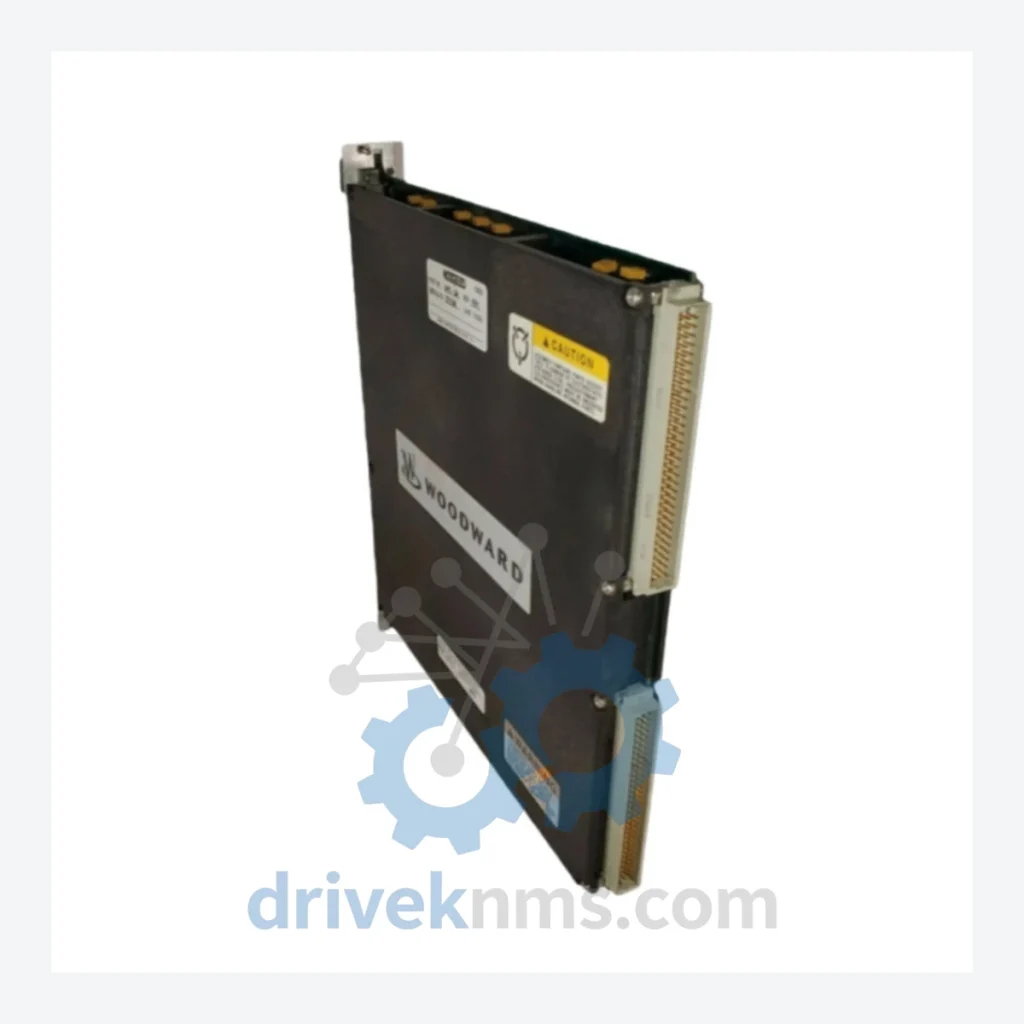

• 5466-354: NetCon Remote Chassis Xcvr, fiber-optic transceiver for master-to-remote chassis serial link
• 5466-355: NetCon Remote Chassis Xcvr (Slave), paired receiver module installed in remote expansion chassis
• 5466-470: NetCon Chassis Communication Adapter, RS-422 backplane link interface for short-distance expansion

Analog Input Modules

• 5463-258: 8-Channel Analog Input Module, 4–20 mA, 12-bit resolution, for process variable acquisition
• 5463-372: 16-Channel Analog Input Module, differential inputs, for thermocouple and RTD signals
• 5463-470: High-Speed Analog Input Module, 1 ms scan, for vibration and dynamic pressure monitoring

Analog Output Modules

• 5464-258: 4-Channel Analog Output Module, 4–20 mA, for valve positioner and actuator control
• 5464-372: 8-Channel Analog Output Module, isolated outputs, for multi-loop control applications

Digital Input / Output Modules

• 5465-258: 16-Channel Digital Input Module, 24 VDC, for discrete status and permissive signals
• 5465-372: 16-Channel Digital Output Module, relay contact, for solenoid valve and alarm annunciator drive
• 5465-470: 32-Channel Digital I/O Module, mixed configuration, for high-density discrete control panels

Power Supply Modules

• 5461-258: NetCon 5000 Power Supply, 24 VDC input, regulated backplane power for full chassis load
• 5461-372: NetCon 5000 Redundant Power Supply, dual-feed configuration for uninterrupted operation

Sourcing Hard-to-Find & Obsolete NetCon Parts

The Woodward NetCon 5000 series reached end-of-manufacture status, and OEM factory stock has been exhausted. Plants operating NetCon-based turbine control systems face a sourcing environment where replacement modules must be obtained from aftermarket inventory, decommissioned equipment, or certified repair facilities.

DriveKNMS maintains a dedicated inventory of NetCon 5000 spare parts, including transceivers, CPUs, I/O modules, and power supplies. Our sourcing network covers decommissioned refinery and power plant equipment globally, allowing us to fulfill requests for low-volume, high-criticality parts that standard distributors cannot supply. For end-users requiring long-term maintenance support without full system replacement, DriveKNMS provides a lifecycle extension service: we identify equivalent-function modules, verify firmware compatibility, and supply tested units with documentation traceable to the original Woodward part number.

Quality Control for the NetCon Range

NetCon 5000 modules present specific test challenges due to their proprietary backplane protocol and fiber-optic communication interfaces. DriveKNMS applies a structured verification process to all NetCon units prior to shipment.

Transceiver modules such as the 5466-354 are tested for optical power output, receiver sensitivity threshold, and link synchronization under simulated backplane load. CPU modules undergo firmware version verification, RAM and EEPROM integrity checks, and watchdog timer function tests. Analog I/O modules are calibrated against NIST-traceable references and verified across the full 4–20 mA range with linearity and offset error measurements recorded. Digital I/O modules are cycled through all channel states under rated voltage and current to verify contact integrity and optocoupler response time. Power supply modules are load-tested at 100% rated current with output ripple and regulation measurements documented.

All units are shipped with a test report referencing the original Woodward part number, firmware revision where applicable, and test date. Units that do not meet specification are quarantined and not offered for sale.
