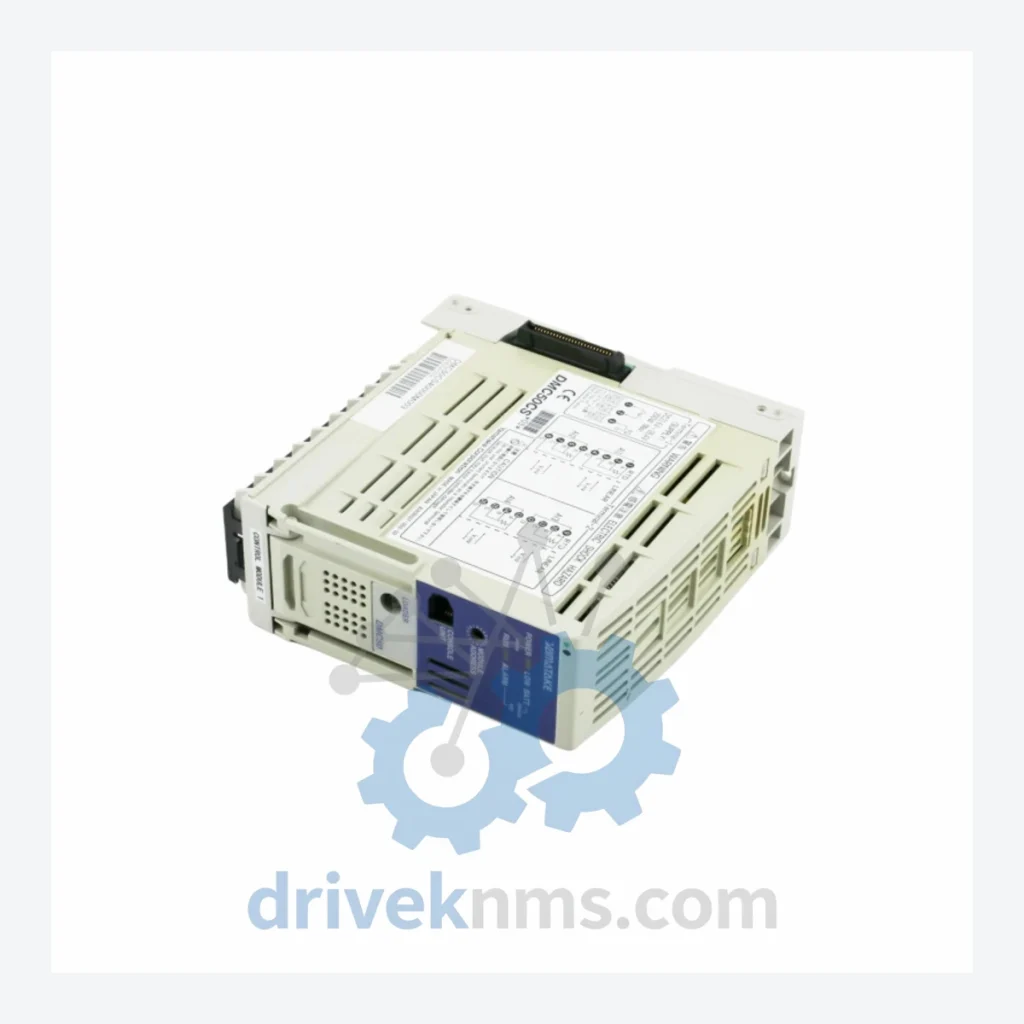

Yamatake DMC50S 0020-29526 196918A-02 0116358-001 Communication Module – Obsolete DMC Series Spare Part

Technical Dossier

Product Details And Specifications

Yamatake DMC50S 0020-29526 196918A-02 0116358-001 Communication Module – Obsolete DMC Series Spare Part

When a communication module fails inside a Yamatake-based distributed control system, the consequences extend far beyond a single line stoppage. Plants running legacy DMC-series infrastructure face a stark choice: locate the exact replacement part, or commit to a full system migration that routinely costs $500,000–$3,000,000 USD in engineering, commissioning, retraining, and lost production. The DMC50S 0020-29526 196918A-02 0116358-001 is no longer manufactured. Every unit remaining in the global supply chain represents a direct instrument of asset protection for facilities that cannot afford — or are not yet ready — to abandon proven control architecture.

DriveKNMS maintains verified stock of this module sourced through controlled industrial channels. Availability is finite and not replenishable from the OEM.

Technical Specifications

Note: Electrical parameters such as supply voltage, communication protocol specifics, and I/O ratings are not published here to prevent misapplication. Buyers are advised to cross-reference against original system documentation or contact our technical team for verification prior to ordering.

Solving the Discontinued Hardware Crisis

Yamatake's DMC-series controllers were deployed extensively across chemical processing, pharmaceutical manufacturing, and utility plants throughout the 1990s and 2000s. The communication module within this architecture serves as the data backbone — managing real-time signal exchange between field devices, operator stations, and the central controller. Without a functioning communication module, the entire control loop is severed.

Azbil Corporation (the successor entity to Yamatake) ceased production of DMC-series components as part of its platform consolidation toward the Harmonas-DEO and Savic-net FX architectures. No direct OEM replacement exists. Third-party alternatives require protocol translation hardware, custom engineering, and in most cases, a full I/O remapping exercise — a project that rarely costs less than six figures and introduces significant commissioning risk.

For plant managers operating under capital expenditure constraints, or managing systems mid-lifecycle where a full DCS migration is planned for a future budget cycle, sourcing a verified DMC50S communication module is the only operationally sound path to maintaining uptime today. A single module can sustain an entire production line for an additional 3–7 years without any changes to existing PLC logic, HMI configurations, or field wiring.

The strategic calculus is straightforward: the cost of this spare part is measured in hundreds of dollars. The cost of an unplanned shutdown while awaiting an engineering solution is measured in days of lost production and emergency contractor fees.

Condition & Reliability Assurance

Obsolete parts sourced outside the OEM supply chain carry inherent risk. DriveKNMS applies a structured 5-step qualification process to every unit before it is offered for sale:

Step 1 – Visual and Physical Inspection: Full examination of PCB surfaces, connector pins, and housing integrity. Units with evidence of burn marks, physical impact, or corrosion on contact surfaces are rejected at intake.

Step 2 – Electrolytic Capacitor Assessment: Legacy modules from this era commonly use aluminum electrolytic capacitors with a rated service life of 10–15 years. Each unit is assessed for capacitor bulging, leakage, or ESR deviation. Units showing capacitor degradation are either recapped with equivalent-spec components or removed from inventory.

Step 3 – Firmware and Label Verification: Where accessible, firmware revision markings and internal label codes (including the 196918A-02 and 0116358-001 sub-identifiers) are cross-checked against known production records to confirm authenticity and revision compatibility.

Step 4 – Pin and Connector Integrity Check: All edge connectors and backplane interface pins are inspected under magnification for oxidation, bending, or cold solder joints. Contact surfaces are cleaned where required.

Step 5 – Functional Verification (where test fixtures are available): Units are powered and communication handshake behavior is verified against known-good reference systems where test infrastructure permits.

Units that pass all five stages are classified as Qualified Stock. Units that pass visual and physical stages only are classified as Untested Surplus and are clearly labeled as such. We do not mix classifications.

Key Features for System Maintenance

Drop-in Replacement: The DMC50S 0020-29526 196918A-02 0116358-001 installs directly into the existing backplane slot. No hardware adapters, no wiring modifications.

No Reprogramming Required: Communication parameters and node addressing are retained in the system controller. Swapping this module does not trigger a re-engineering requirement on the PLC or DCS configuration side.

Avoids Engineering Reconstruction Costs: Replacing this module with a non-native alternative would require protocol gateway hardware, I/O remapping, and HMI reconfiguration. A direct replacement eliminates all of that cost and risk.

Supports Long-Term Sparing Strategy: Facilities managing aging Yamatake DMC infrastructure should consider holding 1–2 additional units as cold spares. As global surplus inventory of this module continues to deplete, future sourcing will become progressively more difficult and expensive. Procurement now, at current market pricing, is a defensible asset protection decision.

Extends System Life by 5–10 Years: Plants that maintain a complete critical spare inventory for their DMC-series systems — communication modules, power supplies, I/O cards — can realistically defer a full DCS migration by 5 to 10 years. At a migration cost of $1M–$3M, the ROI on a proactive sparing program is not difficult to justify to capital planning committees.

FAQ

Q: What warranty applies to an obsolete part like this?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this component, warranty terms are confirmed in writing at the time of order. Extended warranty arrangements for critical sparing programs are available on request.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from documented industrial channels — decommissioned plant inventories, authorized distributor closeouts, and verified surplus dealers. Label codes, including the 196918A-02 and 0116358-001 sub-identifiers, are cross-referenced during intake. We do not source from unverified online marketplaces. Documentation of provenance is available for qualified buyers.

Q: Should I buy more than one unit?
A: For any facility where this module is a single point of failure in an active production system, holding at least one cold spare is a minimum prudent standard. Given the depletion rate of global surplus stock for discontinued Yamatake DMC components, procurement of 2–3 units now is a reasonable long-term sparing position. Our team can advise on storage conditions to maximize shelf life.

Q: Can you help identify other critical spares for our Yamatake DMC system?
A: Yes. DriveKNMS specializes in obsolete industrial automation components. Contact our team with your system BOM or a list of installed modules and we will advise on availability and recommended sparing quantities.
