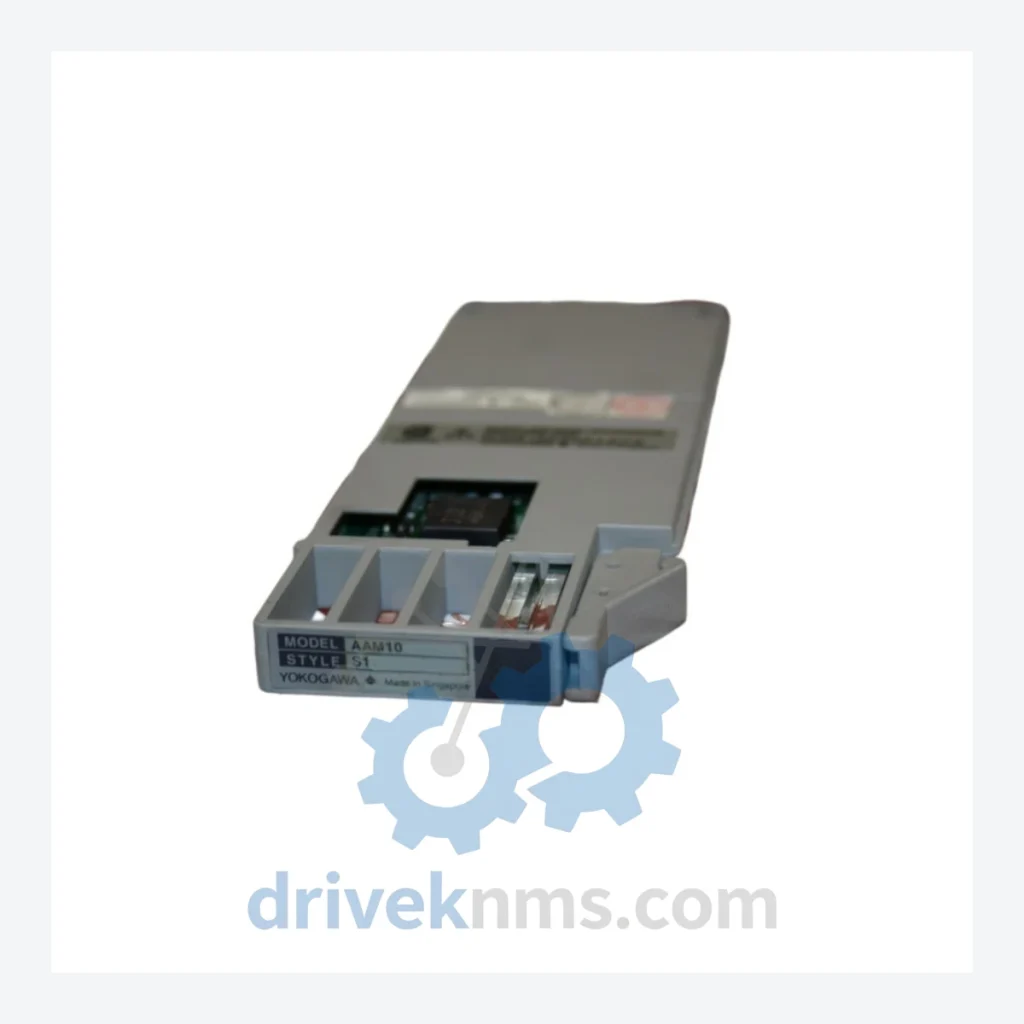

YOKOGAWA STARDOM / CENTUM Series Analog Input Modules: AAM10

Technical Dossier

Product Details And Specifications

YOKOGAWA AAM10 Series Technical Notes

The YOKOGAWA AAM10 is an analog input module deployed within the YOKOGAWA CENTUM and STARDOM distributed control system (DCS) architectures. This module class occupies a critical position in global heavy industry installations — including petrochemical refineries, nuclear power facilities, LNG terminals, and continuous-process chemical plants — where high-density analog signal acquisition is a non-negotiable operational requirement. The AAM10 series accepts current (4–20 mA) and voltage (1–5 V DC) input signals from field transmitters, converting them to digital values for processing by the system CPU. Its compact, rail-mounted form factor and backplane bus interface make it a standard building block in CENTUM CS, CENTUM CS 3000, and STARDOM FCN/FCJ controller nodes. Installed base counts for this module family run into the tens of thousands of units across Asia-Pacific, the Middle East, and Europe, reflecting its role as a foundational I/O component in long-lifecycle DCS environments.

The Evolution of AAM10 Architecture

The AAM10 module lineage traces to YOKOGAWA's CENTUM V platform (introduced in the late 1980s), where analog I/O modules were designed around proprietary backplane bus protocols with fixed channel densities. The transition to CENTUM CS in the mid-1990s introduced improved signal isolation and higher channel counts per slot, while CENTUM CS 3000 (released 1998) standardized the Vnet/IP communication backbone and introduced hot-swap capability for I/O modules including the AAM10 family. The STARDOM FCN platform (2002 onward) adapted the same I/O module mechanical form factor for standalone controller nodes, enabling cross-platform spare parts commonality in mixed-fleet installations.

Key architectural milestones: early AAM10 variants used parallel backplane addressing; later revisions adopted serial field bus addressing for reduced wiring overhead. Firmware-level calibration replaced hardware trimmer potentiometers from the CS 3000 generation onward. Current-generation equivalents in the CENTUM VP platform (successor to CS 3000) maintain backward-compatible slot dimensions but use updated ASIC signal conditioning, meaning direct substitution requires firmware version verification. Plants running CENTUM CS or CS 3000 that have not migrated to VP face increasing obsolescence risk for AAM10-class modules, making third-party spare parts sourcing a standard lifecycle management strategy.

AAM10 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the YOKOGAWA CENTUM / STARDOM analog input module family. Each entry reflects a distinct hardware revision, channel count, or signal range specification:

AAM10: 16-ch analog input, 4–20 mA / 1–5 V, CENTUM CS 3000 compatible
AAM10S: 16-ch analog input with HART communication pass-through support
AAM11: 8-ch analog input, high-accuracy ±0.1% FS, isolated channel design
AAM11S: 8-ch analog input with HART, individual channel isolation, CS 3000
AAM21: 16-ch analog input, extended voltage range ±10 V DC, CENTUM VP
AAM21S: 16-ch analog input with HART, CENTUM VP platform, SIL-rated variant
AAM50: 32-ch high-density analog input, multiplexed, CENTUM CS 3000 / VP
AAM51: 32-ch high-density analog input with HART multiplexing, VP platform
AAB841: 16-ch analog input, thermocouple / mV input, CENTUM CS 3000
AAB841S: 16-ch thermocouple input with HART, isolated, CS 3000 / VP
AAT141: 8-ch RTD / resistance input module, Pt100 / Ni100, CENTUM CS 3000
AAT141S: 8-ch RTD input with HART pass-through, VP platform
AAM10-H: Hot-swap certified variant of AAM10, CENTUM CS 3000 R3 and later
AAM10-E: Extended temperature range (-20°C to +70°C) analog input, field cabinet use
F3AD04-0N: STARDOM FCN 4-ch analog input, 4–20 mA, compatible with FCN-100 / FCN-500
F3AD08-0N: STARDOM FCN 8-ch analog input, 4–20 mA / 1–5 V, standard FCN I/O
F3AD04-1N: STARDOM FCN 4-ch analog input, isolated, SIL 2 rated
F3XD32-3N: STARDOM FCN 32-ch mixed analog I/O expansion module
