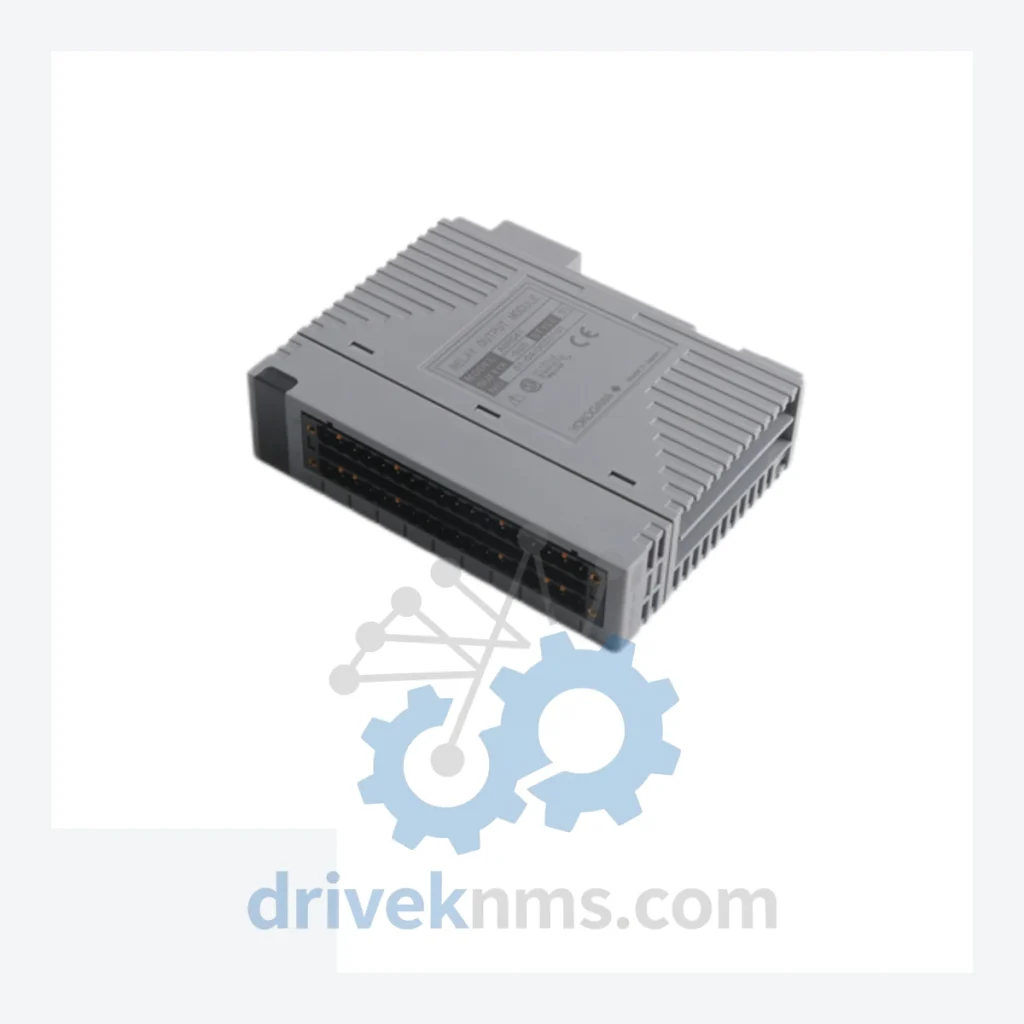

Yokogawa ADR541-S00 S1 Relay Output Module – Obsolete CENTUM CS Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa ADR541-S00 S1 Relay Output Module – Obsolete CENTUM CS Spare Part

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Detailed electrical parameters (contact rating, channel count, isolation voltage) are not published here to prevent specification errors. Confirmed datasheet values are provided upon request with your inquiry.

Solving the Discontinued Hardware Crisis

The CENTUM CS 3000 and CENTUM VP platforms represent decades of process tuning, loop configuration, and operator familiarity. The relay output layer — of which the ADR541-S00 S1 is a core component — interfaces directly with field devices: solenoid valves, motor starters, alarm annunciators, and interlock circuits. There is no software patch that substitutes for a failed relay output card. The module must be physically replaced with an identical unit, or the I/O architecture must be redesigned from scratch.

Redesigning I/O architecture is not a maintenance task. It is a capital project. It requires new marshalling cabinets, revised loop drawings, updated safety instrumented system documentation, and a full functional acceptance test before the process can restart. For most facilities, that sequence takes months. The ADR541-S00 S1 eliminates that sequence entirely. An identical replacement module restores the system to its validated state without touching a single configuration file.

Condition & Reliability Assurance

DriveKNMS applies a five-stage quality process to every obsolete module before it leaves our facility:

• Visual and mechanical inspection: Board-level examination for physical damage, corrosion on connector pins, and evidence of prior field repairs or unauthorized modifications.
• Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode in modules manufactured more than 10 years ago. Each unit is evaluated for capacitor condition; units showing ESR drift or physical deformation are flagged and not shipped.
• Firmware and revision verification: The hardware revision and firmware suffix (S1 in this case) are confirmed against the unit's label and internal markings to ensure compatibility with the target system revision.
• Functional power-on test: Where test fixtures are available for the module type, a controlled power-on sequence is performed to verify basic operational status.
• Packaging for long-term storage: Units are sealed in anti-static packaging with desiccant and labeled with inspection date and technician ID. Storage-ready units can be held in controlled conditions for multi-year strategic inventory programs.

Key Features for System Maintenance

The ADR541-S00 S1 is a direct, drop-in replacement for the original installed unit. No re-engineering is required:

Extending Automation Asset Life by 5–10 Years: A Practical Framework

For plant management teams facing DCS retirement pressure from corporate asset committees, the financial case for strategic spare parts procurement is straightforward. A CENTUM CS 3000 system that has been running reliably for 15 years carries embedded value that a replacement system cannot replicate on day one: tuned PID parameters, operator muscle memory, validated safety logic, and zero integration risk with existing field instrumentation.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I confirm the unit is new or professionally refurbished — not a field pull?
Every unit shipped by DriveKNMS is accompanied by an inspection report that documents the condition classification, test results, and technician sign-off. Field-pull units are classified separately and are not represented as new or refurbished.
