Yokogawa ADV561-P00/S2 Digital Output Module – Obsolete CENTUM CS Spare Part

Technical Dossier

Product Details And Specifications

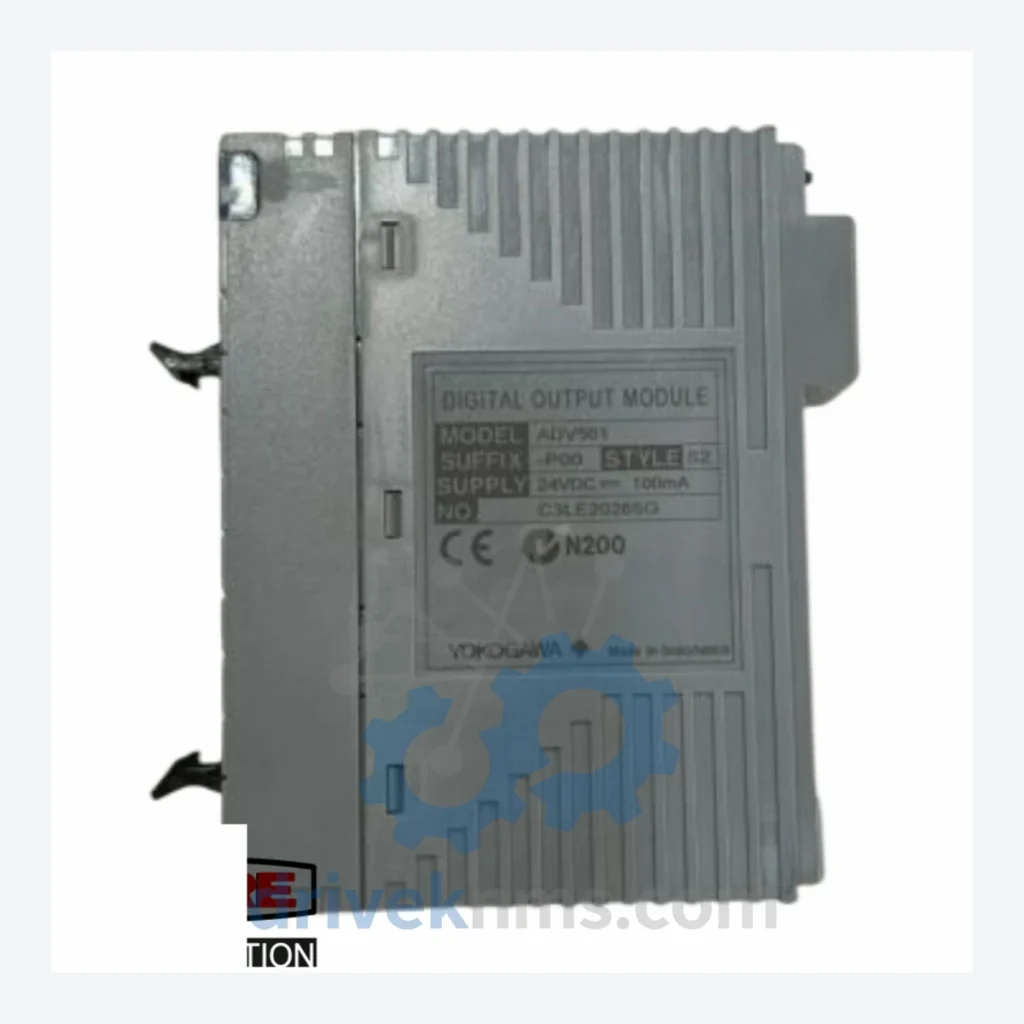

Yokogawa ADV561-P00/S2 Digital Output Module – Obsolete CENTUM CS Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not listed here are not confirmed from primary sources. DriveKNMS does not publish unverified specifications. Contact us for datasheet documentation.

Solving the Discontinued Hardware Crisis

Yokogawa officially discontinued the CENTUM CS platform and its associated I/O modules, including the ADV500 series, as the product line transitioned toward CENTUM VP. However, tens of thousands of CENTUM CS and CS 3000 systems remain in active service across petrochemical, power generation, pulp and paper, and pharmaceutical facilities worldwide. These plants were engineered around specific I/O architectures. The ADV561-P00/S2 is not a generic digital output card — it is a platform-specific module with defined slot addressing, firmware handshake protocols, and field wiring termination standards that are native to the CENTUM CS backplane.

Substituting a non-OEM or cross-platform module requires engineering validation, potential firmware modification, and in regulated industries, re-qualification of the control loop. The true cost of that path is rarely just the hardware. It is the engineering hours, the production interruption, and the regulatory documentation burden. Sourcing an original ADV561-P00/S2 eliminates all of that. The module slots in, the system recognizes it, and operations resume. That is the operational logic behind maintaining a strategic spare inventory of discontinued I/O modules.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all discontinued modules before dispatch review:

• Step 1 – Visual and Physical Inspection: Full examination of PCB surface, connector pins, and housing for corrosion, mechanical damage, or evidence of prior field failure.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy I/O modules stored beyond their design service life. Each unit is assessed for capacitor condition. Units with suspect capacitors are segregated.
• Step 3 – Pin and Connector Integrity Check: Backplane connector pins are inspected for oxidation, bending, and contact resistance issues that would cause intermittent faults in service.
• Step 4 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for CENTUM CS / CS 3000 systems.
• Step 5 – Functional Verification: Modules are powered and output channel continuity is verified prior to packaging.

Units that do not pass all five steps are not offered for sale. Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in Replacement: The ADV561-P00/S2 installs directly into the existing CENTUM CS backplane slot with no hardware modification required.
• No Reprogramming Required: The DCS recognizes the module through its native slot addressing. Control logic, tag assignments, and I/O mapping remain intact.
• Avoids Engineering Reconstruction Costs: Retaining the original module type eliminates the need for loop re-engineering, system re-validation, or operator retraining — costs that accumulate rapidly when a platform migration is forced by parts unavailability.
• Supports Long-Term Asset Life Extension: A single verified spare can sustain system operation for years. Plants with documented spare parts programs for CENTUM CS I/O modules have deferred capital replacement projects by a decade or more.
• Documented Provenance: DriveKNMS provides sourcing documentation and condition reports to support maintenance records and audit requirements.

Q: Can DriveKNMS source other CENTUM CS I/O modules?
A: Yes. DriveKNMS specializes in obsolete and hard-to-find automation components across multiple DCS and PLC platforms. Contact us with your full BOM or spare parts list for a consolidated quotation.
