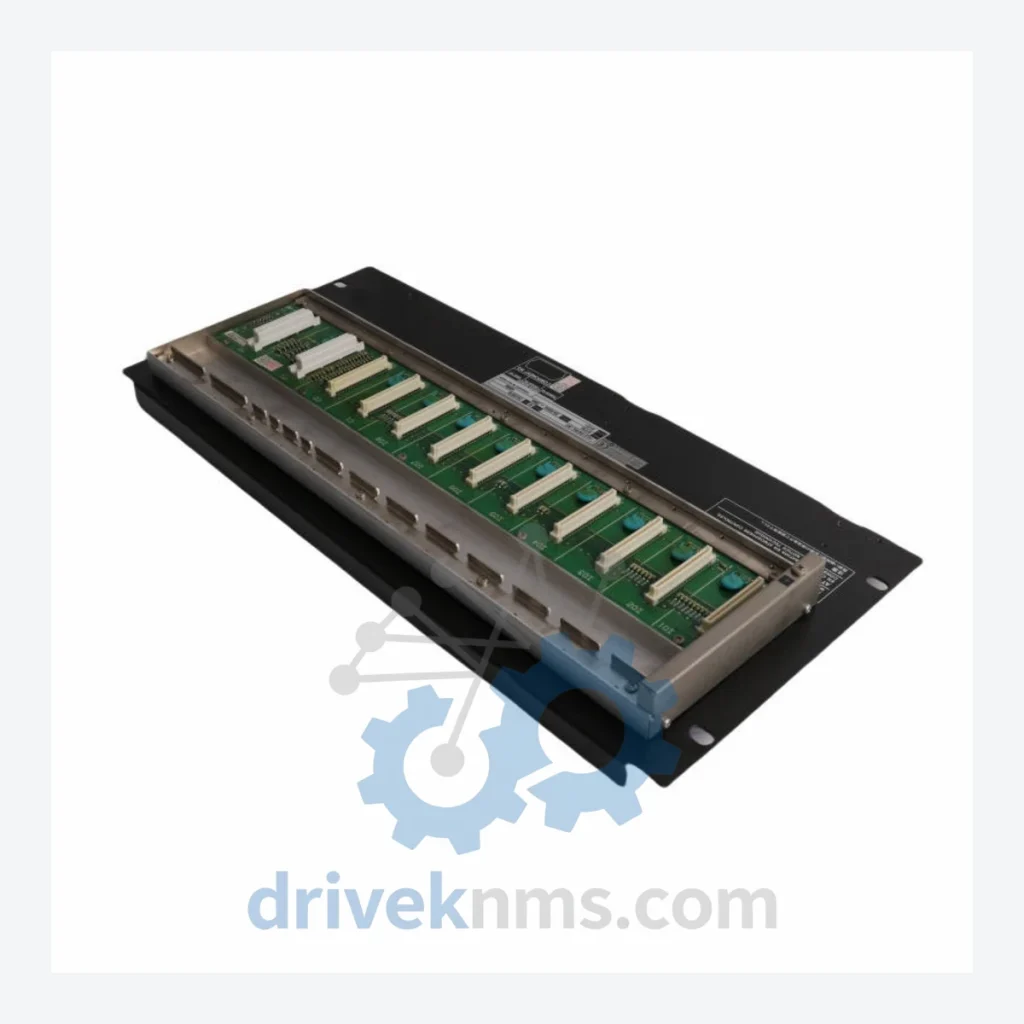

Yokogawa AFV10D-S41211 S2 Field Control Unit – Obsolete CENTUM CS 3000 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa AFV10D-S41211 S2 Field Control Unit – Obsolete CENTUM CS 3000 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on OEM documentation references. DriveKNMS does not fabricate technical data.

Solving the Discontinued Hardware Crisis

The Yokogawa CENTUM CS 3000 platform was widely deployed across refining, petrochemical, power generation, and pharmaceutical facilities throughout the 1990s and 2000s. Many of these installations remain in active production service. The AFV10D-S41211 S2 Field Control Unit sits at the core of the CS 3000 architecture — it handles field signal acquisition, control execution, and communication with the engineering workstation. There is no plug-in substitute from the current CENTUM VP generation without a full system re-engineering project.

Plant managers operating CS 3000 systems face a structural dilemma: the OEM has ended hardware support, yet the cost and operational risk of a full DCS migration cannot be justified within a normal maintenance budget cycle. The practical answer is a disciplined spare parts strategy. A single AFV10D-S41211 S2 unit held in climate-controlled storage can defer a multi-million-dollar capital project by five to ten years — provided the unit is sourced from a supplier with verifiable quality controls.

Facilities that have successfully extended CS 3000 service life share a common approach: they identify the five to eight modules with the highest failure probability, secure two to three units of each, and establish a documented swap procedure. The AFV10D-S41211 S2 consistently appears on that critical list. Its internal power regulation components and communication interfaces are subject to age-related degradation that accelerates after fifteen years of continuous operation.

Condition & Reliability Assurance

DriveKNMS applies a five-step inspection protocol to all obsolete FCU modules before dispatch review:

• Step 1 – Visual and mechanical inspection: Enclosure integrity, connector pin condition, corrosion assessment on all exposed contacts and PCB surfaces.
• Step 2 – Electrolytic capacitor evaluation: Capacitors are the primary failure point in aged control modules. Each unit is assessed for bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with OEM-equivalent components or rejected.
• Step 3 – Firmware version verification: The installed firmware revision is documented and cross-referenced against known CS 3000 compatibility matrices. Mismatched firmware is flagged before dispatch review.
• Step 4 – Pin and connector integrity check: All I/O connectors are inspected under magnification for oxidation, bent pins, and contact resistance anomalies.
• Step 5 – Functional power-on test: Where test bench infrastructure permits, units are powered and basic communication response is verified. Test results are documented and accompany the shipment.

Key Features for System Maintenance

• Drop-in replacement: The AFV10D-S41211 S2 installs directly into the existing CS 3000 field control cabinet without hardware modification.
• No reprogramming required: Control logic, tag configurations, and tuning parameters stored in the DCS database are unaffected by a module swap. Operator intervention is limited to the physical replacement procedure.
• Avoids engineering reconstruction costs: A verified spare eliminates the need to engage a system integrator for emergency re-engineering. The difference between a planned swap and an unplanned migration can exceed USD 500,000 in direct costs alone.
• Supports long-term asset lifecycle planning: Procurement teams can document the spare as a capital asset, extending the depreciation schedule of the existing DCS infrastructure.

Q: How do I confirm the unit is new surplus versus refurbished?
A: Each shipment is accompanied by a condition report specifying the unit's history, inspection results, and any refurbishment work performed. New surplus units retain original Yokogawa labeling and show no evidence of prior installation.

Q: Should we hold more than one unit in reserve?
A: For facilities with continuous process operations, holding a minimum of two AFV10D-S41211 S2 units is the standard recommendation. Global supply of this module is finite and diminishing. Each year that passes reduces the number of recoverable units in the secondary market. Procurement decisions deferred by twelve months frequently result in either unavailability or a significant price increase.

Q: Can this module be used in CENTUM VP systems?
A: The AFV10D-S41211 S2 is designed for the CENTUM CS 3000 architecture. Compatibility with CENTUM VP requires confirmation from a qualified Yokogawa system engineer. DriveKNMS does not certify cross-platform compatibility.
