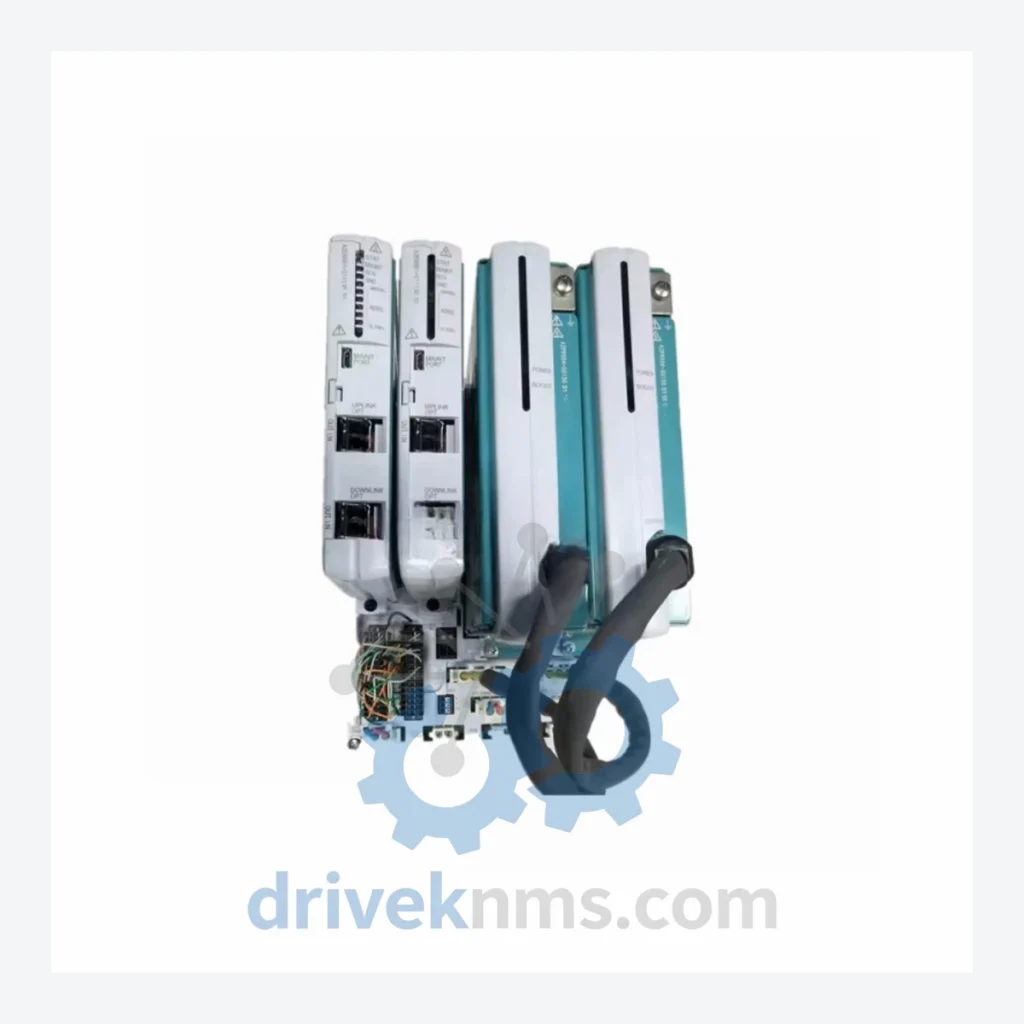

Yokogawa CENTUM CS 3000 A2-Series Modules: A2PW504-S0130 A2EN501-S11130 A2NN30D-440101113

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM CS 3000 A2-Series: Comprehensive Module Range and Technical Overview

The Yokogawa CENTUM CS 3000 A2-series represents a core hardware generation within Yokogawa's Distributed Control System (DCS) platform, deployed extensively across heavy industrial sectors including petrochemical refineries, nuclear power facilities, LNG terminals, pulp and paper plants, and large-scale chemical processing complexes. The A2-series field control station (FCS) modules — encompassing power supply units, I/O modules, communication adapters, and node controllers — form the backbone of process automation infrastructure in facilities where continuous uptime is a non-negotiable operational requirement. Installed base across Asia-Pacific, the Middle East, and Europe remains substantial, making long-term spare parts availability a critical procurement concern for plant maintenance engineers and reliability teams.

The Evolution of CENTUM CS 3000 A2-Series Architecture

Yokogawa's CENTUM platform has progressed through several major generations: CENTUM V (1993), CENTUM CS (1994), CENTUM CS 1000/3000 (1998–2008), and CENTUM VP (2008–present). The A2-series modules belong to the CENTUM CS 3000 generation, characterized by a dual-redundant Vnet/IP communication bus, a modular FCS chassis architecture, and support for both analog and digital I/O with HART pass-through capability.

The A2-series introduced a standardized backplane bus that allowed hot-swap replacement of I/O modules without process interruption — a significant advancement over the earlier CS generation. Node controllers in this series (e.g., A2NN30D) manage communication between the FCS processor and I/O nest modules, operating over a high-speed internal bus at deterministic scan rates. Power supply modules (e.g., A2PW504-S0130) provide redundant 24VDC distribution with built-in diagnostics. Ethernet node modules (e.g., A2EN501-S11130) bridge the FCS to the Vnet/IP control network.

As CENTUM CS 3000 has entered its end-of-active-production phase (Yokogawa officially transitioned support focus to CENTUM VP post-2015), A2-series modules are no longer manufactured in volume. Plants running CS 3000 systems must source replacement modules from certified aftermarket suppliers to maintain operational continuity through extended lifecycle support programs.

CENTUM CS 3000 A2-Series Full Catalog & Functionalities (SKU List)

Power Supply Modules

• A2PW504-S0130: Redundant 24VDC power supply module for FCS nest, 50W output capacity
• A2PW502-S0130: Standard single-channel 24VDC FCS nest power supply, non-redundant configuration
• A2PW501-S0130: Base power supply unit for compact FCS chassis, 30W rated output

Ethernet / Network Node Modules

• A2EN501-S11130: Vnet/IP Ethernet node module, 100BASE-TX, dual-port redundant network interface
• A2EN502-S11130: Enhanced Ethernet node module with extended diagnostic register support
• A2EN401-S11130: Earlier-generation Ethernet node, single-port, compatible with CS 3000 R3.x firmware

Node Controllers

• A2NN30D-440101113: FCS node controller, manages I/O nest communication, supports up to 16 I/O modules per nest
• A2NN20D: Compact node controller for reduced-capacity FCS configurations, up to 8 I/O modules
• A2NN10D: Entry-level node controller, single nest support, used in small-scale FCS deployments

Analog Input Modules

• AAI141-S00S2: 16-channel analog input, 4–20mA, with HART communication support
• AAI143-S00S2: 8-channel analog input, high-accuracy 16-bit resolution, isolated channels
• AAI841-S00S2: 16-channel analog input with dual-redundant signal path for critical measurements

Analog Output Modules

• AAO141-S00S2: 8-channel analog output, 4–20mA, HART-enabled for field device diagnostics
• AAO841-S00S2: 8-channel redundant analog output module for final control elements

Digital Input / Output Modules

• ADV151-P00S1: 32-channel 24VDC digital input module, sink type, high-density I/O nest
• ADV551-P00S1: 32-channel 24VDC digital output module, source type, with short-circuit protection
• ADV161-P00S1: 16-channel digital input, 110VAC/VDC, for high-voltage field signal interfaces

Communication / Bus Modules

• ALR111-S00S1: FOUNDATION Fieldbus H1 communication module, 2-segment, intrinsically safe option
• ALP111-S00S1: PROFIBUS DP communication module, master mode, up to 125 slave devices

Sourcing Hard-to-Find & Obsolete CENTUM CS 3000 A2-Series Parts

DriveKNMS maintains a dedicated inventory program for Yokogawa CENTUM CS 3000 A2-series modules. As Yokogawa has progressively shifted its manufacturing and support resources toward the CENTUM VP platform, original factory supply of A2-series components has become constrained. DriveKNMS sources modules through certified secondary market channels, including decommissioned plant asset recovery, authorized distributor excess stock, and direct factory-surplus acquisition.

All A2-series modules in DriveKNMS inventory are cataloged by part number, suffix revision, and firmware compatibility level. For modules such as A2PW504-S0130, A2EN501-S11130, and A2NN30D-440101113, DriveKNMS maintains stock records updated on a rolling basis. Customers requiring bill-of-materials (BOM) matching for a specific plant revision level can submit their full parts list for cross-reference against available inventory.

Quality Control for the CENTUM CS 3000 A2-Series Range

A2-series modules present specific testing challenges due to their integrated backplane bus interface logic and dual-redundancy switching circuits. DriveKNMS applies a structured inspection and functional verification protocol to all A2-series units prior to dispatch:

• Visual inspection: PCB examination for capacitor degradation, relay contact wear, and connector pin integrity on the 64-pin backplane interface
• Power-on self-test (POST): Module is seated in a live CS 3000 test chassis running a compatible firmware revision; LED diagnostic status is logged against factory-defined pass criteria
• Bus communication verification: For node controllers (A2NN30D series) and Ethernet modules (A2EN501 series), Vnet/IP packet integrity and response latency are measured against Yokogawa specification tolerances
• Analog signal calibration check: For I/O modules, input/output accuracy is verified across the full 4–20mA range using calibrated signal sources traceable to national standards
• Burn-in cycle: Selected modules undergo a 48-hour powered burn-in to screen for early-life failure modes prior to shipment
