Yokogawa CENTUM CS 3000 ESB Bus Modules - ANB10D-415/CU2T

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM CS 3000 Series Technical Notes

The Yokogawa CENTUM CS 3000 is a distributed control system (DCS) platform deployed across heavy industrial sectors including petroleum refining, petrochemical complexes, LNG terminals, nuclear power auxiliary systems, and large-scale chemical manufacturing. First introduced in the late 1990s as the successor to the CENTUM-XL and CENTUM CS platforms, the CS 3000 established itself as one of the most widely installed DCS architectures in Asia-Pacific and the Middle East. Its modular I/O architecture, redundant field control station (FCS) design, and ESB (Extended Serial Backplane) bus topology made it the reference platform for process automation projects requiring high availability and deterministic scan cycles. Installed base estimates place the CS 3000 in thousands of process units globally, with many sites operating well beyond the original 20-year design lifecycle. DriveKNMS maintains a dedicated inventory of CS 3000 modules to support these long-term operational commitments.

The Evolution of CENTUM CS 3000 Architecture

The CENTUM CS 3000 architecture is organized around the Field Control Station (FCS), which houses the processor card, I/O modules, and communication adapters on a common ESB backplane. The ESB bus operates as a high-speed serial backplane interconnect, replacing the parallel bus of earlier CENTUM generations and enabling higher I/O density per station. Early CS 3000 revisions (R1.x–R2.x) used the AFV10D/AFV20D processor cards with limited redundancy options. The R3.x generation introduced dual-redundant FCS configurations (KFCS, RFCS) and expanded the analog I/O module range. R4.x and later revisions added FOUNDATION Fieldbus H1 and PROFIBUS-DP integration via dedicated communication modules, extending the platform's compatibility with smart field devices. The CS 3000 was formally succeeded by the CENTUM VP platform beginning around 2008, though Yokogawa continued to supply CS 3000 spare parts and engineering support for many years thereafter. As of the mid-2020s, the CS 3000 is in the mature-to-end-of-life phase of its product lifecycle. Yokogawa's official lifecycle policy classifies many CS 3000 modules as discontinued or limited supply, making third-party spare parts distributors a critical resource for plant maintenance teams managing multi-year turnaround cycles.

CENTUM CS 3000 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module range of the CENTUM CS 3000 platform, organized by functional category. All models listed are genuine Yokogawa hardware. Availability varies by model; contact DriveKNMS for current sourcing status.

ESB Bus Node & Communication Modules

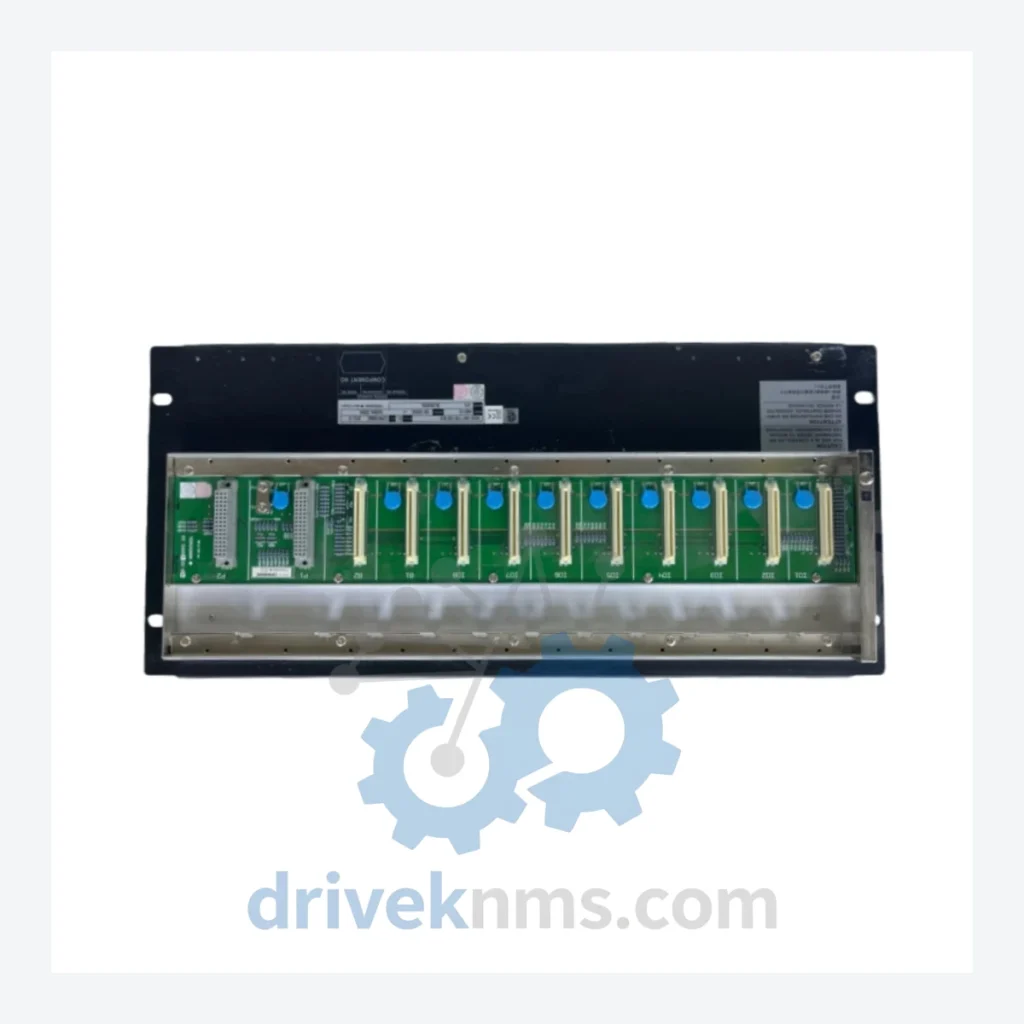

• ANB10D-415/CU2T: ESB bus node unit, 4-slot, 15V power, dual-port communication interface — the subject SKU of this listing.
• ANB10D-415/CU1T: ESB bus node unit, 4-slot, 15V power, single-port communication interface.
• ANB10D-815/CU2T: ESB bus node unit, 8-slot, 15V power, dual-port communication interface.
• ANB10D-815/CU1T: ESB bus node unit, 8-slot, 15V power, single-port communication interface.
• ACB11: ESB bus coupler module for inter-nest communication on the CS 3000 backplane.
• ACB21: Extended ESB bus coupler, supports longer cable runs between nests.

Analog Input (AI) Modules

• AAI141-S00: 16-channel analog input module, 4–20 mA, single-ended, non-isolated.
• AAI141-S50: 16-channel analog input module, 4–20 mA, with HART communication support.
• AAI143-S00: 8-channel analog input module, high-accuracy, isolated, for precision measurement loops.
• AIP829: Analog input module, 8-channel, 1–5V / 4–20 mA selectable, isolated inputs.

Analog Output (AO) Modules

• AAO141-S00: 8-channel analog output module, 4–20 mA, non-isolated.
• AAO145-S00: 8-channel analog output module, 4–20 mA, isolated, with HART pass-through.

Digital Input (DI) Modules

• ADV151-P00: 32-channel digital input module, 24 VDC, non-isolated, standard density.
• ADV161-P00: 64-channel digital input module, 24 VDC, high-density I/O for large discrete signal counts.

Digital Output (DO) Modules

• ADV551-P00: 32-channel digital output module, 24 VDC transistor output, non-isolated.
• ADV561-P00: 16-channel digital output module, relay contact output, isolated, for high-voltage field devices.

Power Supply Modules

• APW122: FCS nest power supply unit, 24 VDC output, standard capacity for CS 3000 I/O nests.
• APW132: Redundant power supply module for dual-power FCS configurations.

Processor / CPU Modules

• AFV10D: Field control unit processor card, early CS 3000 generation, non-redundant configuration.
• AFV20D: Enhanced FCS processor card, supports redundant CPU pairing and expanded memory.
