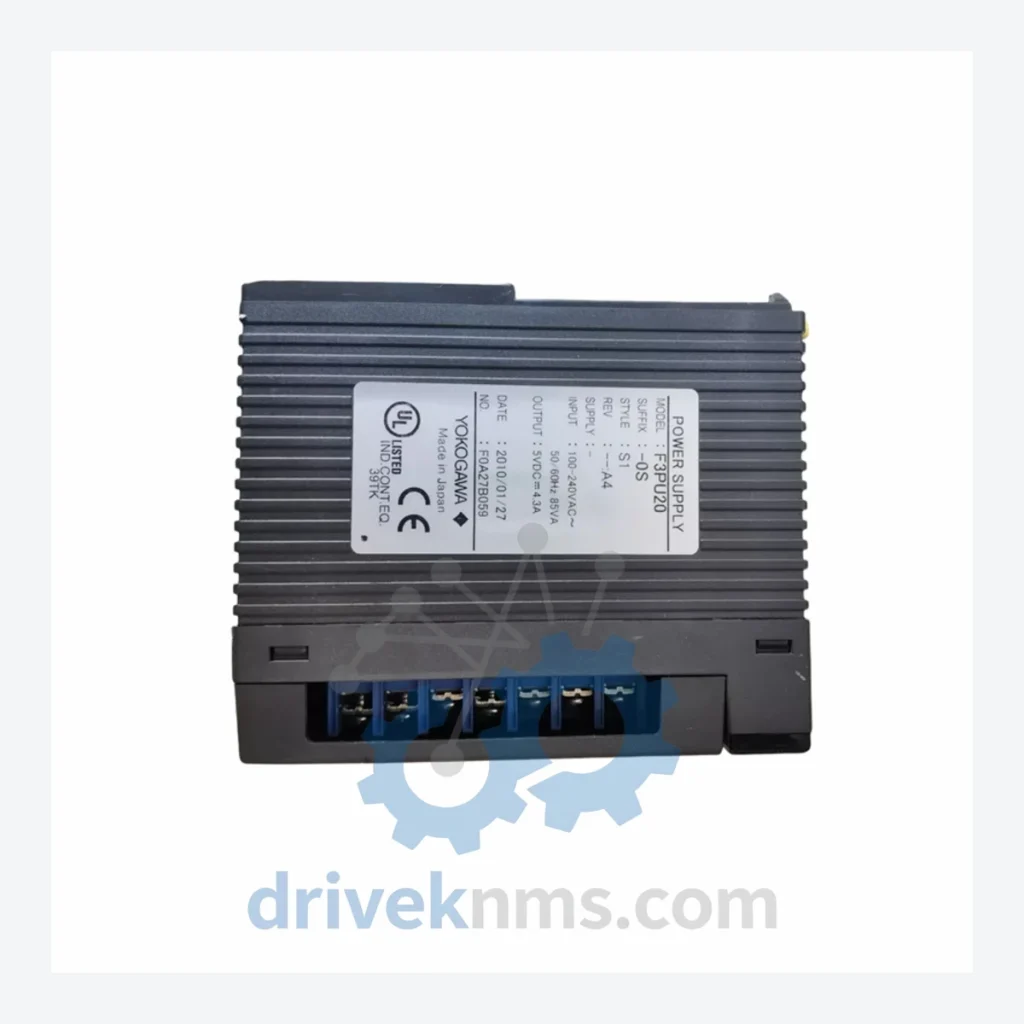

Yokogawa F3PU20-0S Power Supply Module – Obsolete FA-M3 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa F3PU20-0S Power Supply Module – Obsolete FA-M3 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as input voltage range, output ratings, and power capacity are not published here to prevent specification errors. Please contact us directly for verified datasheet confirmation prior to ordering.

Solving the Discontinued Hardware Crisis

The Yokogawa FA-M3 platform entered service in the 1990s and accumulated a substantial installed base across Asia, the Middle East, and Europe. Its modular architecture, deterministic scan cycle, and deep integration with Yokogawa SCADA and DCS environments made it a preferred choice for long-lifecycle process industries. Yokogawa has progressively discontinued FA-M3 hardware as the platform reaches end-of-life, but the control logic, field wiring, and process interlocks built around these systems remain fully operational and economically justified.

Sourcing this module through the secondary market from a qualified supplier is the only path that preserves the existing system investment without triggering a capital project. DriveKNMS specializes in exactly this supply chain gap: locating, verifying, and delivering discontinued Yokogawa hardware to facilities that cannot afford to wait for a procurement cycle that leads nowhere.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk if it is not properly evaluated before installation. DriveKNMS applies a 5-step inspection protocol to every F3PU20-0S unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Power supply modules are the component category most vulnerable to capacitor aging. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with manufacturer-grade replacements or removed from saleable inventory.
• Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented to ensure compatibility with the target FA-M3 base unit configuration.
• Step 3 – Pin and Connector Inspection: All backplane connector pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned to IPC standards where required.
• Step 4 – Functional Power-On Test: Each unit undergoes a controlled power-on sequence with output voltage and ripple measurements recorded against known-good reference values.
• Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with desiccant and rigid outer packaging to prevent transit damage and electrostatic discharge.

Extending Automation Asset Life: A Maintenance Strategy for FA-M3 Operators

Plant managers operating legacy Yokogawa FA-M3 systems face a consistent pressure: the control system is reliable, the process knowledge embedded in it is irreplaceable, but the hardware supply chain is closing. The following approach has been used by facilities across the process industries to sustain FA-M3 installations well beyond the manufacturer's end-of-support date:

1. Criticality-based spare classification. Not every FA-M3 module carries equal risk. Power supply modules, CPU modules, and communication modules are single points of failure with no redundancy in standard rack configurations. These should be prioritized for on-site spare holding. I/O modules, by contrast, can often be managed with a smaller shared pool across multiple racks.

2. Minimum two-unit spare holding for power supplies. A single spare provides one recovery event. A second unit provides continuity while the first is being evaluated after a failure. For facilities with multiple FA-M3 racks, a two-unit holding per power supply model is a defensible minimum.

3. Scheduled preventive inspection, not run-to-failure. Power supply modules in continuous-duty industrial environments accumulate thermal stress. A scheduled inspection cycle – typically aligned with annual planned shutdowns – allows early identification of capacitor aging or connector degradation before a failure occurs in production.

5. Document firmware and configuration baselines. Before any module replacement, ensure that CPU firmware versions, I/O configuration files, and ladder logic backups are current and stored off the controller. This eliminates the risk of a configuration loss compounding a hardware failure event.

How do I confirm the unit is new or quality-refurbished?
Each unit is accompanied by an inspection report documenting the 5-step QA process described above. Condition grade (new surplus, tested refurbished) is declared at the time of quotation. We do not sell units that have not passed functional testing.

Is this module compatible with all FA-M3 rack configurations?
Compatibility depends on the specific base unit and rack model in your installation. Please provide your FA-M3 system configuration details when inquiring so we can confirm fit before dispatch review.
