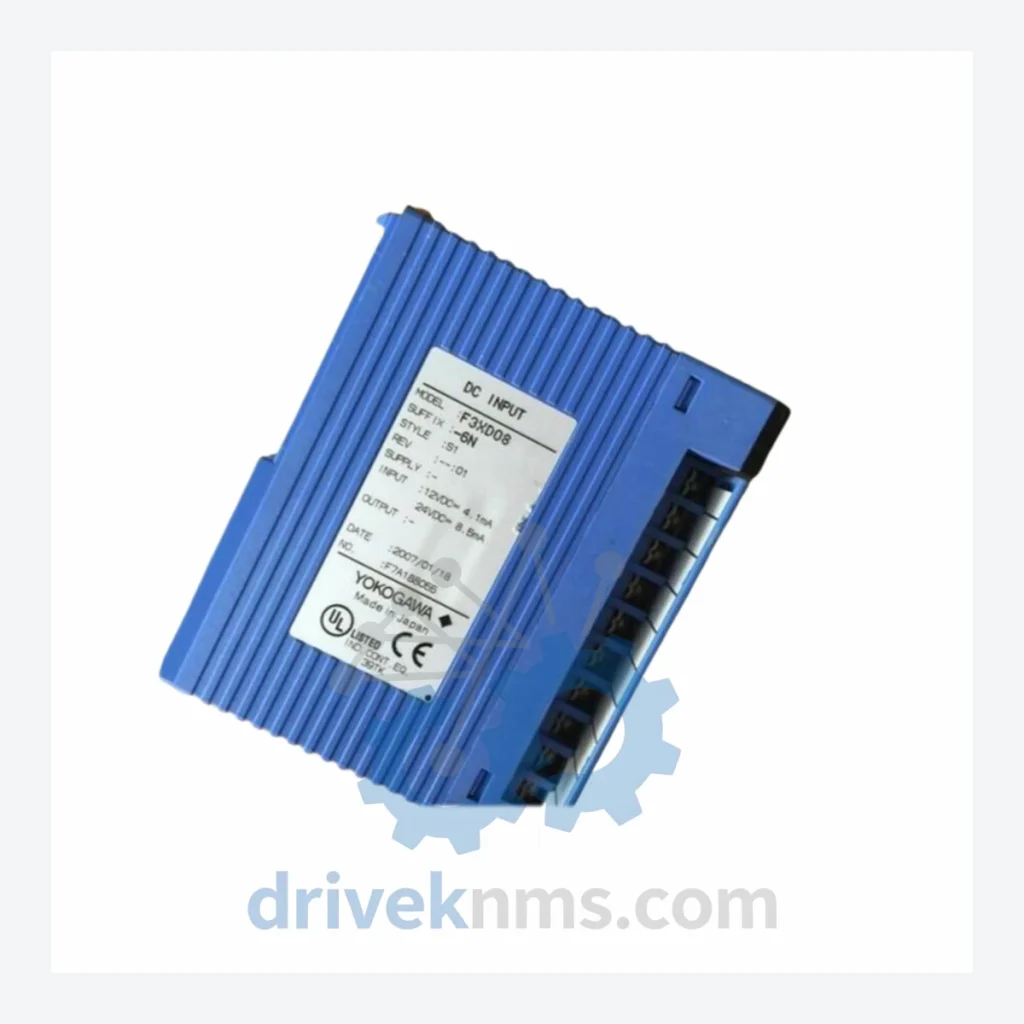

Yokogawa F3XD08-6N Digital Input Module – Obsolete STARDOM/FA-M3 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa F3XD08-6N Digital Input Module – Obsolete FA-M3 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not confirmed from official documentation are intentionally omitted. Contact us for datasheet verification prior to installation.

Solving the Discontinued Hardware Crisis

The Yokogawa FA-M3 platform was deployed extensively across Asia-Pacific and global process industries from the 1990s through the 2010s. Many of these installations remain in active production service, supported by maintenance teams who understand that the cost of keeping a proven system running is a fraction of the cost of replacing it. The F3XD08-6N occupies a specific slot in the FA-M3 I/O architecture — its 8-point digital input configuration, rack addressing, and backplane communication protocol are not interchangeable with newer Yokogawa module families without CPU firmware changes and, in many cases, full application software re-validation.

Facilities that have extended FA-M3 system life by 5 to 10 years through strategic spare parts procurement consistently report the same approach: identify the three to five I/O module types with the highest failure probability based on thermal load and cycle count, secure a minimum of two units per type, and store them in controlled conditions. The F3XD08-6N, as a digital input module handling field-level discrete signals, is subject to input circuit degradation over time and belongs on that critical spare list for any FA-M3 installation beyond 15 years of service age.

Condition & Reliability Assurance

Every F3XD08-6N unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Connector pins examined for corrosion, bending, or contamination. PCB surface inspected for burn marks, flux residue, and physical damage.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors on the input conditioning circuit are checked for bulging, leakage, and ESR deviation — the primary age-related failure mode in modules of this generation.
• Step 3 – Firmware and Label Verification: Hardware revision markings and any accessible firmware identifiers are recorded and cross-referenced to confirm the unit matches the F3XD08-6N specification, not a visually similar variant.
• Step 4 – Functional Power-On Test: Where test infrastructure permits, the module is powered and input channel response is verified.
• Step 5 – Packaging for Long-Term Storage: Units are sealed in anti-static packaging with desiccant and stored in a temperature-controlled environment until shipment.

Key Features for System Maintenance

• Drop-in replacement: The F3XD08-6N installs directly into the existing FA-M3 rack slot with no hardware modification required.
• No reprogramming required: The FA-M3 CPU recognizes the module by slot address and module type code. Existing ladder logic and function block programs require no modification.
• No engineering rework: Field wiring terminations remain unchanged. There is no need to involve a controls engineer for a like-for-like module swap.
• Avoids system re-validation: Because the replacement is identical to the original, regulatory re-validation requirements are minimized compared to a platform change.
• Protects capital investment: Extending the service life of an FA-M3 system by even three to five years defers a capital expenditure that typically runs into six or seven figures for a mid-size process plant.

Q: Can you source other FA-M3 modules we need?
A: Yes. DriveKNMS specializes in the full Yokogawa FA-M3 and STARDOM module range. Contact us with your complete BOM and we will advise on availability.
