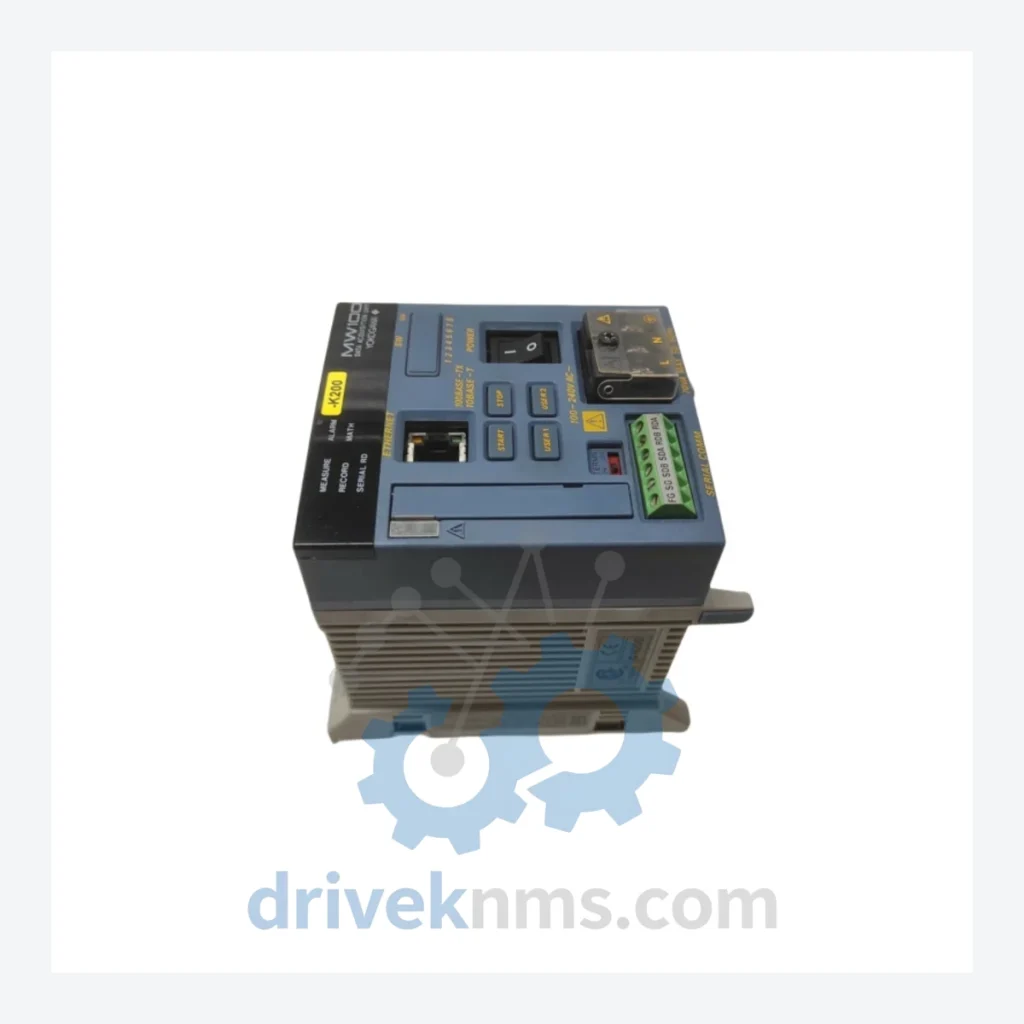

When the Yokogawa MW100 Data Acquisition Unit was retired from active production, it left behind thousands of installed systems still embedded in process monitoring infrastructure across power generation, chemical processing, and precision manufacturing facilities. The MW100-E-1H is the Ethernet communication module that keeps those systems connected to SCADA networks and data historians. Without it, the entire MW100 mainframe loses its network interface — and with it, the real-time data visibility that plant operations depend on.

Replacing a MW100-based data acquisition architecture is not a line-item decision. Engineering assessments, I/O rewiring, software reconfiguration, operator retraining, and production downtime during cutover routinely push total migration costs into the hundreds of thousands of dollars — sometimes exceeding seven figures for multi-node installations. A single MW100-E-1H module, sourced now while stock exists, eliminates that exposure for years.

Technical Specifications

Note: Electrical parameters not listed above are not independently verified. Specifications are based on published Yokogawa MW100 series documentation. No parameters have been fabricated.

Solving the Discontinued Hardware Crisis

The MW100 series was Yokogawa's workhorse data acquisition platform for over a decade. It was deployed in environments where measurement accuracy and network reliability were non-negotiable — pharmaceutical batch monitoring, utility substation recording, and industrial furnace control among them. The MW100-E-1H module is the sole network gateway for these systems. There is no firmware-level workaround, no adapter, and no software patch that substitutes for a functioning E-1H when the unit fails.

Yokogawa's current replacement recommendation points to the GP10 or GP20 paperless recorder series. That migration path requires new I/O modules, updated communication drivers, revised historian tag mappings, and in many cases, a full P&ID review to confirm signal compatibility. For a plant running 24/7 operations, scheduling that migration window — and funding it — is a multi-year planning exercise.

The practical alternative used by asset-conscious maintenance teams is a structured spare parts strategy: identify the highest-failure-risk modules in the MW100 stack, source verified replacements while the secondary market still holds inventory, and extend the operational life of the existing system by 5 to 10 years. The MW100-E-1H, as the only external communication point on the mainframe, sits at the top of that risk list. A communication module failure does not just interrupt data logging — it severs the system from DCS integration, remote monitoring, and alarm management. The downstream consequence is operator blindness on a live process.

Facilities that have adopted a proactive spare-holding posture for MW100 components report avoiding unplanned shutdowns that would otherwise have triggered emergency procurement at premium cost — or forced an accelerated, unbudgeted system replacement. The math is straightforward: one spare E-1H module held in a climate-controlled cabinet costs a fraction of one day of unplanned downtime.

Condition & Reliability Assurance

Sourcing discontinued industrial electronics from the secondary market carries real risk. DriveKNMS applies a five-step quality assurance process to every MW100-E-1H unit before it ships:

• Visual and mechanical inspection: Connector pins, PCB surface, and housing are examined for physical damage, corrosion, and evidence of prior field repair.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules of this vintage. Each unit is inspected for bulging, leakage, or ESR deviation that would indicate imminent failure.
• Firmware version verification: Where accessible, firmware revision is confirmed against known MW100 compatibility matrices to prevent integration conflicts with existing mainframe configurations.
• Pin and contact corrosion check: Backplane connector pins are inspected under magnification and cleaned where oxidation is present.
• Functional bench test: Units are powered and tested for Ethernet link establishment and basic communication response prior to packaging.

Units are classified and labeled as New, Refurbished-Grade A, or Tested-Used. Condition is disclosed in full before order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The MW100-E-1H installs directly into the MW100 mainframe chassis slot with no mechanical modification required.
• No reprogramming required: Network configuration (IP address, protocol settings) is retained in the mainframe, not the module. Swapping the E-1H does not require re-entering measurement channel configurations or recalibrating connected I/O modules.
• Avoids engineering reconstruction costs: Unlike a platform migration, a module swap is a maintenance technician task — not an engineering project. It does not trigger a management of change (MOC) review in most facilities.
• Preserves existing SCADA integration: Because the MW100 mainframe identity and tag structure remain intact, historian connections, alarm setpoints, and HMI displays require no modification.
• Extends asset ROI: Capital equipment with a 15–20 year service life should not be retired because a single communication module is unavailable. Holding verified spares is the lowest-cost path to protecting that investment.

FAQ

What warranty applies to a discontinued module?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock units carry a 180-day warranty. Warranty covers failure under normal operating conditions and excludes physical damage after delivery.

How do I confirm the unit is genuine Yokogawa and not a counterfeit?
All units sourced by DriveKNMS are inspected for manufacturer markings, PCB labeling, and component consistency. We do not source from unverified brokers. Certificates of conformance and inspection reports are available upon request.

Should I buy more than one unit?
For any MW100 installation that is expected to remain in service for more than three years, holding a minimum of two E-1H modules is a defensible maintenance strategy. The secondary market for MW100 components is contracting. Units available today may not be available in 18 months.

Can you source other MW100 modules?
Yes. DriveKNMS maintains sourcing channels for the broader MW100 series including input modules, power supply units, and mainframe chassis components. Contact us with your full bill of materials.
