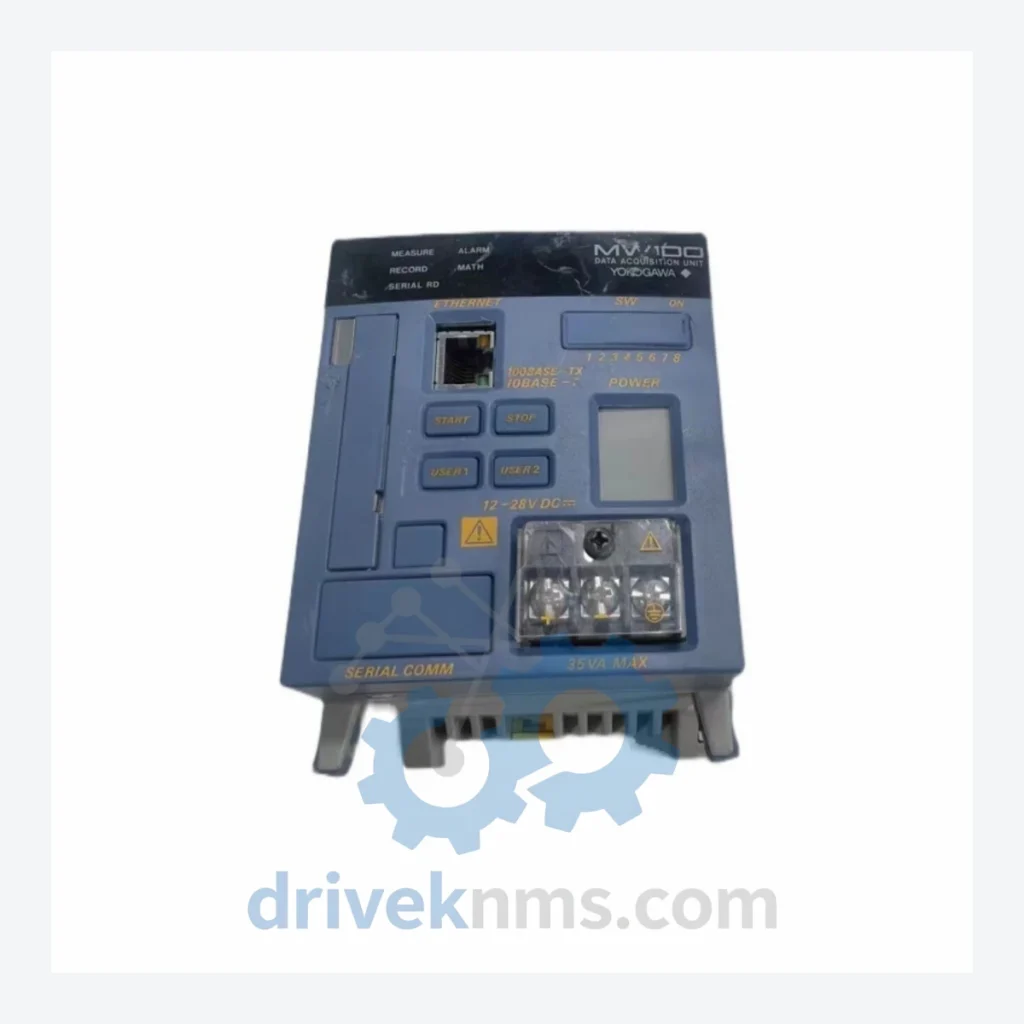

Yokogawa MW100-E-3W-M1/S8 Input Module – Obsolete MW100 Series Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa MW100-E-3W-M1/S8 Input Module – Obsolete MW100 Series Spare Part

When a critical data acquisition module fails on a legacy Yokogawa MW100 system, the consequences extend far beyond a single instrument. The MW100 platform is deeply embedded in continuous process monitoring environments — power generation, chemical processing, and precision manufacturing — where replacing the entire DAQ infrastructure means re-engineering signal wiring, reconfiguring data logging software, revalidating measurement chains, and retraining operations staff. Conservative estimates place the total cost of a forced platform migration at USD $200,000–$800,000 per installation, excluding production downtime. A single MW100-E-3W-M1/S8 module, sourced in time, eliminates that exposure entirely.

DriveKNMS maintains verified stock of the Yokogawa MW100-E-3W-M1/S8. Each unit is inspected before shipment. Inventory is finite and not replenishable from the manufacturer.

Technical Specifications

Note: Electrical parameters beyond those listed above are not confirmed from verified sources and are intentionally omitted. Accuracy of specifications is a safety matter for obsolete hardware — no parameters are fabricated.

Solving the Discontinued Hardware Crisis

The Yokogawa MW100 system was designed for long-cycle industrial deployment. Many installations commissioned in the 2000s and early 2010s remain in active service, embedded in validated measurement loops that cannot be casually replaced. The MW100-E-3W-M1/S8 handles RTD and resistance inputs — a function that sits at the core of temperature monitoring in reactors, furnaces, and environmental chambers.

When Yokogawa discontinued the MW100 module line, it did not eliminate the installed base. It transferred the maintenance burden entirely to the end user. Facilities that did not build a spare parts reserve at end-of-life announcement now face a binary choice: source the module from the secondary market, or fund a full system replacement.

The secondary market option is not without risk. Counterfeit and misrepresented modules circulate in the obsolete parts channel. Firmware mismatches between module revisions can cause silent measurement errors — a failure mode that is particularly dangerous in temperature-critical processes. This is why sourcing from a supplier with a documented inspection process matters.

How to extend your MW100 system life by 5–10 years at low cost:

• Build a minimum two-unit spare buffer per module type. The MW100-E-3W-M1/S8 is not available from Yokogawa. Secondary market availability will continue to decline. Purchasing spares now, while verified stock exists, is the lowest-cost insurance available.
• Document your current firmware revision. Before any module swap, record the firmware version of the installed unit. Replacement modules should match or be confirmed compatible by your Yokogawa service contact.
• Audit electrolytic capacitor condition annually. In modules over 10 years old, capacitor degradation is the primary failure mechanism. Proactive inspection prevents unplanned downtime.
• Maintain your MW100 configuration backup. System configuration files stored off-unit ensure that a module replacement does not require full reconfiguration from scratch.
• Engage a qualified service partner for periodic calibration verification. RTD input accuracy drifts over time. Annual verification against a traceable reference standard protects measurement integrity without requiring hardware replacement.

These five measures, applied consistently, extend the productive service life of an MW100 installation by a decade or more — at a fraction of the cost of platform migration.

Condition & Reliability Assurance

Every MW100-E-3W-M1/S8 unit shipped by DriveKNMS passes a structured 5-step inspection protocol developed specifically for obsolete industrial modules:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, and label legibility are verified. Units with physical damage are rejected.
2. Electrolytic capacitor assessment: Capacitor bodies are inspected for bulging, leakage, and discoloration — the primary aging indicators in modules of this vintage.
3. Pin and contact corrosion check: All I/O connector pins are examined under magnification for oxidation and corrosion. Affected contacts are cleaned or the unit is rejected.
4. Firmware version documentation: Where accessible, firmware revision is recorded and disclosed to the buyer prior to shipment.
5. Functional verification: Units are powered and checked for basic operational response before packaging.

Units that do not pass all five stages are not sold as functional spares. Condition is disclosed accurately — new old stock, tested surplus, or refurbished — with no misrepresentation.

Key Features for System Maintenance

• Drop-in replacement: The MW100-E-3W-M1/S8 installs directly into the MW100 mainframe slot. No hardware modification is required.
• No reprogramming required: Channel configuration is stored in the MW100 main unit, not the module. A verified replacement module restores full function without re-engineering the measurement setup.
• Avoids engineering reconstruction costs: Replacing a single module eliminates the need for signal rewiring, software reconfiguration, and measurement revalidation that a platform migration would require.
• Preserves validated measurement chains: In regulated industries, maintaining the existing hardware platform avoids triggering revalidation obligations under quality management systems.

FAQ

What warranty applies to an obsolete module like the MW100-E-3W-M1/S8?
DriveKNMS provides a 90-day functional warranty on tested surplus and refurbished units. New old stock units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of quotation.

How do I know the unit is genuine Yokogawa and not a counterfeit?
All units are inspected for manufacturer markings, label consistency, and construction quality consistent with genuine Yokogawa hardware. We do not source from unverified brokers. Provenance documentation is provided where available.

Should I buy more than one unit?
For any MW100 installation with more than two years of planned remaining service life, purchasing a minimum of two spare modules is the standard recommendation. The secondary market supply of MW100 modules is finite and shrinking. The cost of a second spare unit is negligible compared to the cost of an unplanned production stoppage.

Can you source other MW100 modules or Yokogawa obsolete parts?
Yes. DriveKNMS specializes in hard-to-find and discontinued Yokogawa components across multiple product lines. Contact us with your full part number for availability and lead time.
