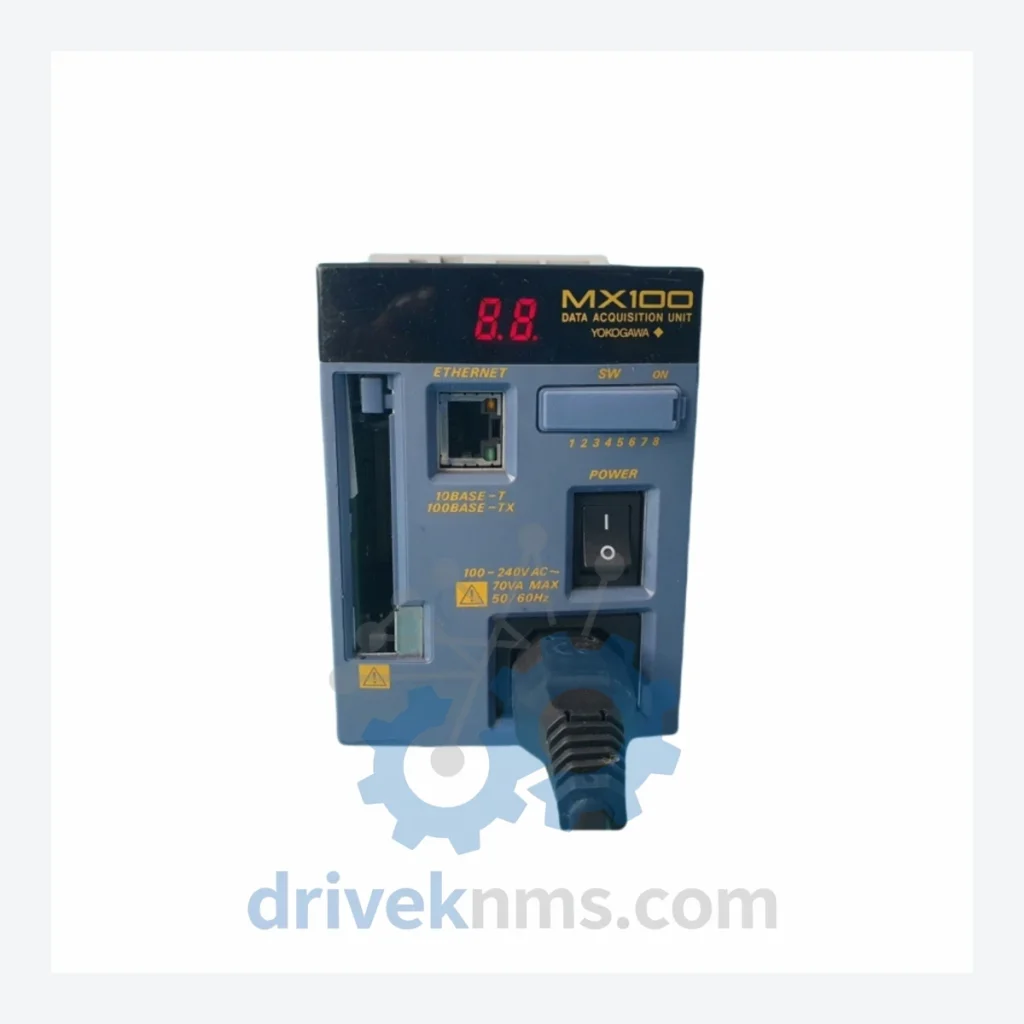

Yokogawa MX100-E-1F Data Acquisition Unit – Obsolete MX100 Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa MX100-E-1F Data Acquisition Unit – Obsolete MX100 Spare Part

When a Yokogawa MX100-E-1F fails in an active measurement or process monitoring environment, the consequences extend far beyond a single module replacement. The MX100 series has been discontinued, and sourcing a verified replacement through standard distribution channels is no longer possible. For facilities still operating MX100-based data acquisition infrastructure, a single failed unit can force a full system migration — a project that routinely costs hundreds of thousands of dollars in engineering hours, new hardware procurement, software reconfiguration, and process revalidation. DriveKNMS maintains verified stock of the MX100-E-1F specifically to prevent that outcome.

Technical Specifications

Note: Electrical parameters are not published here to prevent inaccurate specifications. Confirmed technical datasheets are available upon request.

Solving the Discontinued Hardware Crisis

The Yokogawa MX100 platform was widely deployed across pharmaceutical QA labs, energy monitoring stations, and precision manufacturing environments throughout the 2000s and 2010s. Its modular architecture and multi-channel input flexibility made it a preferred choice for facilities requiring reliable, long-term data acquisition without frequent recalibration cycles.

With the MX100 series now discontinued, facilities face a hard operational reality: the installed base continues to run, but the supply chain supporting it has collapsed. When a module like the MX100-E-1F fails, procurement teams encounter lead times measured in months — if parts can be located at all. Meanwhile, the cost of migrating to a current-generation DAQ platform involves not just hardware, but full software integration, sensor recalibration, staff retraining, and regulatory re-approval in regulated industries.

For plant managers and maintenance engineers operating under capital expenditure constraints, the calculus is straightforward: a verified spare part at a fraction of the migration cost preserves operational continuity and defers a multi-year infrastructure project. Facilities that maintain a strategic buffer stock of critical MX100 modules routinely extend system service life by 5 to 10 years beyond the manufacturer's EOL date — without compromising measurement integrity.

The key is sourcing from suppliers who can verify part authenticity, confirm firmware compatibility, and provide documented condition assessments. Generic surplus channels cannot reliably deliver this. DriveKNMS specializes in exactly this category of critical, hard-to-find industrial components.

Condition & Reliability Assurance

Every MX100-E-1F unit processed by DriveKNMS undergoes a structured 5-step quality assessment before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, connector integrity, and housing condition. Units with compromised enclosures are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are a primary failure mode in discontinued electronics. Each unit is evaluated for capacitor condition, with degraded components identified and flagged.
• Step 3 – Firmware Version Verification: The installed firmware version is confirmed and documented. Compatibility with known MX100 system configurations is cross-referenced prior to dispatch.
• Step 4 – Pin and Connector Corrosion Check: All I/O pins, terminal blocks, and interface connectors are inspected under magnification for oxidation, corrosion, or mechanical deformation that could cause intermittent faults in service.
• Step 5 – Functional Verification: Where test infrastructure permits, units are powered and subjected to basic operational checks. Condition grade (New, Refurbished-Grade A, or Tested-Used) is assigned and disclosed prior to sale.

Condition grade and any identified findings are communicated in writing before order confirmation. There are no undisclosed defects.

Key Features for System Maintenance

• Drop-in Replacement: The MX100-E-1F is a direct hardware replacement for existing MX100 system slots. No chassis modification is required.
• No Reprogramming Required: Replacing a like-for-like module does not require system-level reprogramming or reconfiguration of the host DAQ platform, provided firmware versions are matched — which DriveKNMS verifies prior to shipment.
• Avoids Engineering Reconstruction Costs: A verified spare eliminates the need to engage system integrators for migration projects. The cost differential between a spare module and a full system replacement is typically measured in orders of magnitude.
• Supports Regulatory Continuity: In validated environments (pharmaceutical GMP, ISO-certified manufacturing), replacing a like-for-like module avoids triggering full revalidation requirements that a platform change would necessitate.
• Long-Term Stockpiling Strategy: For facilities with multiple MX100 installations, DriveKNMS can discuss bulk procurement arrangements to establish an internal spare parts buffer — a standard risk mitigation practice for systems with no active manufacturer support.

FAQ

Q: What warranty applies to a discontinued part like the MX100-E-1F?
A: DriveKNMS provides a 90-day warranty covering functional defects identified after installation, applicable to units sold as Refurbished-Grade A or Tested-Used. New old stock (NOS) units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of sale.

Q: How do I know the unit is genuine Yokogawa and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects or verified surplus channels. Physical markings, serial number formats, and internal construction are cross-referenced against known-genuine units. We do not source from unverified grey-market aggregators.

Q: Should we buy more than one unit as a long-term reserve?
A: For any facility running more than two MX100 chassis, maintaining a minimum of two MX100-E-1F spares is a defensible risk management position. The MX100 series will not return to production. Current available stock is finite. Procurement decisions deferred to the point of failure carry significantly higher cost and downtime risk than proactive reserve purchasing.

Q: Can you source other MX100 series modules?
A: Yes. DriveKNMS maintains sourcing capability across the MX100 module range. Contact us with your specific part numbers for availability and lead time confirmation.
