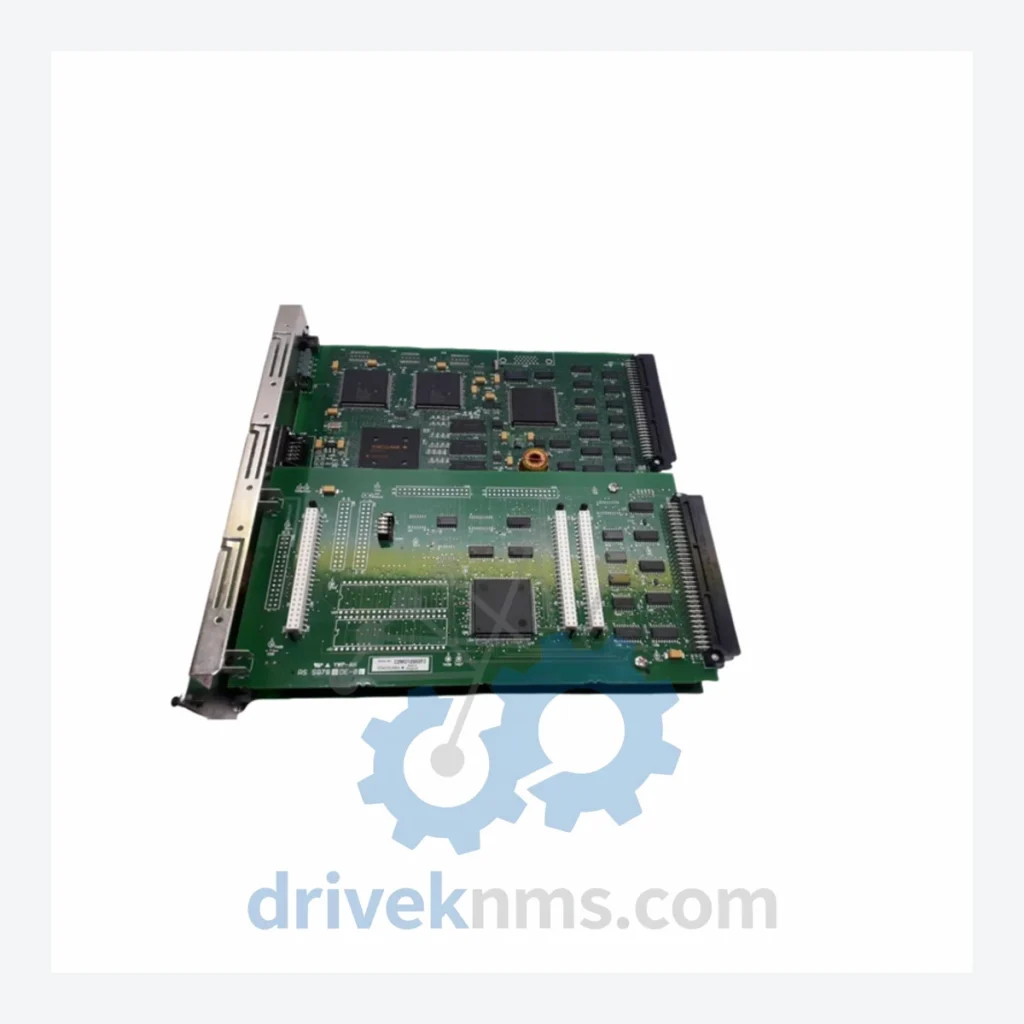

Yokogawa S9943AL Circuit Board – Obsolete CENTUM Series Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa S9943AL Circuit Board – Obsolete CENTUM Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Condition & Reliability Assurance

All S9943AL units processed by DriveKNMS pass a structured 5-step qualification protocol before dispatch:

• Step 1 – Visual & Mechanical Inspection: Full PCB surface examination for physical damage, solder joint integrity, and connector pin condition. Corroded or oxidized pins are documented and assessed for impact on signal integrity.
• Step 2 – Electrolytic Capacitor Assessment: Legacy boards of this generation are susceptible to electrolytic capacitor degradation. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation — the primary failure mode in aged industrial PCBs.
• Step 3 – Firmware Version Verification: Where firmware is embedded, the version is recorded and cross-referenced against known CENTUM system compatibility matrices to prevent version mismatch faults.
• Step 4 – Functional Bench Test: Units are powered and tested under controlled conditions against baseline operational parameters where test fixtures permit.
• Step 5 – Packaging & ESD Protection: Boards are packaged in anti-static shielding with desiccant, suitable for long-term storage or immediate deployment.

Key Features for System Maintenance

• Drop-in Replacement: The S9943AL is a direct hardware replacement within compatible CENTUM system slots. No rack modification or wiring change is required.
• No Reprogramming Required: The board retains its original hardware configuration. Facilities do not incur engineering hours for software re-parameterization upon installation.
• Avoids Engineering Reconstruction Costs: Substituting this board preserves the existing control logic, HMI configuration, and historian data structures — none of which survive a platform migration intact without significant re-engineering effort.
• Extends Asset Life 5–10 Years: A single verified spare board, installed at the point of failure, can defer a multi-million dollar system replacement by a full capital planning cycle. Facilities that maintain a 2–3 unit strategic reserve of critical boards like the S9943AL routinely achieve 8–12 year extensions on legacy DCS asset life without process risk.

Can you source additional quantity if I need more than one?
Contact our team with your quantity requirement. We maintain sourcing relationships across multiple regions and can advise on availability timelines.
