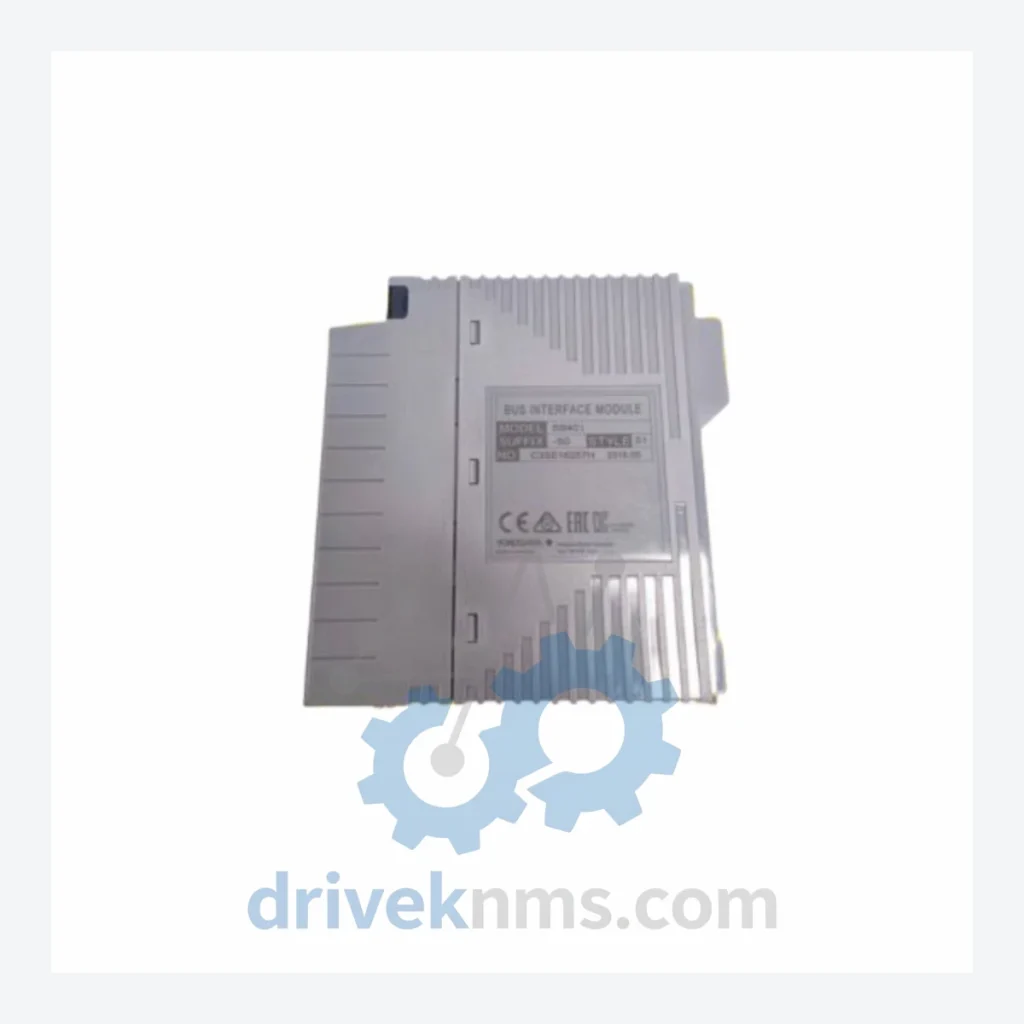

Yokogawa STARDOM FCN/FCJ SB401-50 S1 Bus Interface Module

Technical Dossier

Product Details And Specifications

Yokogawa STARDOM FCN/FCJ Series Technical Notes

The Yokogawa STARDOM FCN/FCJ autonomous controller platform is a field-proven distributed control architecture deployed across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, and large-scale chemical processing facilities. The SB401-50 S1 Bus Interface Module is a core backplane communication component within this architecture, enabling high-integrity data exchange between the FCN/FCJ controller chassis and field I/O subsystems. STARDOM installations are documented across hundreds of sites in Asia-Pacific, the Middle East, and Europe, with many systems operating continuously for 15+ years — making lifecycle parts availability a critical operational requirement.

The Evolution of STARDOM FCN/FCJ Architecture

Yokogawa introduced the STARDOM platform in the early 2000s as a compact, network-based autonomous controller designed to bridge the gap between traditional DCS and standalone PLC architectures. The FCN (Field Control Node) and FCJ (Field Control Junction) form the two primary hardware tiers: the FCN handles full-scale process control with redundant CPU and I/O expansion, while the FCJ serves as a compact single-chassis variant for smaller loop counts.

Early FCN hardware (circa 2002–2008) used the F3SP series CPU modules with proprietary backplane bus protocols. The SB401 series Bus Interface Modules were introduced to standardize inter-module communication across the chassis backplane, replacing earlier point-to-point wiring schemes. The SB401-50 S1 specifically denotes a 50-node bus interface variant with S1 hardware revision, compatible with FCN chassis generations using the standard 19-inch rack form factor.

From 2010 onward, Yokogawa expanded the STARDOM ecosystem with enhanced Ethernet-based node communication (FAST/TOOLS integration) and introduced the FCN-RTU variant for remote telemetry applications. Compatibility between early SB401 variants and later FCN-RTU chassis requires firmware verification. As of 2024, the SB401-50 S1 is classified as a mature/end-of-production component, with Yokogawa directing new projects toward the FCN500 platform — making third-party lifecycle support essential for existing installations.

STARDOM FCN/FCJ Full Catalog & Functionalities (SKU List)

CPU & Controller Modules

• F3SP28-3N: FCN CPU module, 28K step ladder, RS232C/RS485 ports
• F3SP38-6N: FCN CPU module, 60K step, Ethernet + serial dual-port
• F3SP53-4H: High-speed CPU, 120K step, built-in motion control support
• F3SP58-6S: Safety-rated CPU module, SIL2 certified, redundancy-capable
• F3SP67-6S: Advanced CPU, 250K step, dual Ethernet, IEC 61131-3 compliant

Bus Interface & Backplane Modules

• SB401-50 S1: 50-node bus interface module, FCN/FCJ backplane communication, S1 revision
• SB401-10: 10-node bus interface, compact FCJ chassis variant
• SB401-20: 20-node bus interface, mid-range FCN rack configuration
• SB401-50 S2: 50-node bus interface, S2 hardware revision with enhanced EMI shielding

Digital Input (DI) Modules

• F3XD32-3F: 32-channel 24VDC digital input, sink/source configurable
• F3XD64-3F: 64-channel DI, high-density rack mount, 24VDC
• F3XD16-1N: 16-channel DI, 100–120VAC input, isolated

Digital Output (DO) Modules

• F3YD32-1F: 32-channel 24VDC digital output, transistor sink type
• F3YD16-1N: 16-channel relay output, 2A per point, 250VAC rated

Analog Input (AI) Modules

• F3AD04-0N: 4-channel analog input, 4–20mA / 0–10V selectable, 16-bit resolution
• F3AD08-0N: 8-channel AI, 4–20mA, 16-bit, with HART pass-through support

Analog Output (AO) Modules

• F3DA04-0N: 4-channel analog output, 4–20mA, 12-bit resolution

Communication & Network Modules

• F3LE01-5T: Ethernet communication module, 10/100BASE-TX, Modbus TCP
• F3LE12-0T: Dual-port Ethernet, ring topology support, PROFINET compatible

Power Supply Modules

• F3PU20-0S: 20W power supply module, 24VDC input, FCN/FCJ chassis
• F3PU30-0S: 30W redundant power supply, dual-feed input, hot-swap capable

Quality Control for the STARDOM FCN/FCJ Range

The SB401-50 S1 and related FCN/FCJ backplane modules undergo a structured multi-stage inspection protocol at DriveKNMS. Each unit is subject to: visual inspection of backplane connector pins and PCB surface for corrosion, cold-solder joints, or physical damage; functional bus communication testing using a live FCN chassis test bench to verify node enumeration and data throughput at rated 50-node capacity; isolation resistance testing between bus signal lines and chassis ground; and firmware version verification against Yokogawa's published compatibility matrix for FCN/FCJ rack generations.
