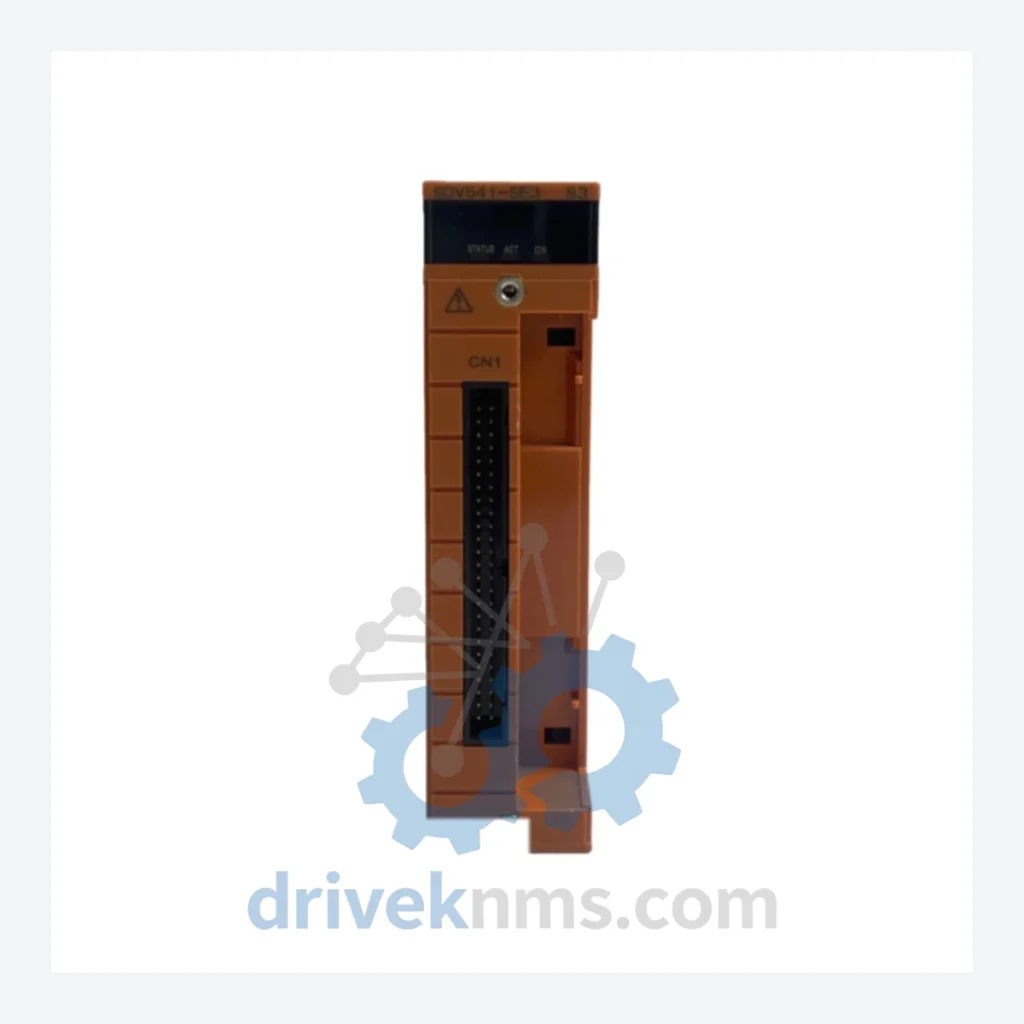

Yokogawa SDV541-SE3 Digital Output Module – Obsolete CENTUM Spare Part

Technical Dossier

Product Details And Specifications

Yokogawa SDV541-SE3 Digital Output Module – Obsolete CENTUM Spare Part

When a digital output module fails inside a Yokogawa CENTUM CS 3000 or CENTUM VP distributed control system, the consequences extend far beyond a single I/O card. The entire process segment it governs — valve actuation, motor control, interlock execution — goes dark. For a mid-scale petrochemical or power generation facility, an unplanned DCS shutdown triggered by a single failed I/O module can cost between USD $500,000 and $3,000,000 per day in lost production, emergency engineering fees, and regulatory exposure. The SDV541-SE3 has been discontinued by Yokogawa. New production has ceased. The only path to restoring your system without a full platform migration is sourcing verified surplus stock from a specialist supplier.

DriveKNMS maintains a controlled inventory of the SDV541-SE3. This is not a commodity listing. Each unit passes a structured inspection protocol before it leaves our facility.

Technical Specifications

Note: Electrical parameters not confirmed from official documentation are intentionally omitted. Contact us for verified datasheet access.

Solving the Discontinued Hardware Crisis

The Yokogawa CENTUM CS 3000 platform was one of the most widely deployed DCS architectures in Asia-Pacific and the Middle East throughout the 1990s and 2000s. Thousands of facilities — refineries, LNG terminals, chemical plants, and utility stations — built their process control infrastructure around it. Yokogawa's transition to CENTUM VP and subsequently to CENTUM VP R6 left a large installed base of CS 3000 hardware without a forward-compatible I/O path.

The SDV541-SE3 is a field-proven digital output module that interfaces directly with the CS 3000 and early VP node units. It requires no firmware reconfiguration, no re-engineering of the field wiring, and no changes to the control strategy. When this module fails, the only alternatives are: source a verified spare, or commit to a platform migration that typically costs between USD $2,000,000 and $8,000,000 depending on system scale, engineering hours, and process downtime.

For plant managers operating under capital expenditure constraints, the calculus is straightforward. A single verified SDV541-SE3 spare, held in a controlled storage environment, can defer that migration decision by 5 to 10 years. The module's solid-state output design means that with proper storage — controlled humidity, anti-static packaging, and periodic functional verification — shelf life degradation is minimal. The real risk is not the hardware; it is the absence of it when a failure occurs at 2:00 AM during peak production.

Facilities that have implemented a structured legacy spare parts program for their CENTUM systems report significantly lower unplanned downtime rates compared to those relying on reactive procurement. The SDV541-SE3 is a high-criticality module: it sits in the direct control path between the DCS and field actuators. There is no graceful degradation when it fails. The loop goes to its fail-safe state, and the process stops.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all obsolete DCS modules before shipment. This process is designed specifically for legacy hardware where OEM support is no longer available.

Step 1 – Visual and Mechanical Inspection: Full board-level examination for physical damage, connector pin integrity, and PCB delamination. Any unit with compromised connectors is rejected.

Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy I/O modules stored beyond 10 years. Each unit is assessed for capacitor bulging, leakage residue, and ESR deviation. Units with suspect capacitors are either reconditioned by qualified technicians or removed from inventory.

Step 3 – Firmware and Label Verification: The SE3 suffix designates a specific hardware revision. We verify that the physical revision markings, firmware labels, and board revision codes match the declared specification. Mismatched revisions are quarantined and disclosed.

Step 4 – Pin and Contact Corrosion Check: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned using approved contact restoration procedures. Units with structural pin damage are not sold.

Step 5 – Functional Verification (where test equipment permits): Where compatible test rigs are available, output channel continuity and switching response are verified. Test results are documented and available upon request.

Key Features for System Maintenance

The SDV541-SE3 is a drop-in replacement for failed units within the same CENTUM CS 3000 or compatible VP node configuration. No re-engineering of the control strategy is required. Field wiring connections remain unchanged. The module slots into the existing node unit and is recognized by the DCS without manual reconfiguration in standard deployment scenarios.

This matters operationally. Emergency maintenance windows in process industries are measured in hours, not days. A replacement module that requires firmware loading, address reconfiguration, or field wiring changes adds hours of engineering time to an already critical situation. The SDV541-SE3 eliminates that risk. It restores the output channel to service with the same functional behavior as the original unit, without triggering a broader system recertification requirement.

For facilities with active process safety management (PSM) programs, maintaining like-for-like hardware replacement capability is not merely a cost consideration — it is a compliance requirement. Substituting a non-identical module may require a Management of Change (MOC) review, process hazard analysis updates, and revalidation of safety instrumented functions. The SDV541-SE3 avoids all of that.

FAQ

Q: What warranty applies to an obsolete module like the SDV541-SE3?
A: DriveKNMS provides a 90-day functional warranty on all inspected surplus modules. This covers failure under normal operating conditions consistent with the module's rated environment. It does not cover damage resulting from incorrect installation or operation outside rated parameters.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from decommissioned industrial facilities or verified surplus distributors with documented chain of custody. Physical markings, board revision codes, and component configurations are cross-referenced against known-good reference units. We do not source from unverified secondary markets.

Q: Should I purchase more than one unit?
A: For any CENTUM CS 3000 installation with more than one SDV541-SE3 in service, holding a minimum of two spare units is a defensible risk management position. As global surplus inventory of this module continues to deplete, procurement lead times will increase and unit costs will rise. Facilities that have established a forward stock position consistently report lower total cost of ownership over a 5-year horizon compared to reactive procurement.

Q: Can you source additional units if I need more than you currently have in stock?
A: Yes. DriveKNMS maintains an active sourcing network for legacy Yokogawa hardware. Contact us with your quantity requirement and we will provide a sourcing timeline and availability assessment.

© 2026 DriveKNMS. Status: DRAFT
